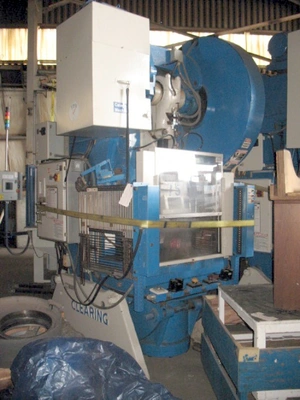

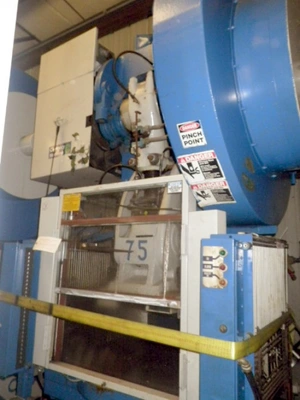

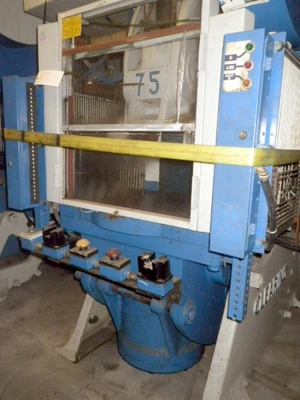

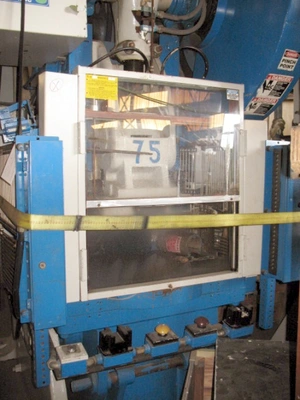

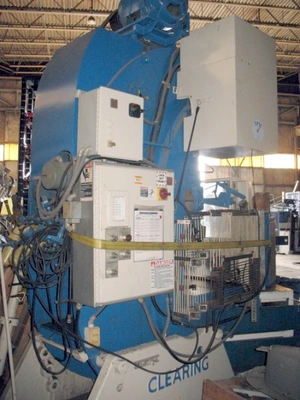

USED 1955 CLEARING 75

Capacity: 75.00 ton 735.50 kN
Speed: 1 - 40 SPM Variable
Ram / Slide Stroke: 4.00 in 101.60 mm
Ram / Slide Adjustment: 3.00 in 76.20 mm
Shut Height (Ram / Slide Down, Adjustment Up): 15.75 in 400.05 mm
Bed Width: 36.00 in 914.40 mm
Bed Depth: 24.00 in 609.60 mm
Ram / Slide Width: 17.00 in 431.80 mm
Ram / Slide Depth: 16.00 in 406.40 mm
Depth of Throat: 20.00 in 508.00 mm
Bolster Thickness: 36.00 in 914.40 mm
Bed Bolster Width: 36.00 in 914.40 mm
Bed Bolster Depth: 21.50 in 546.10 mm
Ram Bolster Width: 36.00 in 914.40 mm
Ram Bolster Depth: 21.50 in 546.10 mm
Floor to Bed Distance: 36.50 in 927.10 mm
Floor to Bolster Distance: 39.50 in 1003.30 mm
Motor Power: 7.50 HP 5.63 kW
Clutch: Air
Power: 3 Phase, 50 – 60 Hz, 230 – 460 Volts
Additional: Air clutch and counter balance, palm button controls
