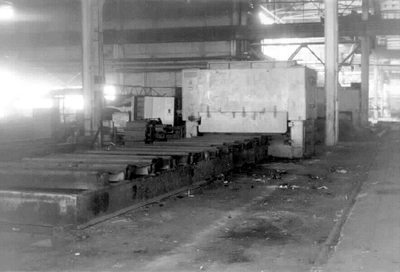

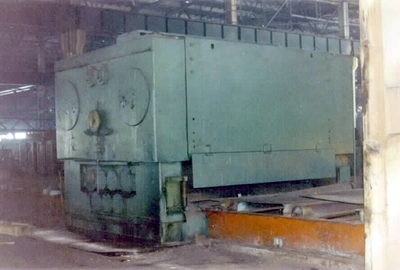

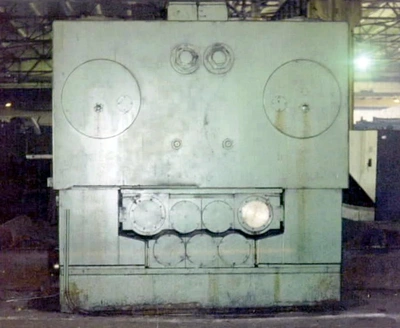

USED 1980 SKET UBR 40 X 3150
Overview
Specs
Maximum Width: 126.00 in 3200.4 mm
Straightening Speed: 29.53 ft/min 9 m/min
Useful Length of Rolls: 128.00 in 3251.2 mm
Maximum Thickness of Plate With Maximum Plate Width: 1.90 in 48.26 mm
Minimum Plate Thickness: 0.25 in 6.35 mm
Roller Diameter: 13.40 in 340.36 mm
Eccentric Roller Diameter: 14.00 in 355.6 mm
Inlet and Outlet Feed Rollers Diameter: 15.00 in 381 mm
Number of Straightening Rollers: 7
Number of Driven Straightening Rollers: 5
Number of Backup Rollers: 15 (5 Sets of 3)
Backup Roller Diameter: 13.00 in 330.2 mm
Main Motor Power: 147.00 HP 109.62 kW
Vertical Roll Adjustment Motor Power: 30.00 HP 22.37 kW
Power: Existing
Machine Length: 396.00 in 10058.4 mm
Machine Width: 144.00 in 3657.6 mm
Machine Height: 240.00 in 6096 mm
