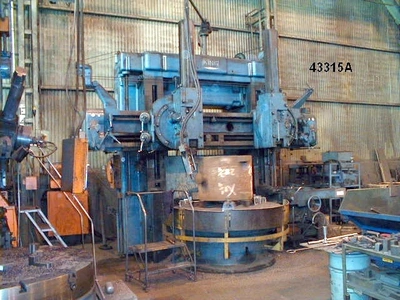

USED 1955 KING 72"

Table Diameter: 72.00 in 1828.80 mm
Swing: 77.00 in 1955.80 mm
Height Under Rail: 62.00 in 1574.80 mm
Table Speed: 1.85 - 60.7 Rpm 16 Steps
Chuck Type: Plain Table
X – Horizontal Saddle Travel: 43.00 in 1092.20 mm
Head 1 Type: Ram
Ram Size: 8.5 x 8 in 216 x 203 mm
X2 – Horizontal Saddle Travel: 43.00 in 1092.20 mm
Location: Left Hand Rail Head
Head 2 Type: Ram
Location: Right Hand Side Head
U – Horizontal Slide Travel: 40.00 in 1016.00 mm
Coolant: Yes
Additional: Swing listed above is below side head, swing above side head: 78 in (1981 mm), electric rail clamp, swivel rams on rail heads + / - 55 degrees, Timken roller bearing table, fine feed option, table capacity 15 ton - 11 ton from 0 to 61 rpm respectively
Machine Length: 216.00 in 5486.40 mm
Machine Width: 180.00 in 4572.00 mm
Machine Height: 186.00 in 4724.40 mm
