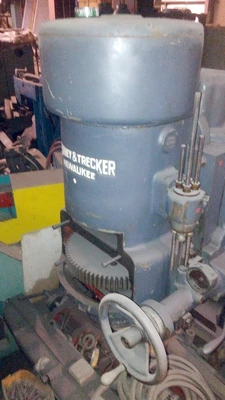

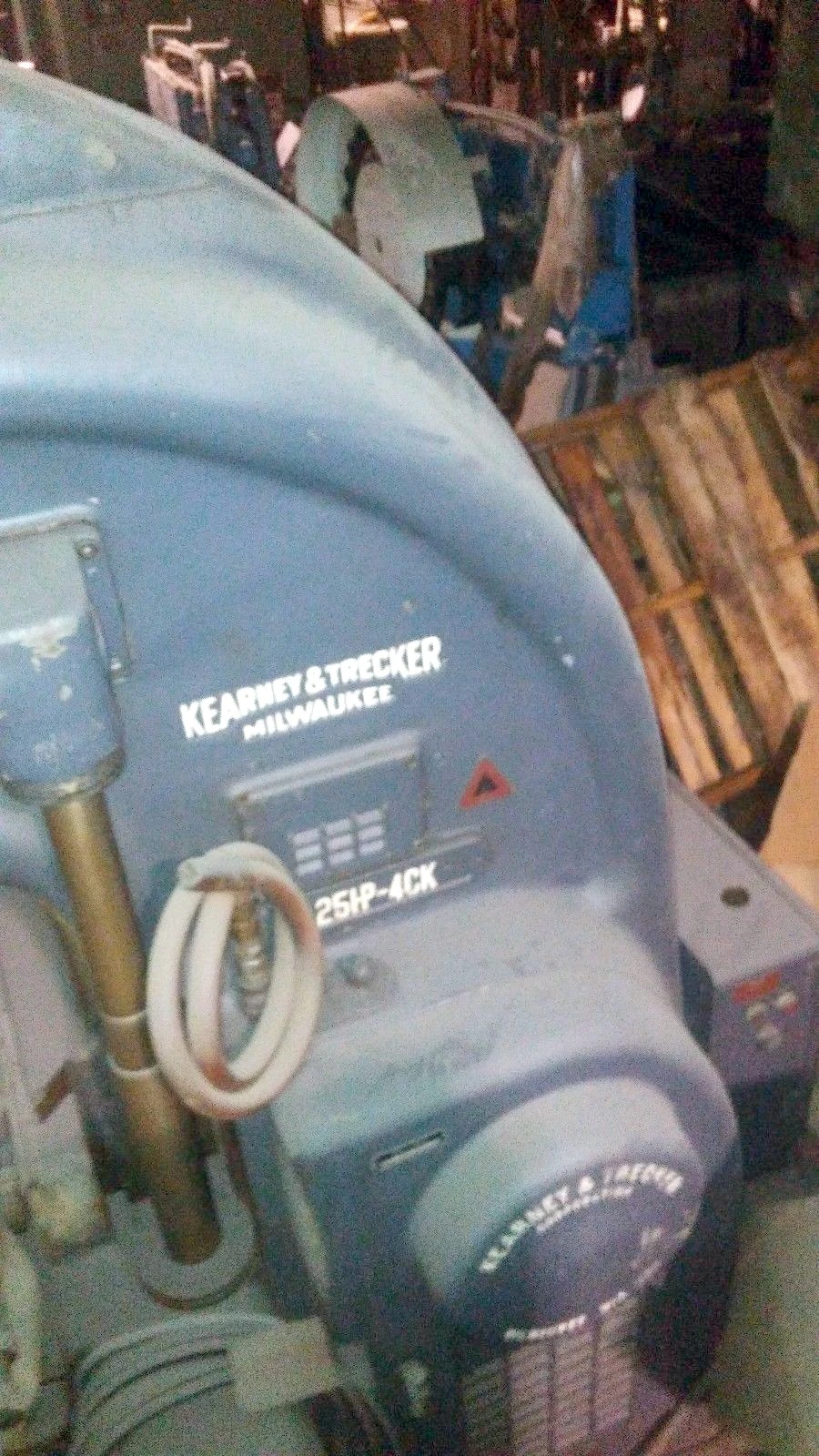

USED 1952 KEARNEY & TRECKER 4CK

Throat Depth: 17.75 in 450.85 mm
X-Axis - Table Longitudinal Travel: 42.00 in 1066.80 mm
Y-Axis - Saddle Cross Travel: 16.00 in 406.40 mm
Z-Axis - Knee Vertical Travel: 20.00 in 508.00 mm
Z-Axis - Spindle Head Vertical Travel: 4.00 in 101.60 mm
Table Width: 18.00 in 457.20 mm
Table Length: 90.00 in 2286.00 mm
Minimum Spindle Nose to Table: 0.00 in 0.00 mm
Maximum Spindle Nose to Table: 21.75 in 552.45 mm
Spindle Power: 25.00 hp 18.64 kW
Spindle Speed: 1730 RPM
Spindle Taper: #50 NSTD
Spindle Speed: 13 to 1300 RPM
Longitudinal Feed: 3/8 to 90 IPM
Cross Feed: 3/8 to 90 IPM
Vertical Feed: 3/16 to 45 IPM
Power Rapid Traverse, Long & Cross: 150 IPM
Power Rapid Traverse, Vertical: 75 IPM
Power: Power 3 Phase, 60 Hz, 220-440 Volts
Machine Length: 88.00 in 2235.20 mm
Machine Width: 102.00 in 2590.80 mm
Machine Height: 100.00 in 2540.00 mm
Machine Weight: 16000.00 lbs 7257.48 kg
