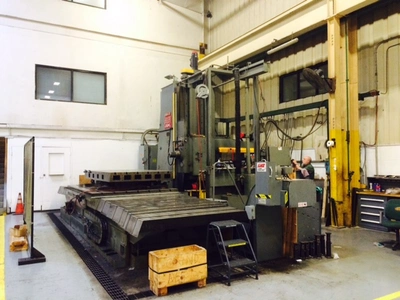

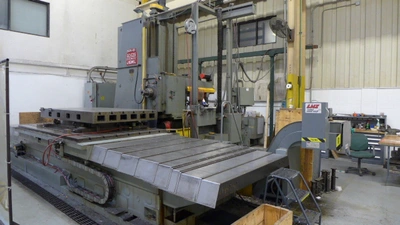

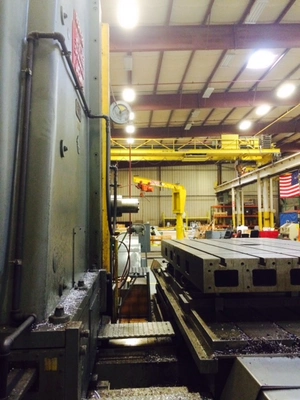

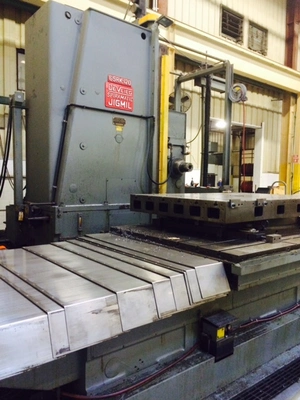

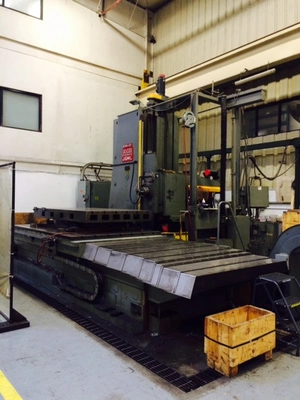

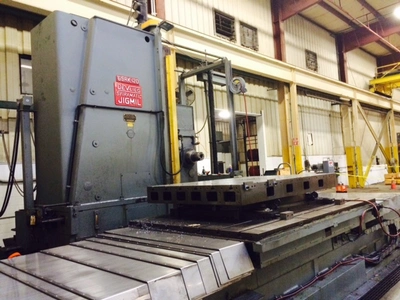

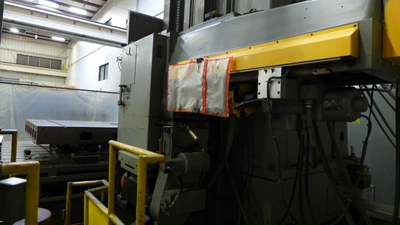

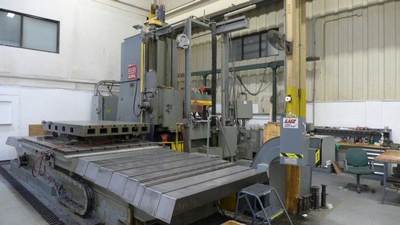

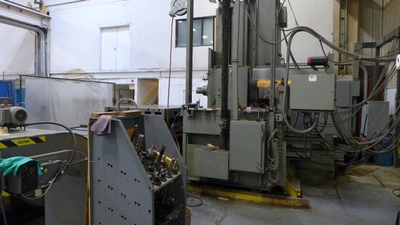

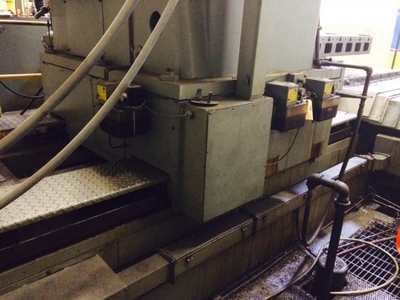

USED 1972 DEVLIEG 65RK120

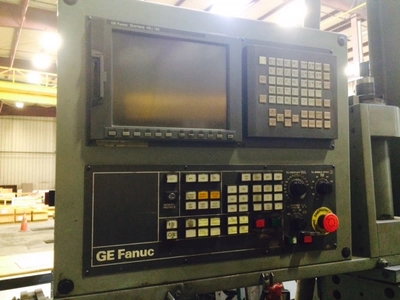

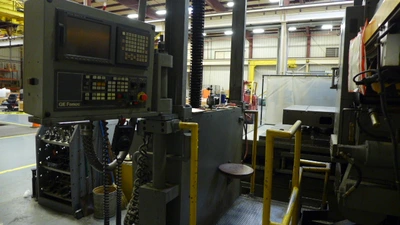

Control: GE Fanuc 16MB Full CNC
Spindle Taper: #50 NMTB
Spindle Diameter: 6.00 in 152.40 mm
Spindle Power: 50.00 hp 37.28 kW
Spindle Speed: 10 – 1000 RPM
Table Width: 50.00 in 1270.00 mm
Table Length: 120.00 in 3048.00 mm
X – Table Travel: 120.00 in 3048.00 mm
X – Table Feed: 0 – 200 IPM
Y – Head Vertical Travel: 80.00 in 2032.00 mm
Y – Head Vertical Feed: 0 – 200 IPM
Z – Spindle Out: 36.00 in 914.40 mm
Z – Spindle Feed: 0 – 150 IPM
W – Saddle Travel: 48.00 in 1219.20 mm
W – Saddle Feed: 0 – 150 IPM

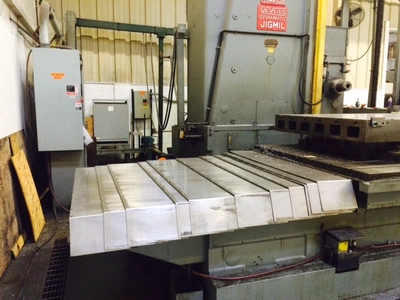

Additional: Power draw rod, auxiliary 60” x 96” (1524 x 2438 mm) Giddings & Lewis Air Lift rotary table, telescoping steel way covers on X axis
Machine Length: 300.00 in 7620.00 mm
Machine Width: 192.00 in 4876.80 mm
Machine Weight: 76000.00 lbs 34473.02 kg
