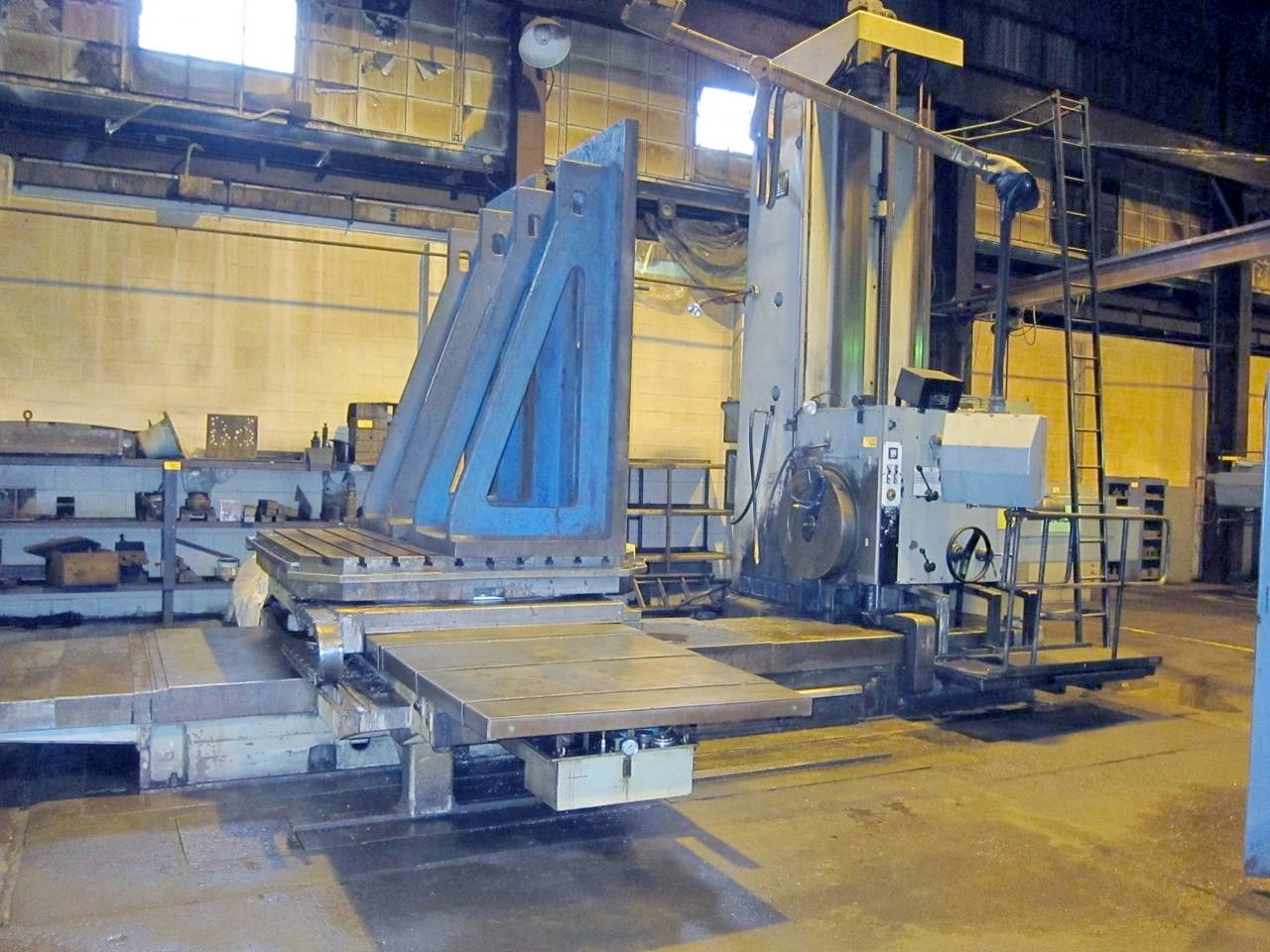

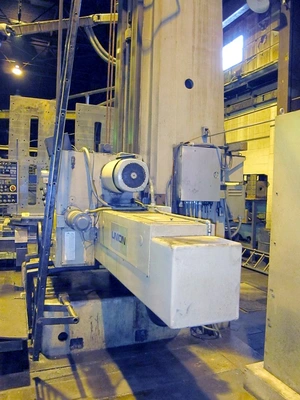

USED 1980 UNION BFT 130/6

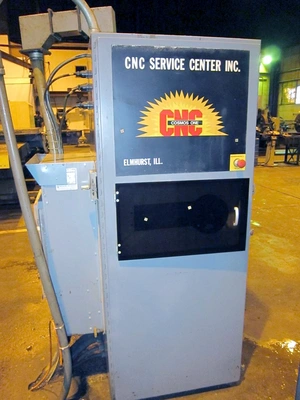

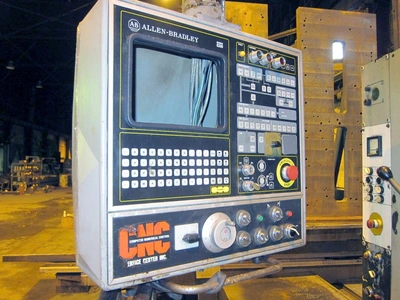

Control: New Fanuc full-contouring CNC
U-Axis Facing Head Travel: 12.5 in 152.40 mm
X – Axis Table Travel: 108.27 in 1778.00 mm
Y – Axis Vertical Travel: 98.43 in 1828.80 mm
Z – Axis Saddle Travel: 98.43 in 914.40 mm
W – Spindle Travel: 36.00 in 1270.00 mm
B – Table Rotation: 360,000 position
Rapid Travel Speed: 200.00 in/min 5080.00 mm/min
Table Width: 78.74 in 2000.00 mm
Table Length: 70.87 in 1800.10 mm
Table Capacity: 20000 lbs 9090.91 kg
Rotary Table: 70.87 in (1,800 mm) x 78.74 in (2,000 mm), 360,000 positions
Spindle Diameter: 5.13 in 130.18 mm
Spindle Taper: ISO 50
Spindle Power: 63 HP continuous
Spindle Speed: 6.3 – 1,200 RPM infinitely variable
Tool Changer: None
Ways: Hardened
Chip Conveyor: None
Coolant: Yes
Way Covers: Metal telescoping Steelflex way covers
Power: 3 ph / 60 Hz / 460 V, existing

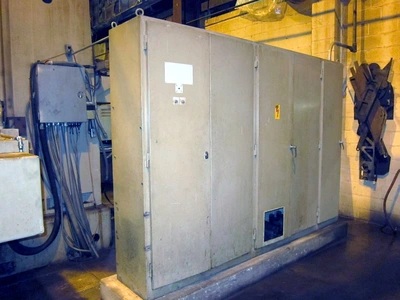

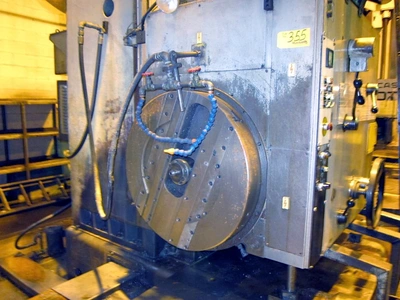

Additional: Power locks, outriggers, new Fanuc servo motors and drives, new spindle drive, new magnetics cabinet, built-in facing head, heavy-duty swiveling right-angle head, spindle support extension
Machine Length: 240.00 in 6096.00 mm
Machine Width: 180.00 in 4572.00 mm
Machine Height: 180.00 in 4572.00 mm
Machine Weight: 81400 lbs 37000 kg
