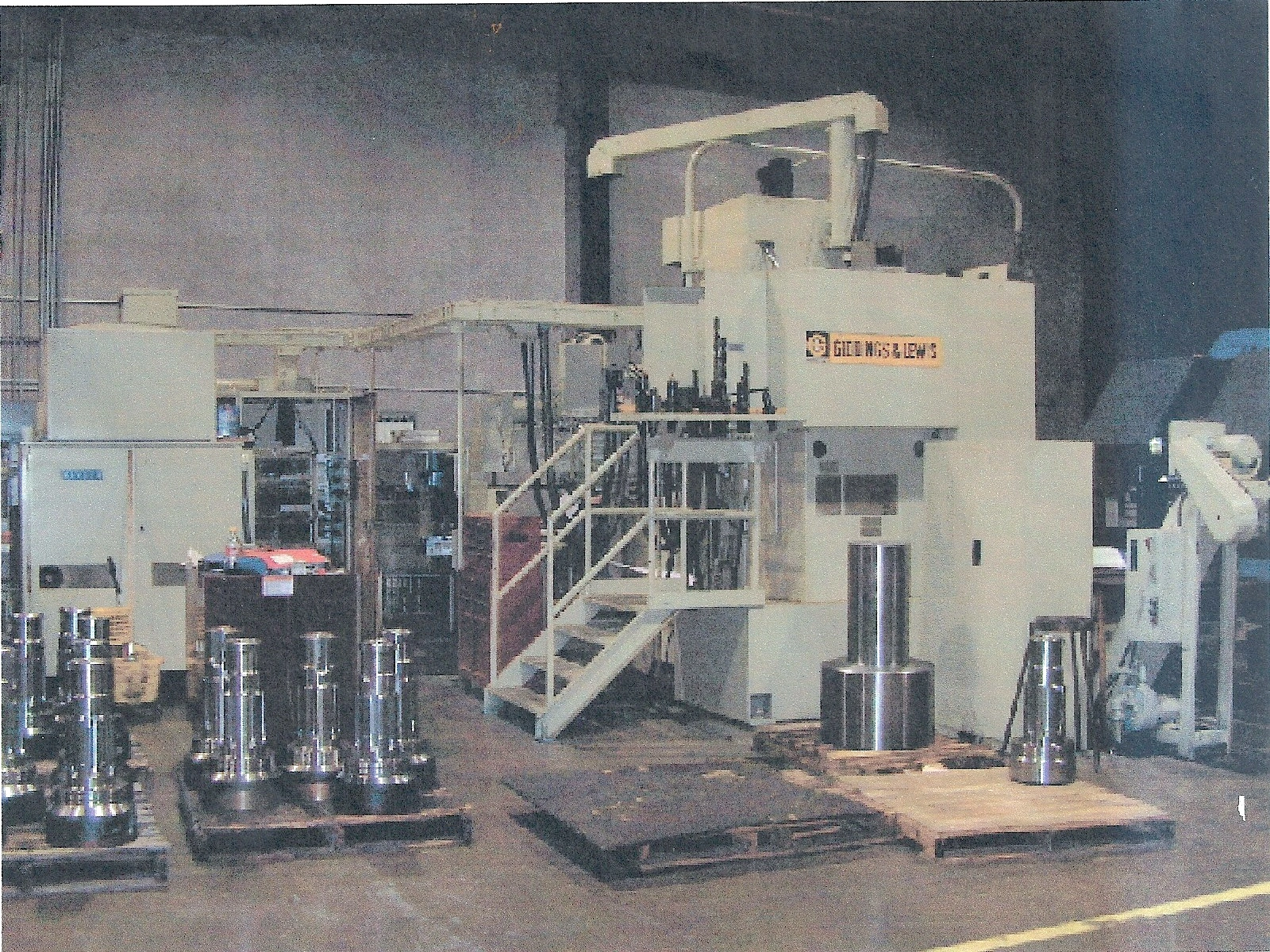

USED 1983 GIDDINGS & LEWIS PC-50

Control: G&L CNC 803/4-M or New CNC
Spindle Diameter: 5.00 in 127.00 mm
X – Horizontal Table Travel: 96.00 in 2438.40 mm
Y – Vertical Headstock Travel: 60.00 in 1524.00 mm
Z – Spindle Travel: 36.00 in 914.40 mm
W – Saddle Travel: 29.00 in 736.60 mm
Table Width: 60.00 in 1524.00 mm
Table Length: 96.00 in 2438.40 mm
Spindle Taper: #50 ANS
Spindle Power: 30.00 HP 22.50 kW
Spindle Speed: 25-1120 RPM Infinitely Variable
Spindle Drawbar: Collet Type Power Drawbar
Tool Changer / Number Of Tools: Optional, 40 Tools
Coolant: Flood System
Power: 3 ph / 60 Hz / 230 - 480 V Existing
Additional: Ball screws all axes, non-metallic way liners, bed length 72 inch (1829 mm) 2-way main bed with four outboard supports
