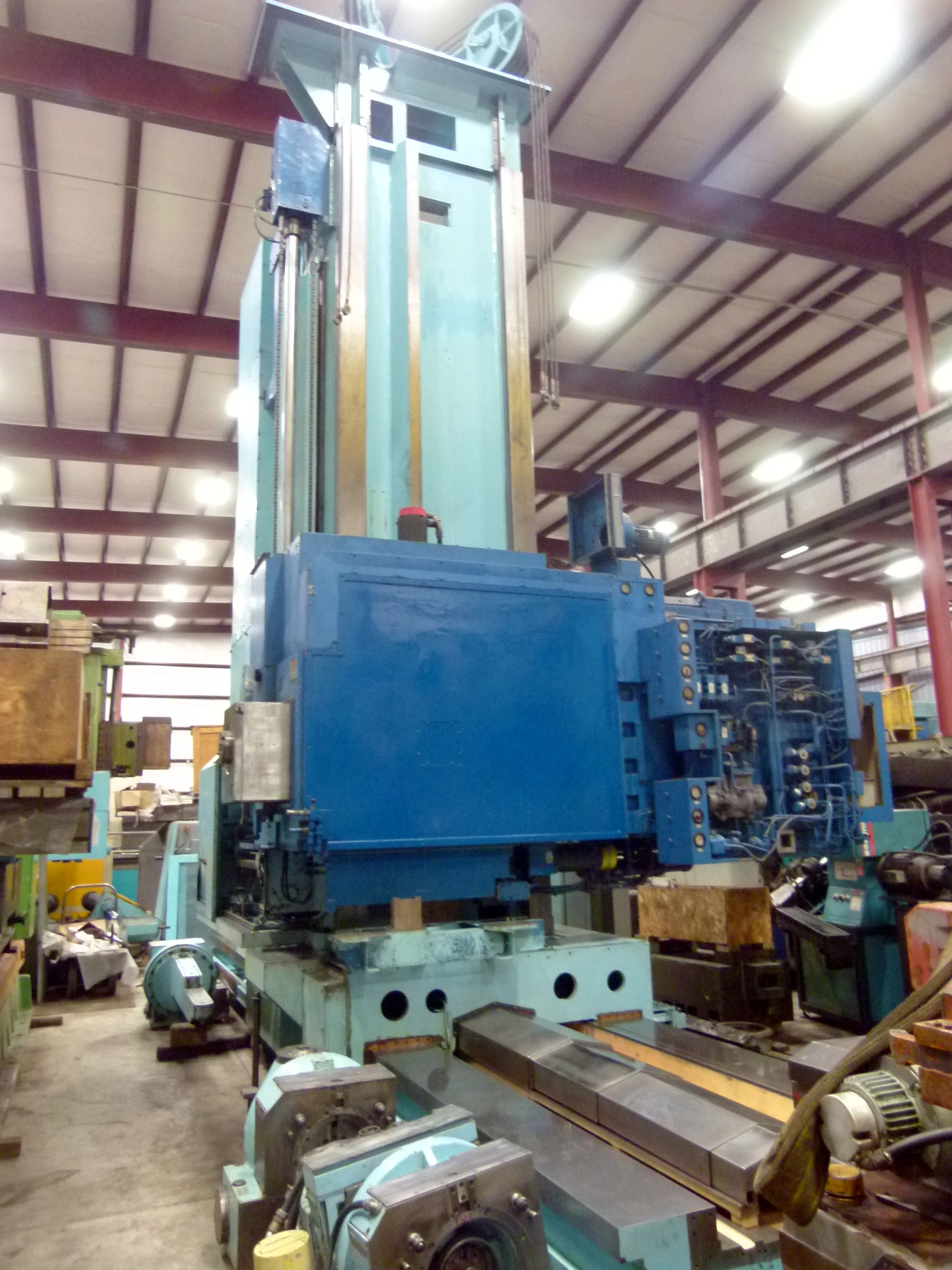

USED 1984 TOSHIBA BFD-180

Control: GE Fanuc Series 15m CNC Installed in 1999
Spindle Diameter: 7.09 in 180.00 mm
X – Horizontal Column Travel: 244.09 in 6200.00 mm
Y – Vertical Headstock Travel: 125.98 in 3200.00 mm
Z – Spindle Travel: 27.56 in 700.00 mm
W – Ram Travel(Alternate Column Cross Travel): 35.43 in 900.00 mm
Floor Plate: Optional
Spindle Taper: ISO 60
Spindle Power: 100.00 HP 74.57 kW
Spindle Speed: 10 - 2000 RPM Infinitely Variable
Spindle Drawbar: Power
Ways: Full Hydrostatic Bed Ways, Hardened Column Ways
Coolant: Yes - Through The Spindle
Way Covers: Stainless Steel Telescopic
Power: Existing
Additional: Head changer with 7 heads: full cnc 5 axis programmable head, heavy duty right angle head, long reach right angle head, thin offset right angle head, long semi offset right angle head, straight spindle extension, speed up attachment, height shown is above floor over total height 360 in (9150 mm), optional angle plate 112 in (2845 mm) high x 162 in (4115 mm) wide - other sizes available upon request
Machine Length: 453.00 in 11500.00 mm
Machine Width: 473.00 in 12000.00 mm
Machine Height: 256.00 in 6500.00 mm
