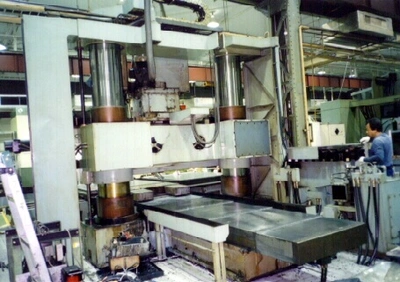

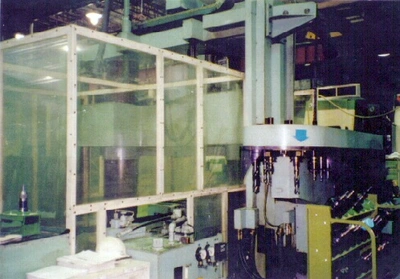

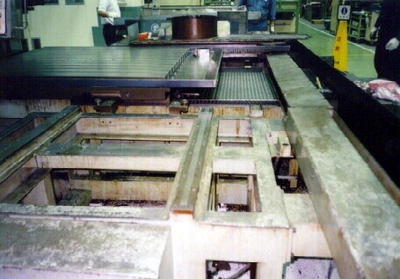

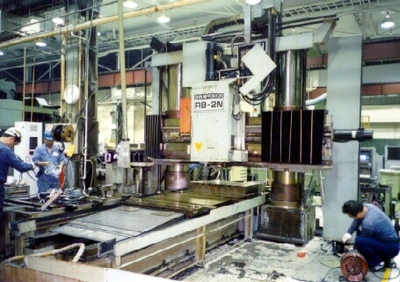

USED 1980 S.N.K. RB-2N

Control: New Fanuc or optional customer choice CNC
X – Table Travel: 108.25 in 2749.55 mm
Y – Saddle Travel: 63.00 in 1600.2 mm
Z – Spindle Travel: 15.70 in 398.78 mm
W – Cross Rail Travel: 40.00 in 1016 mm
Rapid Travel Speed: 400 / 200 in./min 10,000 / 5,100 mm./min
Distance Between Columns: 67.00 in 1701.8 mm
Distance from Spindle to Table: 44.00 in 1117.6 mm
Spindle Power: 24 / 30 HP 18 / 22 kW
Spindle Speed: 30 - 2000 RPM Infinitely Variable
Spindle Taper: 50
Table Width: 64.50 in 1638.3 mm
Table Length: 60.00 in 1524 mm
Tool Changer / Number of Tools: Yes – 32 Tools
Way Covers: Metal Telescopic
Additional: Dual pallet with automatic pallet changer, main table size 48 x 91 inch (1,220 x 2,310 mm), distance from spindle to main table top 51 inches (1,300mm), spindle quill diameter 7.25 inches (185 mm), new servo motors and drives.
