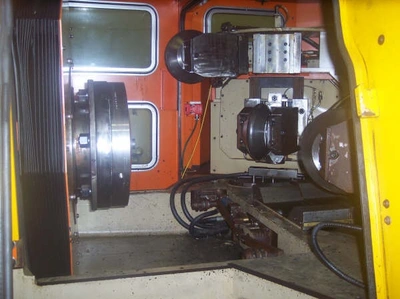

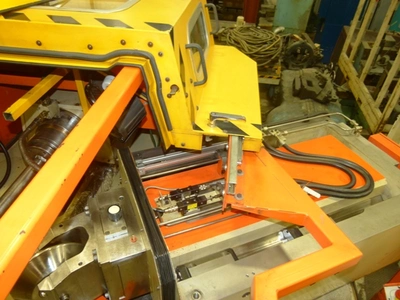

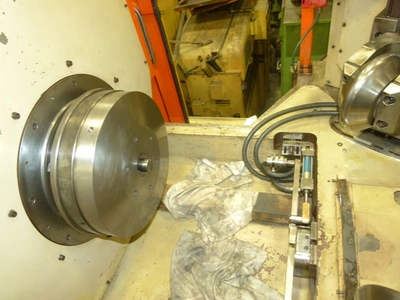

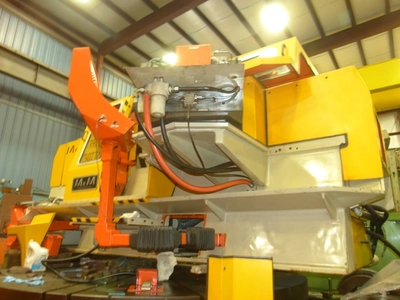

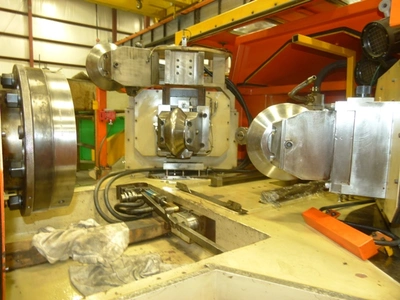

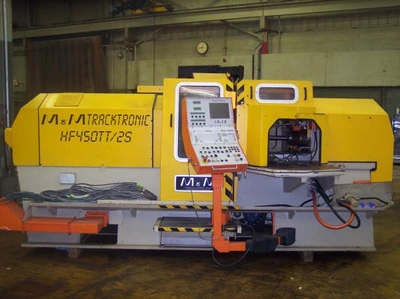

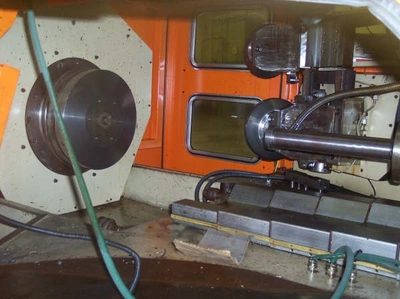

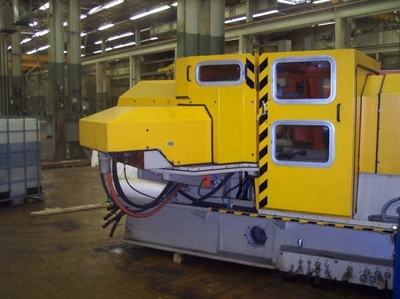

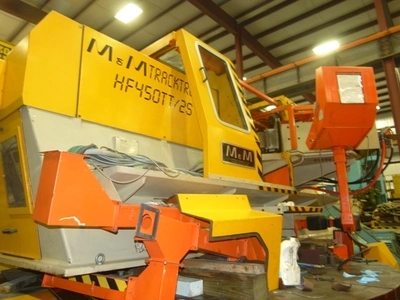

USED 2000 M&M HF450TT/2S

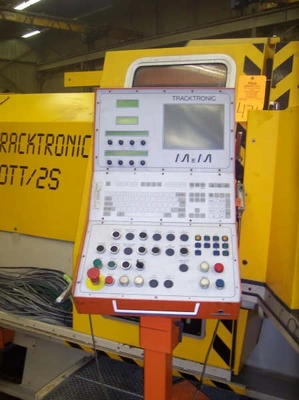

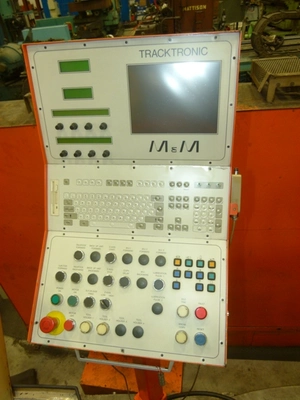

Control: Tractronic
Z-Axis Center Height: 16.50 in 419.10 mm
Distance Between Centers: 47.00 in 1200.00 mm
Z -Axis Tooling Adapter: DIN 55027 / SIZE 15
Z-Axis Drive Power: 107.00 hp 80.00 kW
Z -Axis Drive Zf Reduction Rate: 1:4
Z-Axis Drive Speed: 0 - 1000 RPM Stepless Variable
X - Slide Travel: 19.70 in 500.00 mm
X - Slide Force: 22480.00 lb/ft 100.00 kN
X - Slide Velocity: 15.75 in/min 400.00 mm/min
Y - Slide Travel: 10.83 in 275.00 mm
Y - Slide Force: 22480.00 lbf 100.00 kN
Y - Slide Velocity: 15.75 in 400.00 mm/min

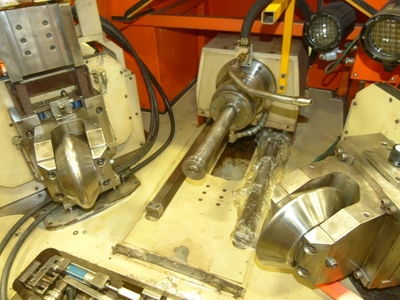

Tailstock Travel: 23.60 in 600.00 mm
Tailstock Clamping Force: 18000.00 lbf 80.00 kN
Ejector Travel: 17.72 in 450.00 mm
Motor Power: 204.00 hp 152.00 kW
Coolant: Yes

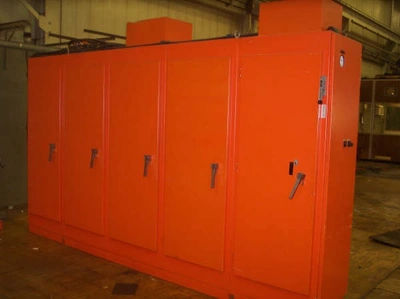

Power: 3 PH / 60 Hz / 480 V existing, control voltage 110 volt / 24 volt DC
