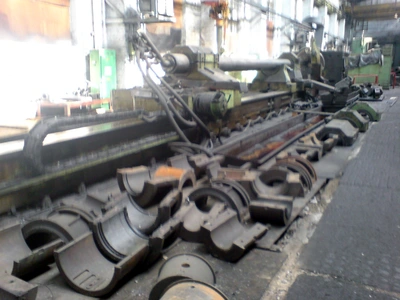

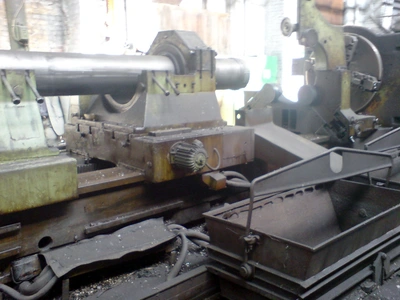

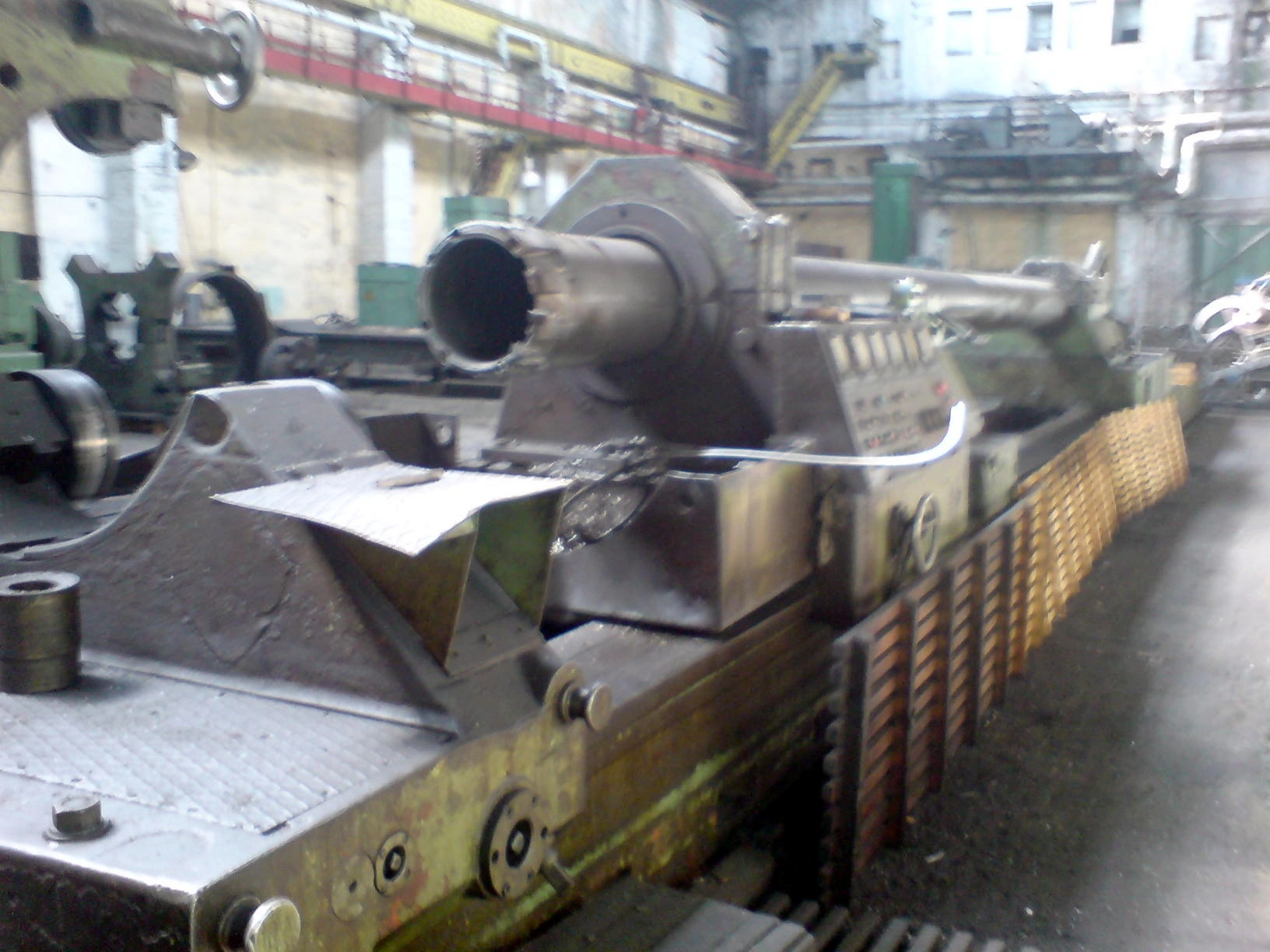

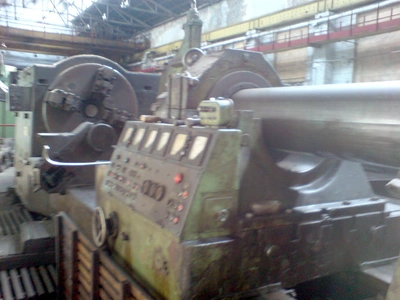

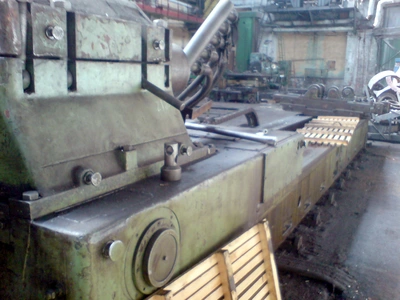

USED KRAMATORSK KJ1910

Swing Over Bed: 63.00 in 1600.00 mm
Maximum Workpiece Length: 248.00 in 6300.00 mm
Maximum Drilling Diameter: 39.37 in 990.60 mm
Spindle Power: 165.00 hp 125.00 kW
Spindle Speed: 1 - 320 RPM Infinitely Variable
Power: Existing
Additional: Chuck workholding range: 8"- 49.2" inch (200 - 1250 mm) diameter, workpiece weight capacity using two open roll supports: 132,000 lbs (60,000 kg), size range in closed backrest: 8"- 31.5" inch (200 - 800 mm), size range in open backrest: 24.8"-54.3" inch (630 - 1380 mm), pressure head speed range: .125 - 500 infinitely variable, pressure head spindle bore diameter: 7 inch ( 182 mm), pressure head motor power: 100 HP (75 kW) DC, headstock speed ranges: 3, pressure head speed ranges: 2
Machine Length: 903.00 in 22950.00 mm
Machine Width: 172.00 in 4375.00 mm
Machine Height: 105.00 in 2670.00 mm
