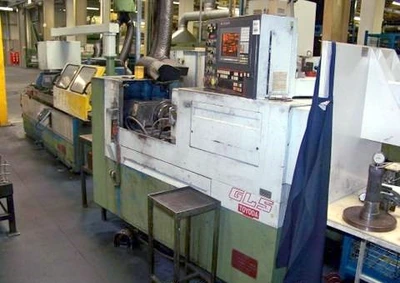

USED 1993 TOYODA GL-5A-32

Control: GC32 CNC
Wheel OD: 24.00 in 609.60 mm
Wheel ID: 10.00 in 254.00 mm
Wheel Width Maximum: 4.92 in 124.97 mm
Distance Between Centers: 24.80 in 629.92 mm
Swing Over Table: 12.60 in 320.04 mm
Maximum Workpiece Weight: 330.00 lbs 149.69 kg
Maximum Grinding Diameter: 8.60 in 218.44 mm
Wheel Spindle Power: 15.00 hp 11.19 kW
Wheel Spindle Speed: 11800.00 ft/min 3596.64 m/min
Wheel Dresser: Diamond Roll Dresser
Wheel Head Angle: Fixed Angle - 30 Degrees From Workhead Rotational Axis
Work Head Spindle Taper: 4 MT
Work Head Spindle Speed: 16 - 500 RPM Infinitely Variable
Foot Stock Quill Taper: 4 MT
Foot Stock Quill Travel: 2.36 in 59.94 mm
Coolant: Yes
Filtration System: RO 4305
Power: Existing
Additional: SBS model SB-4500 wheel balancer, Torit Dryflo mist collector, rear mounted flagging device
Machine Length: 120.00 in 3048.00 mm
Machine Width: 128.00 in 3251.20 mm
Machine Height: 84.00 in 2133.60 mm
