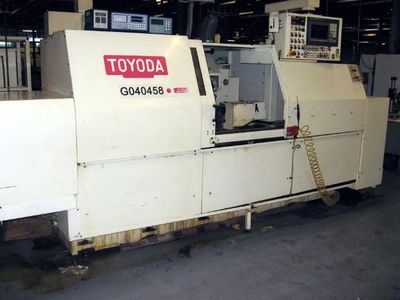

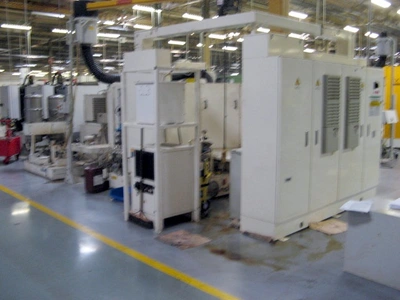

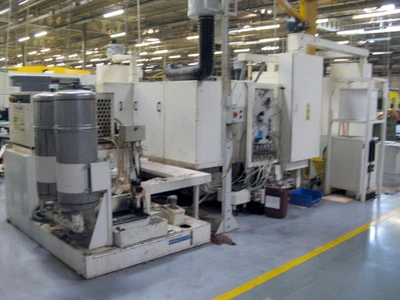

USED 1999 TOYODA GL6P-100

Maximum Grinding Diameter: 11.81 in 300.00 mm
Distance Between Centers: 39.37 in 1000.00 mm
Maximum Workpiece Weight: 660 lbs 300 kg
Wheel Width Maximum: 6.30 in 160.00 mm
Wheel OD Diameter: 20.08 in 510.00 mm
Wheel ID: 12.00 in 304.80 mm
Wheelhead Angle: 90 Degrees
Wheel Spindle Power: 14.76 /20 HP 11 / 15 kW
Wheel Spindle Speed: 147 ft/sec (45 m/sec)
Table Travel: 54.37 in. 1381.00 mm.
Workhead Power: 2.00 HP 1.50 kW
Workhead Speed: 32-630 RPM Infinitely Variable
Coolant: Yes, 350 Liter Capacity
Additional: Gauging marposs e20n and e5n, wheel balancing marposs e78, swing over table 15.75 in. (400mm.), Workhead center #5 mt, footstock center #5 mt, wheelhead and table rapid feedrate 590 in./Min. (15000 mm./Min/)
Machine Length: 153.54 in 3899.92 mm
Machine Width: 173.23 in 4400.04 mm
