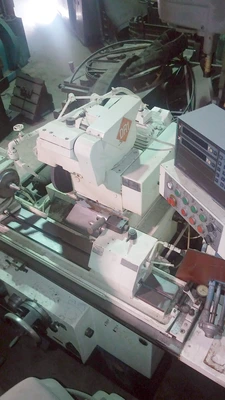

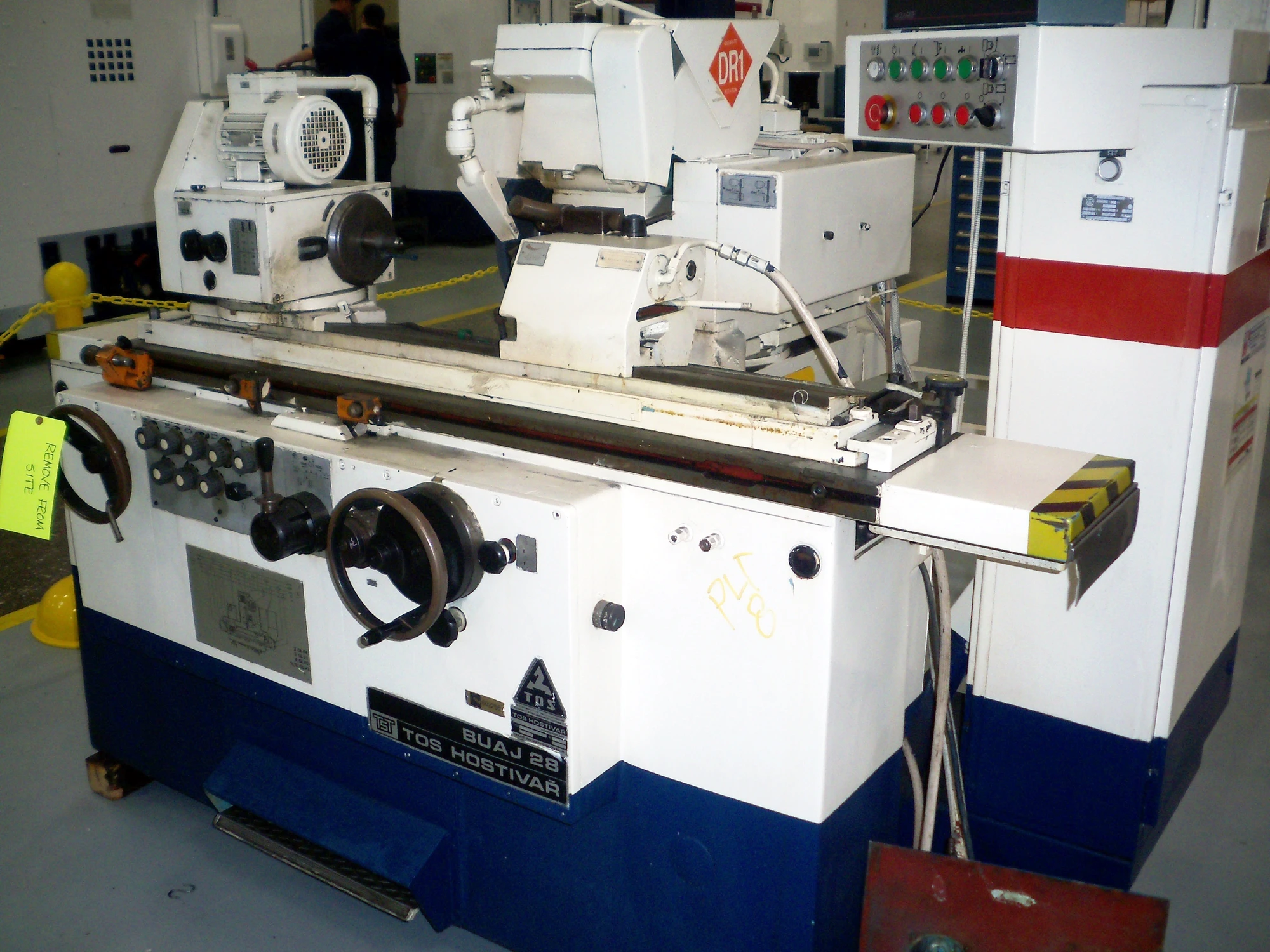

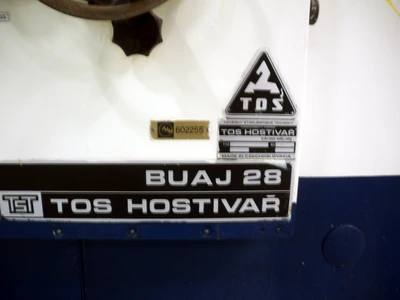

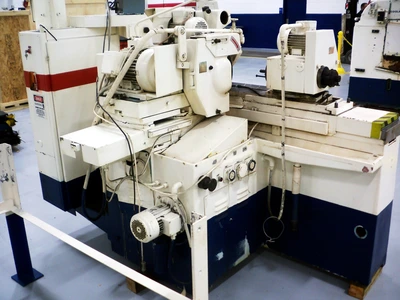

USED 1990 TOS HOSTIVAR BUAJ 28

Maximum Grinding Diameter: 10.50 in 268.00 mm
Maximum Grinding Length: 24.80 in 630.00 mm
Distance Between Centers: 24.80 in 630.00 mm
Maximum Workpiece Weight: 264.55 lbs 120.00 kg
Maximum Wheel Width: 2.00 in 50.80 mm
Wheel Outside Diameter: 15.75 in 400.00 mm
Wheel Width: 1.57 in 40.00 mm
Wheel Inside Diameter: 5.00 in 127.00 mm
Wheelhead Angle: Adjustable
Wheel Spindle Power: 12.47 HP 9.30 kW
Wheel Spindle Speed: 2040 RPM or 2560 RPM
Workhead Power: 0.75 HP 0.56 KW
Workhead Speed: 22.4 – 710 RPM
Power: Existing
Machine Length: 114.17 in 2900.00 mm
Machine Width: 64.96 in 1650.00 mm
Machine Height: 59.06 in 1500.00 mm
