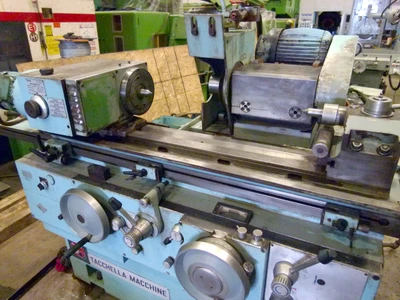

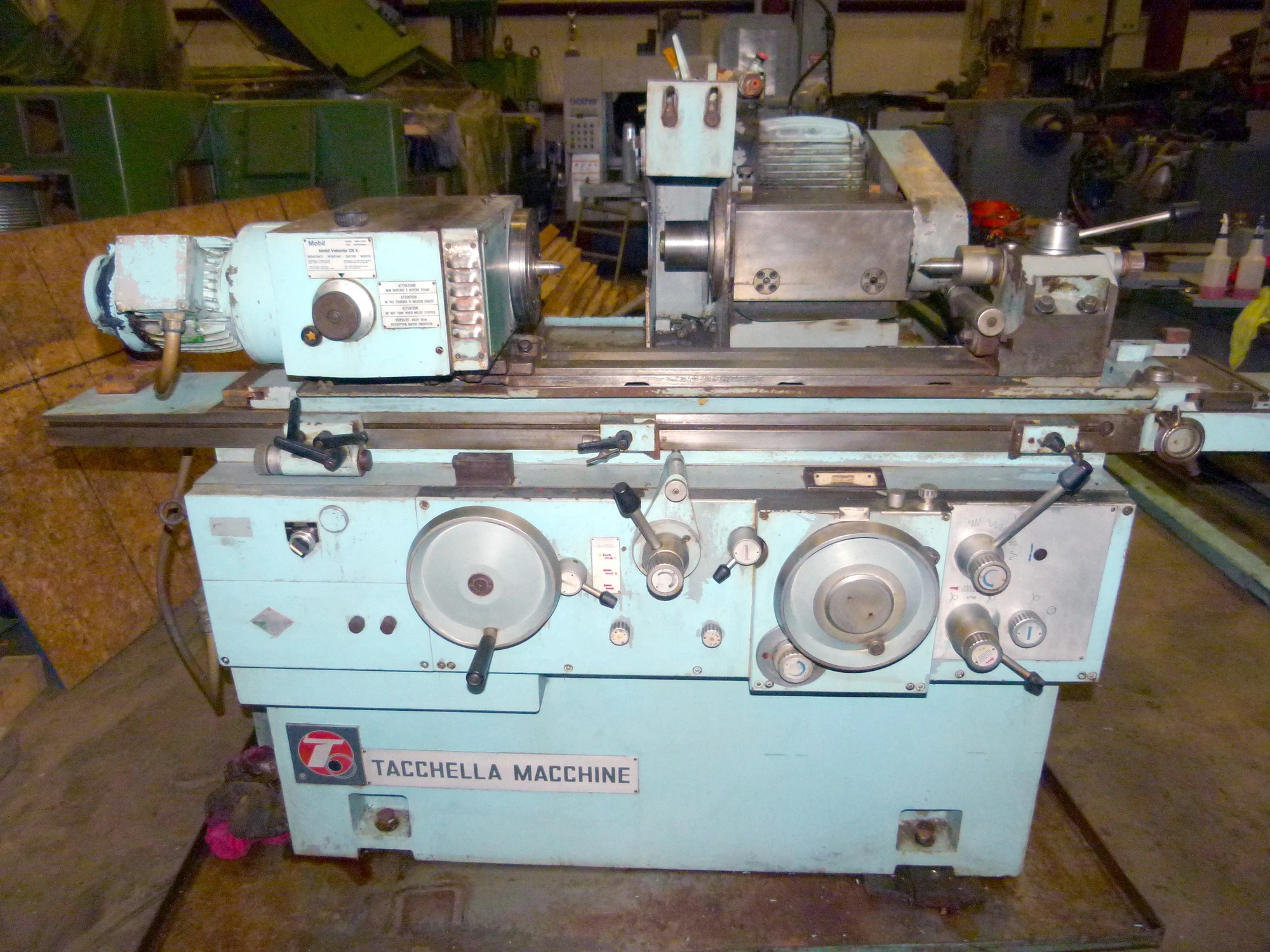

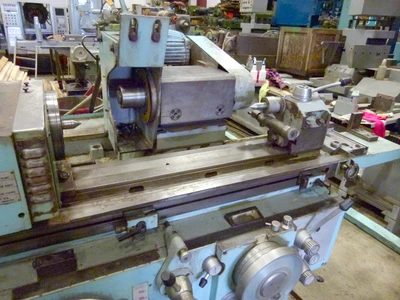

USED 1990 TACCHELLA 612UN

Maximum Grinding Diameter: 10.00 in 250.00 mm
Maximum Grinding Length: 24.80 in 630.00 mm
Distance Between Centers: 24.80 in 630.00 mm
Maximum Workpiece Weight: 250.00 lbs 115.00 kg
Wheel Width Maximum: 1.50 in 40.00 mm
Wheel Outside Diameter: 14.00 in 360.00 mm
Wheel Width: 1.25 in 32.00 mm
Wheel Inside Diameter: 5.00 in 125.00 mm
Wheelhead Angle: Fixed 90o
Wheel Spindle Power: 5.50 hp 4.00 kW
Wheel Spindle Speed: 2000 RPM
Workhead Power: 0.50 hp 0.37 kW
Workhead Speed: Variable
Power: 3 Phase, 60 Hz, 440 Volt
Machine Length: 96.00 in 2438.40 mm
Machine Width: 72.00 in 1828.80 mm
Machine Height: 54.00 in 1371.60 mm
Additional: Coolant filtration, automatic lube, separate hydraulic unit
