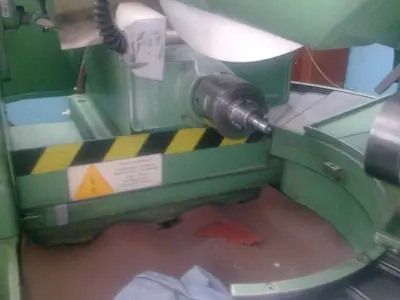

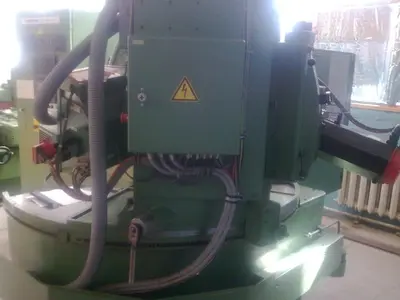

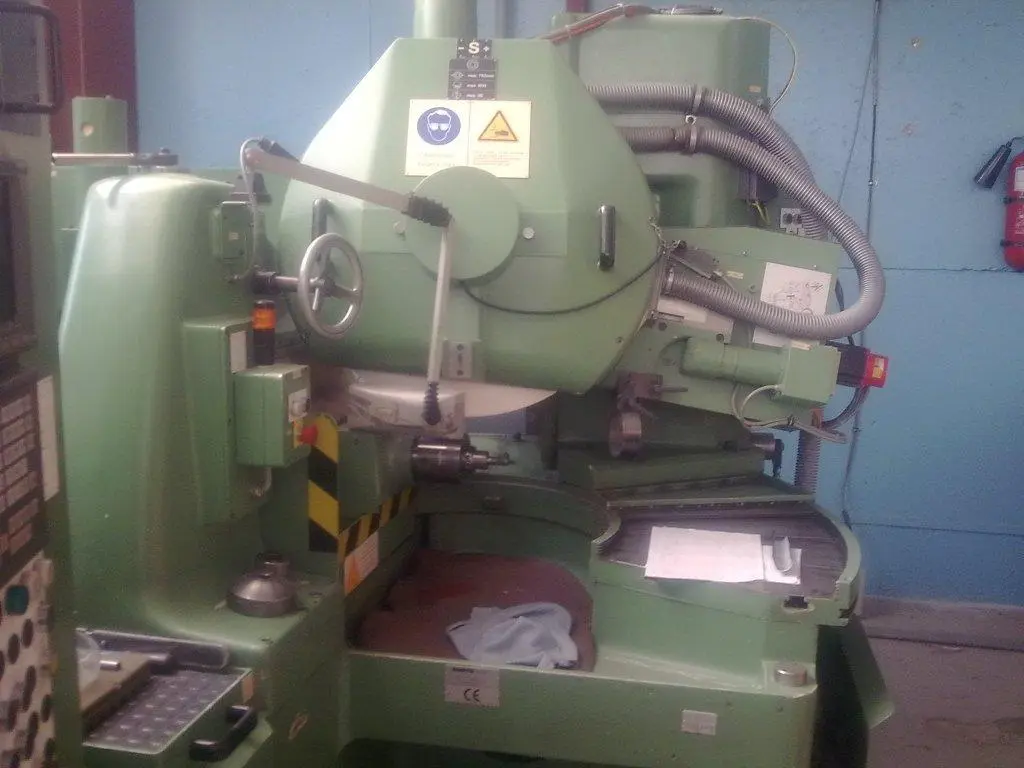

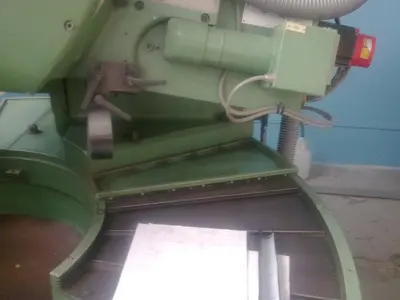

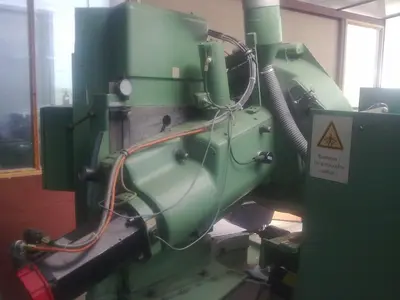

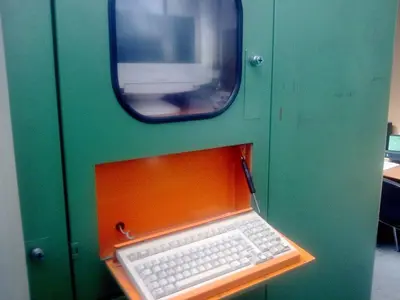

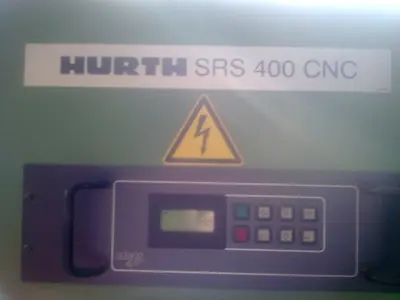

USED 1967 HURTH SRS-400

Maximum Workpiece Outside Diameter: 15.75 in 400.00 mm
Minimum Root Circle Diameter: 2.52 in 64.00 mm
Module Pitch Minimum: 0.02 in 0.60 mm
Module Pitch Maximum: 0.55 in 14.00 mm
Maximum Face Width (depending On Module): 2.95 in 75.00 mm
Maximum Number of Teeth: 300
Minimum Number of Teeth: 13
Maximum Pitch Block Diameter: 14.96 in 380.00 mm
Minimum Pitch Block Diameter: 2.87 in 73.00 mm
Maximum Grinding Wheel Pressure Angle: 24 Degree
Minimum Grinding Wheel Pressure Angle: 5 Degree
Maximum Helix Angle: 55 Degree
Minimum Helix Angle: 50 Degree

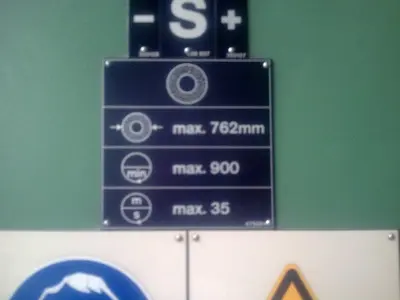

Maximum Grinding Wheel Diameter: 30.00 in 762.00 mm
Minimum Grinding Wheel Diameter: 25.98 in 660.00 mm
Dressing Length Maximum: 1.57 in 40.00 mm
Dressing Range: 2.17 in 55.00 mm
Diamond Adjustment Stroke: 0.24 in 6.00 mm
Grinding Wheel Vertical Adjustment: 10.24 in 260.00 mm
Work Slide Strokes Per Minute: 7.5 / 10 / 15 / 20 / 30 / 40
Grinding Wheel Speed: 400 - 1000 RPM
Dressing Speed For Rough Grinding Face: 3.94 in/min 100.00 mm/min
Dressing Speed For Precision Grinding Face: 1.97 in/min 50.00 mm/min
Grinding Wheel Spindle Power: 1.60 HP 1.20 kW
Work Slide Motor Power: 0.73 HP 0.55 kW
Dressing Attachment Motor Power: 0.20 HP 0.15 kW
Exhaust Unit Motor Power: 2.00 HP 1.50 kW
Total Connected Load 10.00 kVA
Power: Existing
Machine Length: 88.58 in 2250.00 mm
Machine Width: 78.74 in 2000.00 mm
Machine Height: 96.46 in 2450.00 mm
