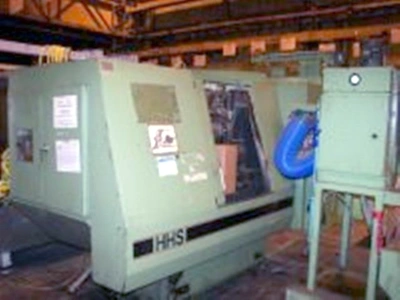

USED 2006 STAR 4HHS

Control: Fanuc Powermate
Maximum Hob Diameter: 10.00 in 254.00 mm
Maximum Hob Length: 12.00 in 304.80 mm
Z Travel: 19.00 in 482.60 mm
Maximum Z Roughing Feed: 100 in/min 2540 mm/min
Minimum Z Roughing Feed: .01 in/min 0.25 mm/min
Maximum Z Finishing Feed: 100 in/min 2540 mm/min
Minimum Z Finishing Feed: .01 in/min 0.25 mm/min
Rotary A Index Spacing: 1 - 999 Teeth
Rotary A Index Speed: 20 RPM
Smallest Resolution Angular: .001 Degree
Feedback Resolution Angle: .0005 Degree
Grinding Sheel Diameter Maximum: 8.00 in 203.20 mm
Grinding Wheel Speed: 5400 sq. ft./min, 1645.00 m/min
Coolant: Self Contained 30 - 40 GPM
Power: Existing
Additional: Ball screws, Trabon lube system
Machine Length: 146.00 in 3708.40 mm
Machine Width: 108.00 in 2743.20 mm
Machine Height: 80.00 in 2032.00 mm
