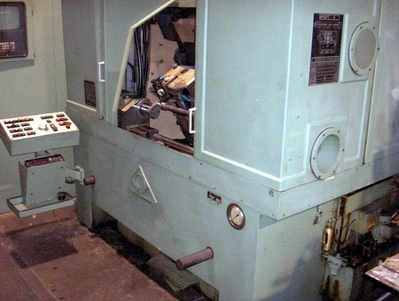

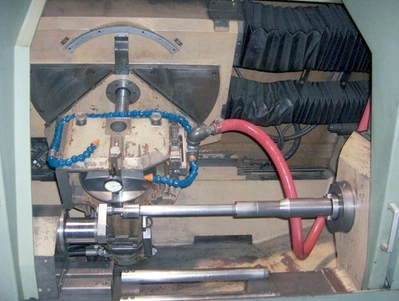

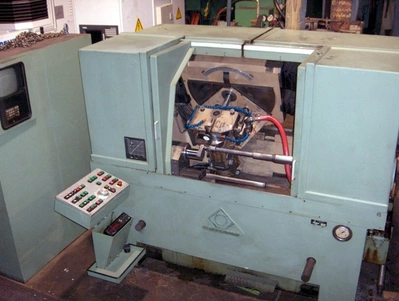

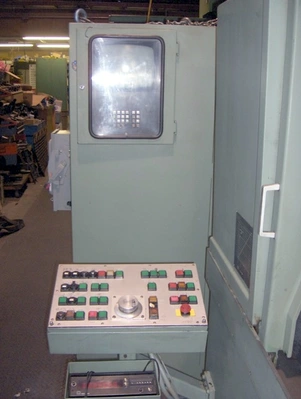

USED 1985 KLINGELNBERG SNC-30
Overview
Specs
Grinding Diameter: 11.80 in 299.72 mm
Grinding Length: 19.50 in 495.3 mm
Profile Depth: 3.54 in 89.92 mm
Center Distance: 15.75” - 31.5” / 400 – 800 mm
Pitch Angle: 45°
Number of Flutes: 2 - 99
Grinding Wheel Speeds: 1000 – 2700 RPM
Grinding Wheel Hole Diameter: 2.00 in 50.8 mm
Grinding Wheel Width: 5.91 in 150.11 mm
Maximum Peripheral Speed: 35 m/sec
Taper in Workpiece Tailstock: SK 40
Grinding Slide Feeds: 0.005 – 16 m/min
Total Power Requirements: 12 kW
Additional: Oil mist extraction system, coolant system with paper filter
Grinding Motor: 10.06 HP 7.5 kW
Machine Length: 117.00 in 2971.8 mm
Machine Width: 97.50 in 2476.5 mm
Machine Height: 89.70 in 2278.38 mm
