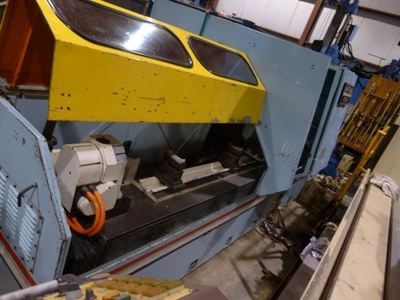

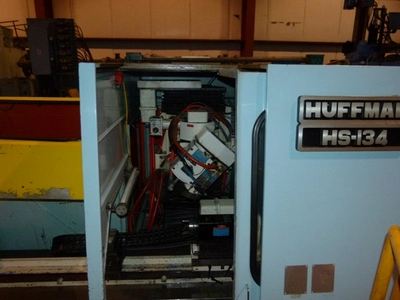

USED HUFFMAN HS-134

Control: GE Fanuc 15MA
Maximum Broach Overall Length: 96.00 in 2438.40 mm
Maximum Broach Cutting Length: 72.00 in 1828.80 mm
Maximum Circular Broach Diameter: 8.00 in 203.20 mm
Z Wheelhead Vertical Axis: 18.00 in 457.20 mm
Y Wheelhead Cross Axis: 18.00 in 457.20 mm
C Wheelhead Radial Rotation: Manual Controlled with Digital Readout: +/- 30 Degrees from Horizontal
B Wheelhead Axial Rotation: Manual Controlled with Digital Readout: +90 Degrees CCW from Horizontal

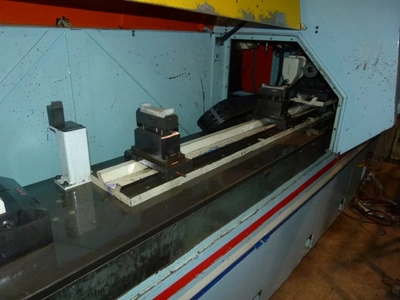

X Workpiece Longitudinal Traverse: 85.00 in 2159.00 mm
A Workhead (workpiece) Angular Axis: 360 Degrees Rollover
W Tailstock (worpiece) Rotary Axis: 360 Degrees Rollover

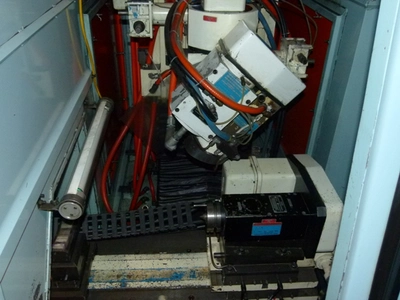

Grinding Wheel Spindle Type: Setco Spindle 4303BY.9
Grinding Wheel Maximum: 8.00 in 203.20 mm
Grinding Wheel Spindle Speed: 4500 - 18000 RPM Infinitely Variable
Grinding Spindle Power: 7.50 HP 5.59 kW
Ways: Linear Roller Pack
Way Covers: Bellows Neoprene
Coolant: 220 Gallon Capacity, 80 PSI, 20 GPM, Hydroflow Coolant System with Koolant Koolers Chiller
Power: Existing
Additional: Grinds circular, flat and multi-surface angular broaches, swing: 25.5 inches (648 mm), Renishaw probe, Heidenhain digital readouts, programmable tailstock with fine adjustment, two workpiece support rests, Smog Hog mist collector, Volkman variable frequency AC motor drives
Machine Length: 240.00 in 6096.00 mm
Machine Width: 136.00 in 3454.40 mm
Machine Height: 147.00 in 3733.80 mm
