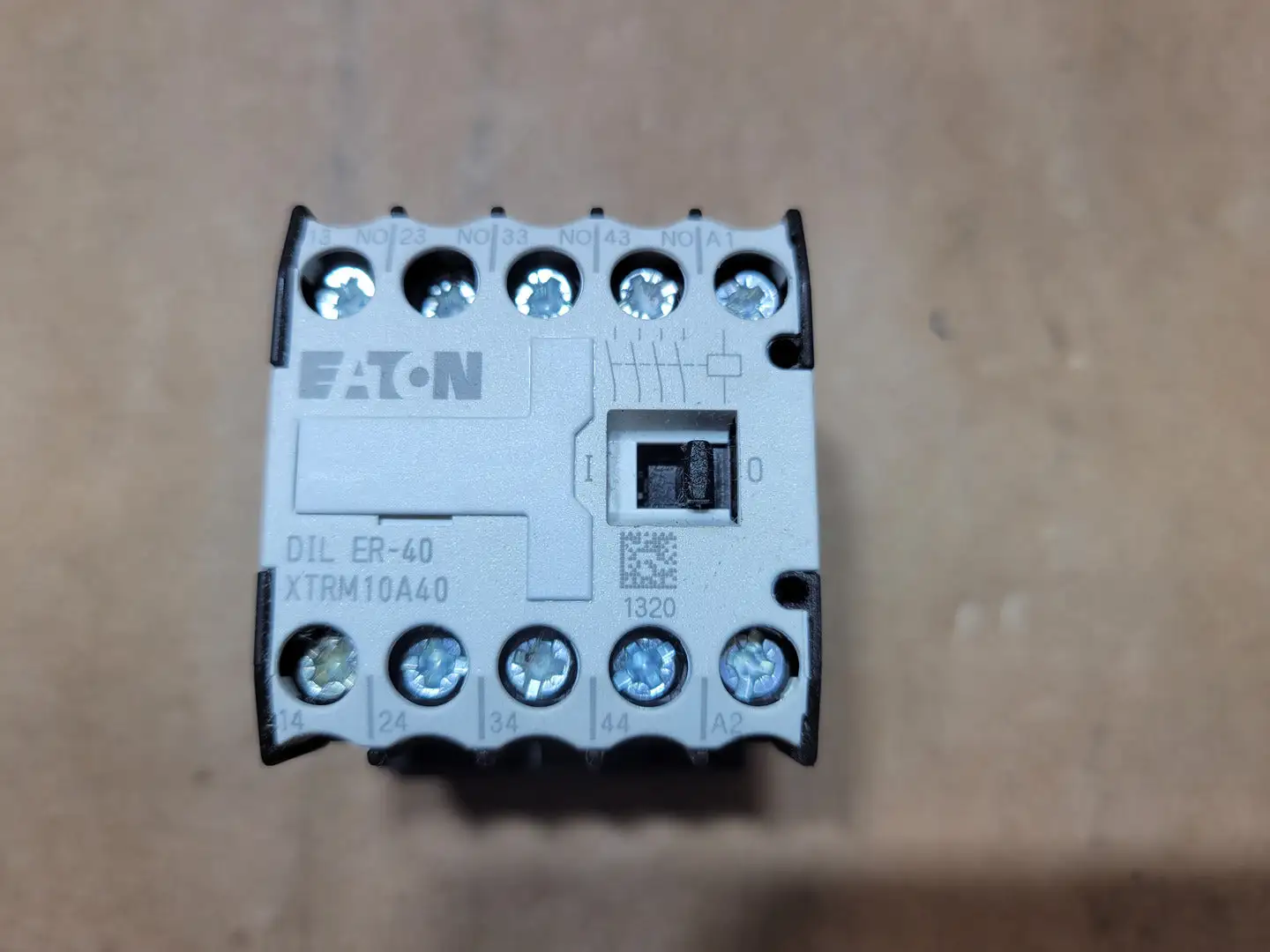

USED EATON DIL ER-40

Amps: 10 amps
Voltage: 240 volts
Relay Type: Control Relay
Part Number: XTRM10A40
Equipment Type: Industrial Control Relay / Auxiliary Contactor Relay
Contact Configuration: 4 NO / 0 NC
Terminal Numbers: 13-14, 23-24, 33-34, 43-44
Coil Terminals: A1 / A2
Rated Operational Current (AC-15): 6 A @ 220/230/240 VAC; 3 A @ 380/400/440 VAC; 1.5 A @ 500 VAC
Conventional Thermal Current (Ie marking): 10 A
UL/CSA Pilot Duty Rating: A600 / P300
Maximum AC Rating: 600 VAC, 10 A
Maximum DC Rating: 250 VDC, 0.5 A
Rated Impulse Withstand Voltage: 6000 V
Wire Size: AWG 18-14
Terminal Tightening Torque: 1.2 Nm / 10.6 lb-in
Applicable Standard: IEC/EN 60947-5-1
Mounting: DIN rail
