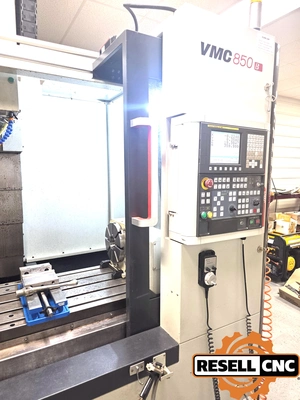

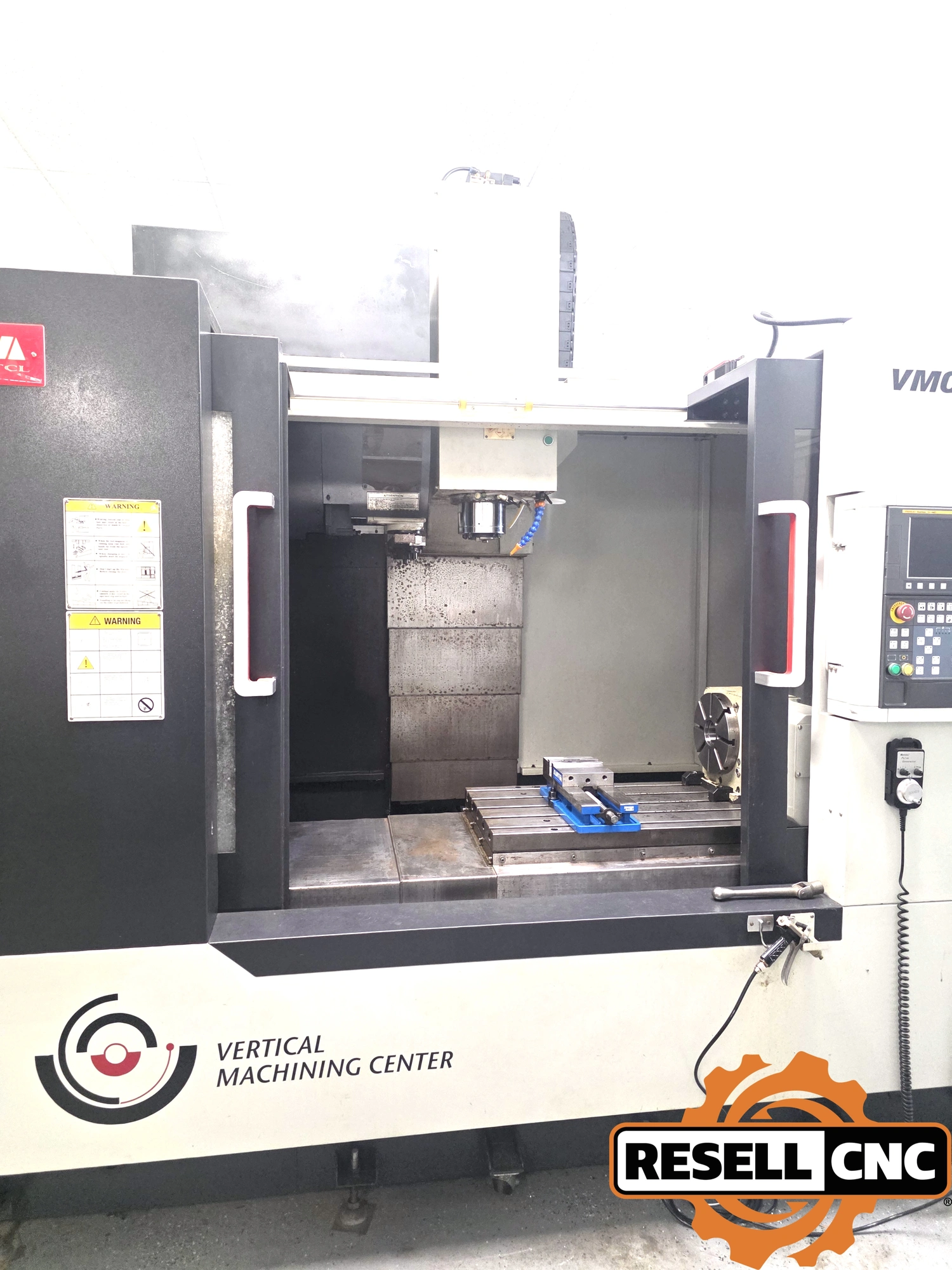

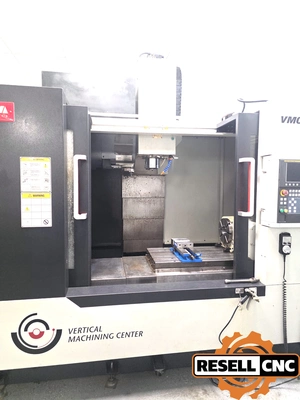

USED 2014 SMTCL VMC850B

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Kurt-Style Precision Vise

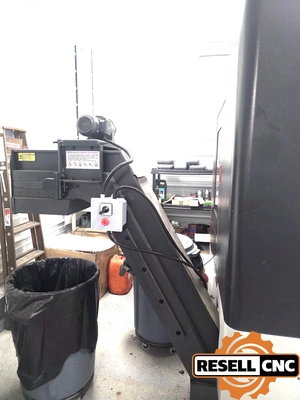

Lift-Style Chip Auger w/ Separate Motor (Add-On, Not Factory)

Spindle Chiller (Option Included)

Spindle Air Blow

Cartridge Spindle (Grease Lubricated, Cogged Belt Drive)

Alpha i AC Digital Servo System (1,000,000 Pulse Encoders)

Advanced Preview Control (200-Block Look-Ahead)

320 M Program Storage, 400 Registered Programs

5-Slot 18mm T-Slotted Table

PCMCIA Card Slot

Full MDI Keyboard

B Axis: false
C Axis: false
Chip Removal: Chip Auger
Control Make Model: Fanuc Series 0i-MD
Control Options: 19, 16, 15, 22, 6
Coolant Psi: 290.0
Coolant Type S: 6, 0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 1320.0
Max Tool Diameter: 4.0
Max Tool Length: 11.8
Max Tool Weight: 15.4
Programmable Tailstock: false
Rotary Make Model: SMTCL CNC-250R (Golden Sun GSA)
Rotary Table Trunnion: 4th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 20
Spindle Nose To Table Top: 31.4
Spindle Speed: 10000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Arm
Tool Change Time: 1.9
Tool Magazine Capacity: 24.0
Twin Turret: false
Vertical Table Pallet Size: 39.4" x 19.7"
X Travel: 33.4
Y Axis: false
Y Travel: 22.0
Z Travel: 25.5
