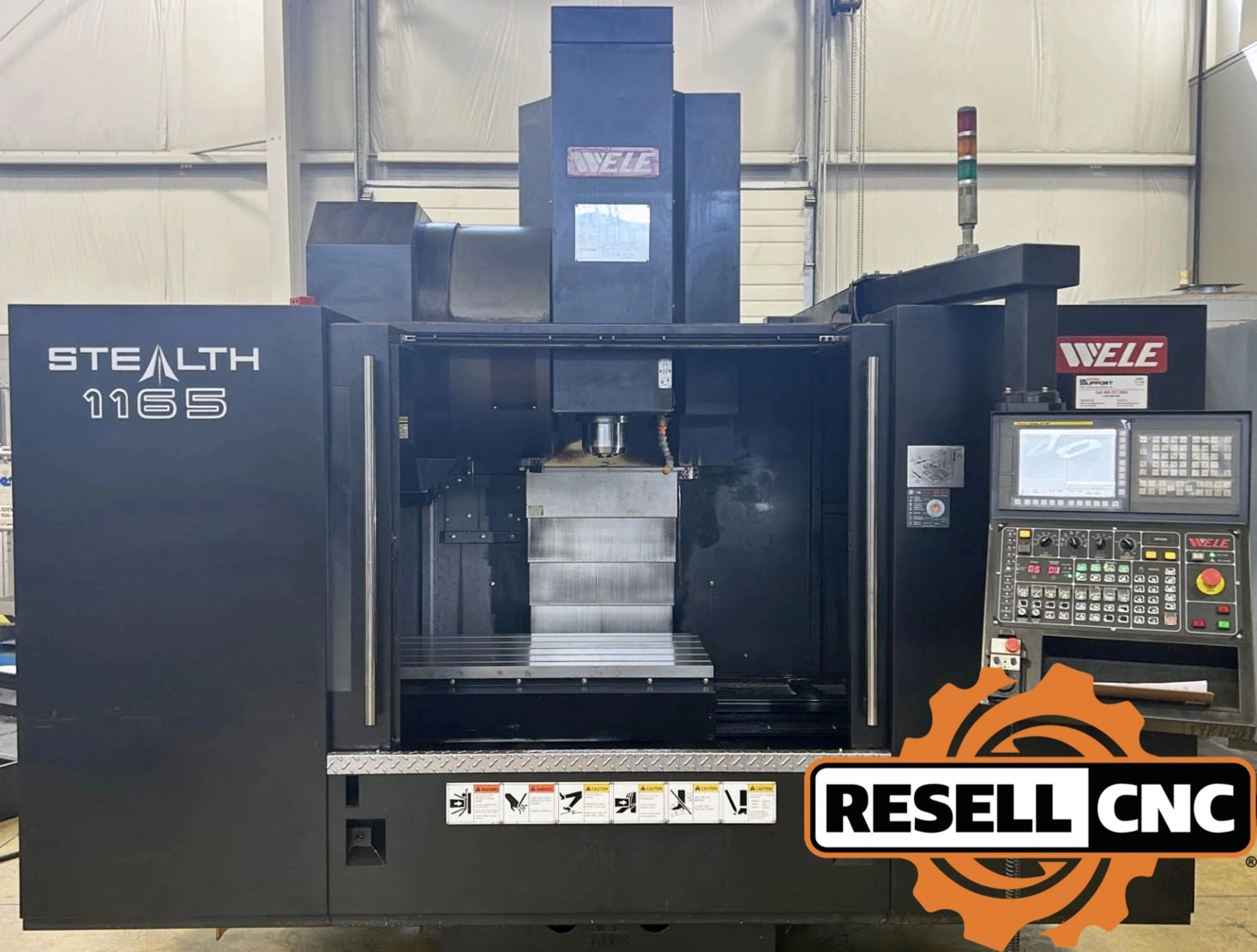

USED 2012 Toyoda-Wele Stealth-1165

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: 30-Min Rated Spindle Motor 20 HP

92 ft-lb Spindle Output Torque (Direct Drive CT40)

Direct Drive Spindle, 15 – 12,000 RPM

Table T-Slot Size 0.71" x 4.92" x 5

Table Height From Plant Floor 35.4"

ANSI CAT40 Pull Stud

Random Tool Selection, Bi-Directional Tool Access

113.5 Gallon Coolant Tank Capacity, 20 GPM Flood

Chip Blaster D-30-70 High Pressure Coolant System (1,000 PSI, 8 GPM, Dual Cartridge Filtration — Tank Not Included)

B Axis: false
C Axis: false

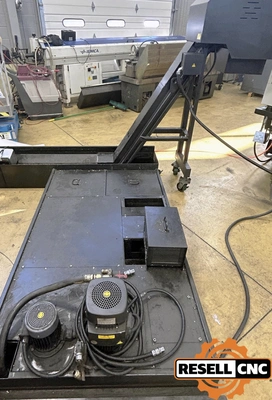

Chip Removal: Chip Conveyor

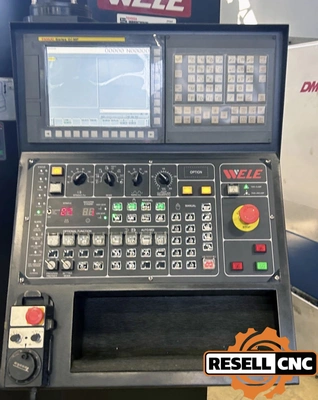

Control Make Model: Fanuc 0i-MD Package A
Coolant Type S: 0, 1
Cutting Feed Rate: 945
Electrical: 220V / 3 Phase / 35 kVA
High Pressure Coolant Psi: 1000.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 2425.0
Max Tool Diameter: 2.99
Max Tool Diameter Adjacent: 5.0
Max Tool Length: 9.8
Max Tool Weight: 15.4
Max Workpiece Weight: 2425.0
Probe Make Model: BLUM Part Probe Receiver (No Spindle Probe Included)
Programmable Tailstock: false
Rapid Traverse: 1181
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 15
Spindle Nose To Table Top: 28.5
Spindle Speed: 12000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Drum
Tool Change Time: 3
Tool Magazine Capacity: 24.0
Twin Turret: false
Vertical Table Pallet Size: 51.2" x 25.6
X Travel: 43.3
Y Axis: false
Y Travel: 25.6
Z Travel: 23.6
