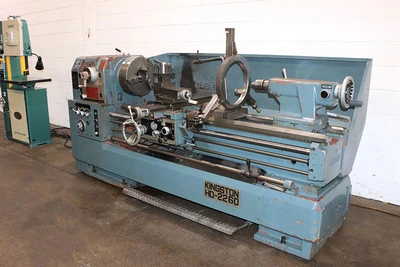

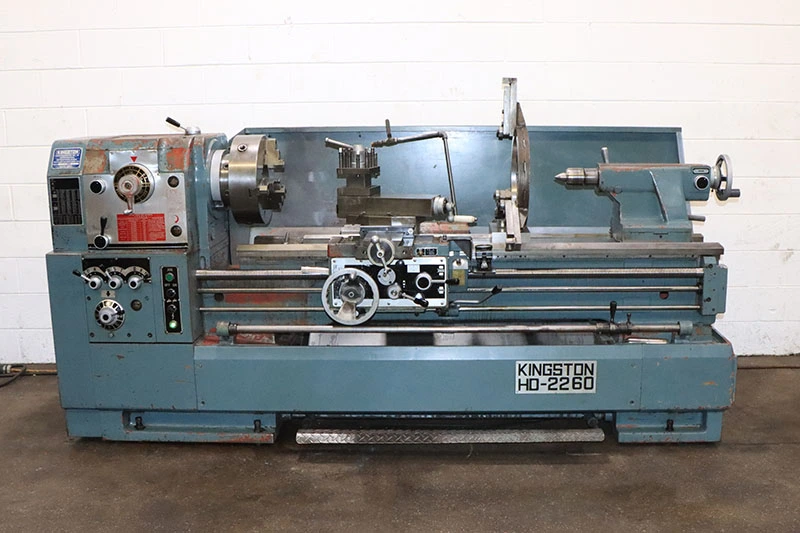

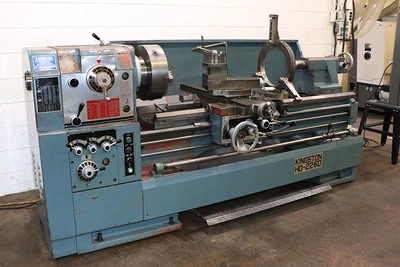

USED 2001 Kingston HD-2260

22"/31" X 60" KINGSTON GAP BED ENGINE LATHE

MODEL: HD-2260,  S/N: CHO2165,  MFG: 2001

SPECIFICATIONS:

SWING OVER BED........................ 22"

SWING OVER CROSS SLIDE................ 13"

SWING IN REMOVABLE GAP................ 30-7/8"

SPINDLE NOSE CAMLOCK.................. D1-8"

HOLE THROUGH SPINDLE.................. 4-1/16"

DISTANCE BETWEEN CENTERS.............. 60"

SPINDLE SPEED RANGE (12).............. 13 - 1200 RPM

LONGITUDINAL FEED RANGE ............. .0012" - .039" IPR

CROSS FEEDS HALF OF LONGITUDINAL SETTING

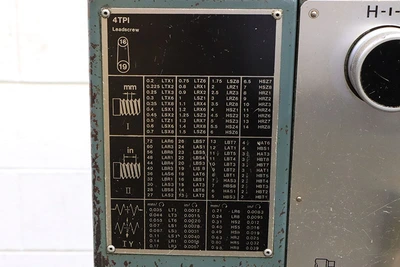

ENGLISH THREADING RANGE .............. 1 - 72 TPI

METRIC THREADING RANGE ............... .2 - 14 M

TAILSTOCK SPINDLE DIAMETER............ 2-15/16"

TAILSTOCK SPINDLE TRAVEL.............. 7"

TAILSTOCK SPINDLE TAPER............... #5MT

APPROXIMATE FLOOR SPACE............... 55"W x 114" L

APPROXIMATE WEIGHT.................... 5,500 LBS.

EQUIPPED WITH:

 - INCH & METRIC THREADING CAPABILITY

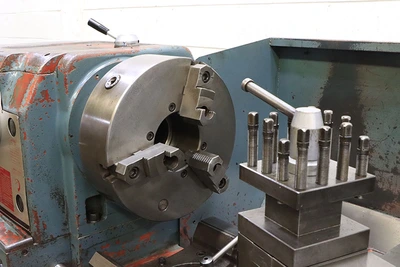

 - 15" 3-JAW CHUCK

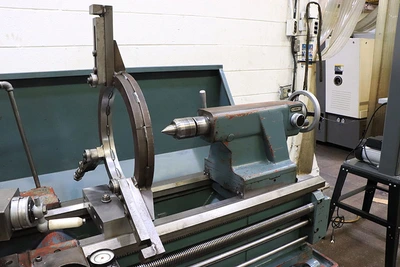

 - STEADY REST

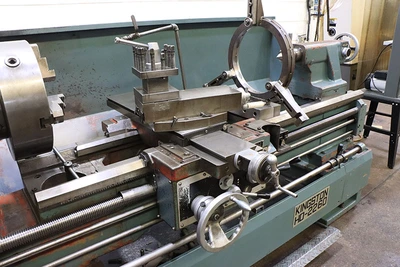

 - FOURWAY TURRET TOOLPOST

 - THREAD DIAL INDICATOR

 - TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL

 - LIVE CENTER FOR TAILSTOCK

 - TWO SPEED TAILSTOCK

 - COOLANT SYSTEM WITH REMOVEABLE CHIP PAN

 - SPLASH GUARD

 - FOOT BRAKE

 - HARDENED & GROUND BEDWAYS

 - 10 HORSE POWER MAIN DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
