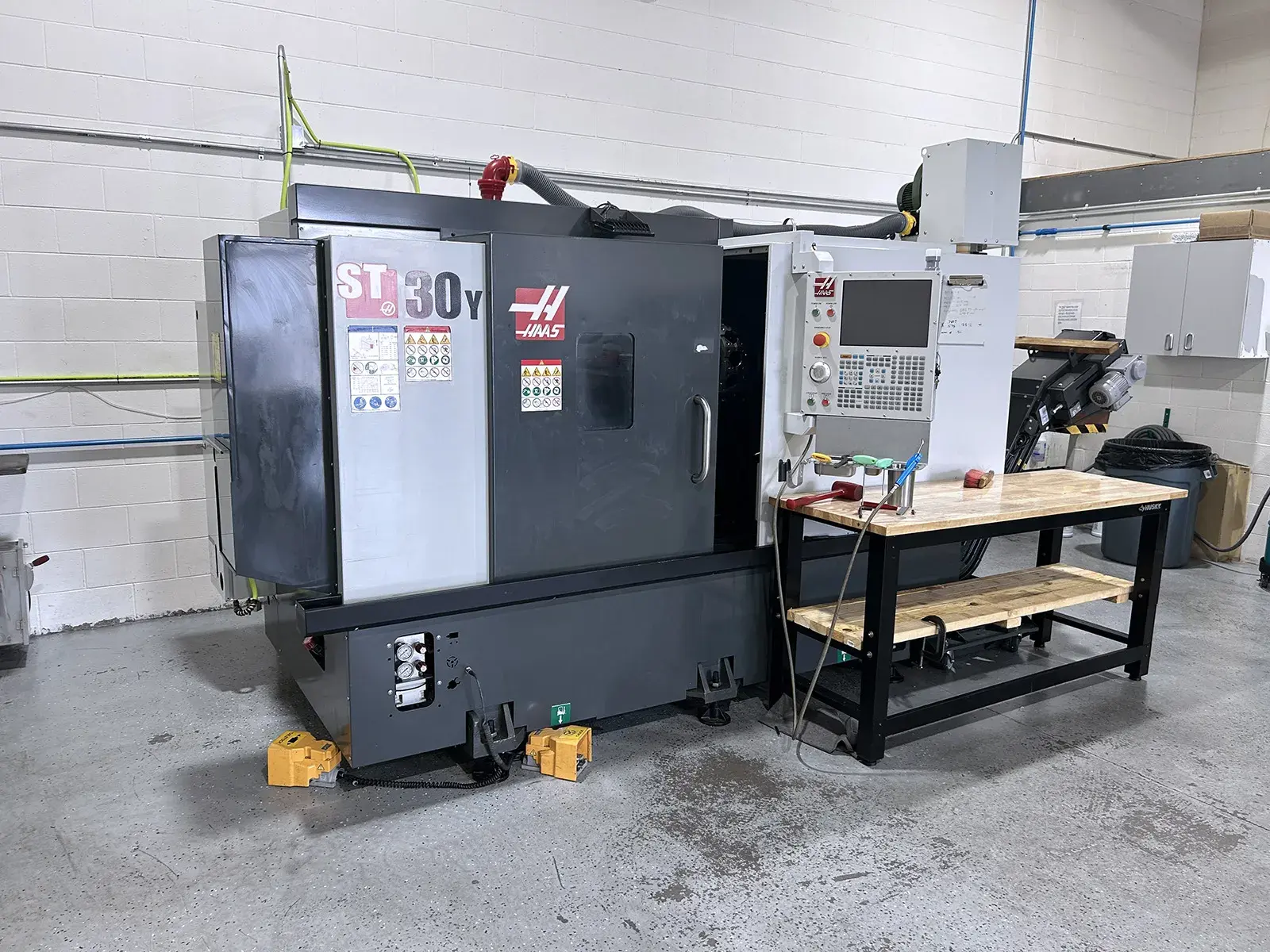

USED 2022 Haas ST-30Y
Overview
Haas ST-30Y (2022) CNC Turning Center delivers high-precision turning, drilling and milling with Y-axis capability in a single setup. Ideal for aerospace, automotive, medical, oil & gas and job shop production, it efficiently machines complex shafts, hubs, valves, fittings, fasteners and precision components with improved flexibility and productivity.
Specs
Chuck Size: 10"
Maximum Cutting Diameter: 13.75"
Maximum Cutting Length: 32.5"
Maximum Bar Capacity: 3.00"
Maximum Part Swing: 21.0"
X-Axis Travel: 9.40"
Y-Axis Travel: ±2.00" / 4.00" total
Z-Axis Travel: 32.50"
X-Axis Rapid Traverse: 472 IPM
Y-Axis rapid traverse: 472 IPM
Z-Axis Rapid Traverse: 945 IPM
Main Spindle Speed: 3,400 RPM
Main Spindle Motor: 30 HP
Maximum Spindle Torque: 300 ft-lb @ 500 RPM
Spindle Nose: A2-6
Spindle Bore: 3.50"
C-Axis: Full interpolated C-axis
C Axis Positioning: ±0.01°

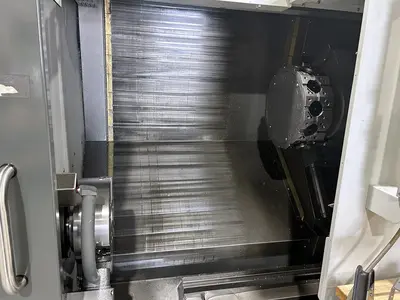

Turret: 12-Station BMT65
Live Tooling Speed: 4,000 RPM standard
Coolant Capacity: 55 Gallons
Machine Weight: Approx. 11,340 lbs

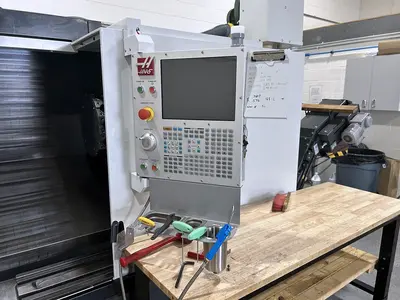

Control: Haas Next Generation Control
Electrical: 220V / 3 Phase / 50-60 Hz
Full Load: 70 Amps
Equipped With
Haas Next Generation CNC Control
10" hydraulic chuck
3.0" bar capacity
3400 RPM/30 HP main spindle
Y-axis
Full C-axis
Live tooling

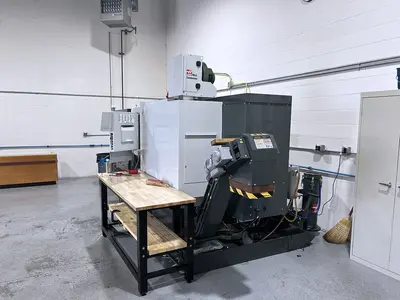

Chip conveyor
High Pressure coolant system
Rigid tapping
