USED 2021 Axile G6
Overview

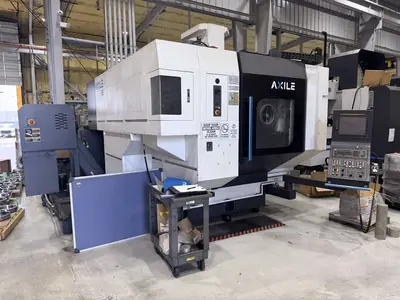

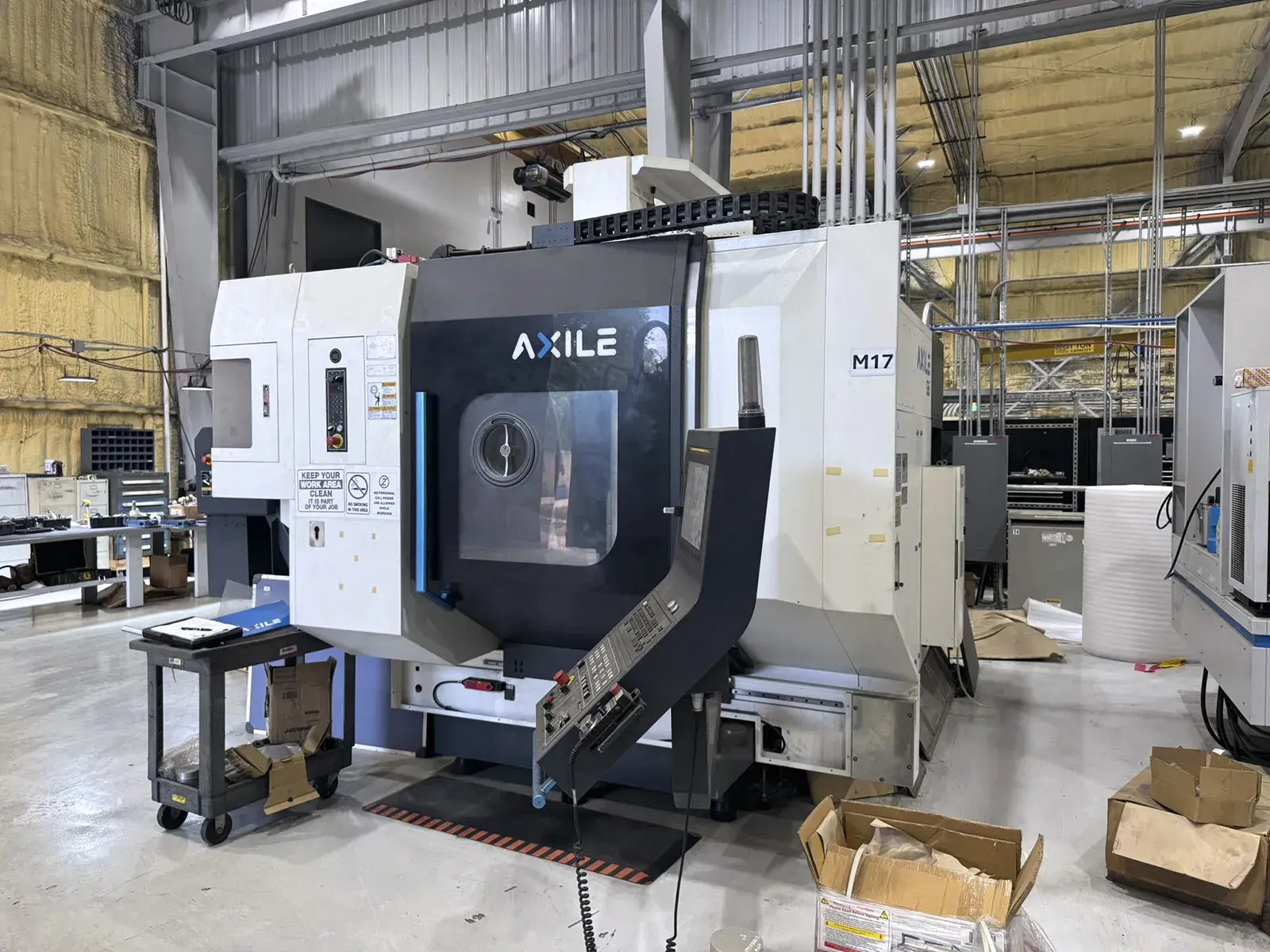

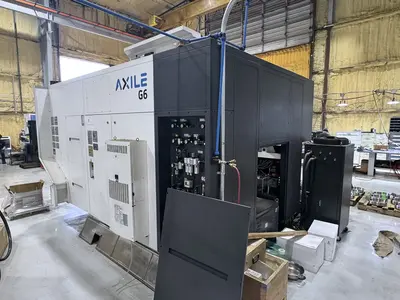

Axile G6 5AX (2021) is a high-speed 5-axis CNC machining center built for precision milling of complex parts. Ideal for aerospace, medical, automotive, die & mold, and precision job shops, it delivers efficient multi-sided machining for demanding components, tight tolerances, intricate contours, and superior surface finishes.
Specs
X-Axis Travel: 25.6"
Y-Axis Travel: 33.5"
Z-Axis Travel: 19.7"
Number of Axes: 5
A-Axis Tilt: ±120°
C-Axis Rotation: 360°
Rotary Table Diameter: 23.6"
Maximum Table Load: 1,323 lbs
Maximum A-Axis Speed: 100 RPM
Maximum C-Axis Speed: 200 RPM
Tool Changer Capacity: 80 tools
Maximum Workpiece Diameter: 32.3"
Spindle Taper: HSK-A63
Maximum spindle speed: 20,000 RPM
spindle power: 33.5 HP
Spindle Torque: 64 ft-lb continuous
Max. Tool Length: 11.8"
Max. Tool Diameter: 2.95"
Rapid Feed Rate: ~1,417 IPM
Machine Weight: ~28,660 lbs
Electrical: 440V / 60 Hz / 80 kVA
Equipped With

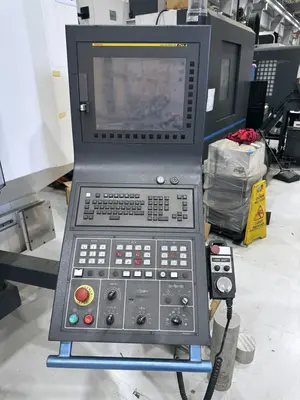

Fanuc Series 31i-B5 Plus 5-Axis CNC Control
Full Simultaneous 5-Axis Machining

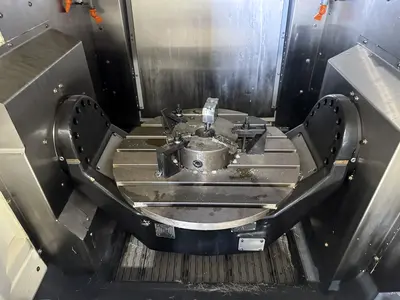

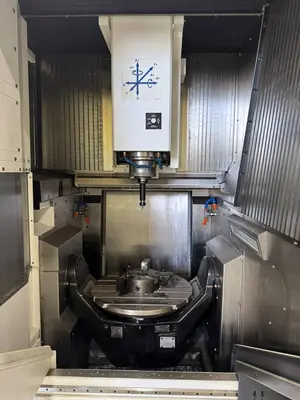

23.6" High-Dynamic Tilting/Rotary Table
A-Axis ±120° Tilting
C-Axis 360° Rotation
Direct-Drive Torque Motor A & C Axes

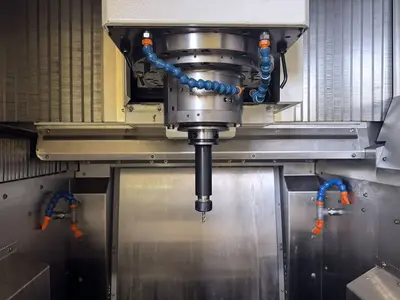

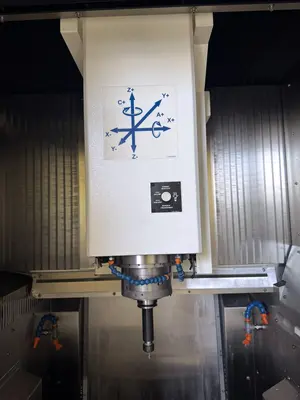

20000 RPM HSK-A63 Integral Motor Spindle

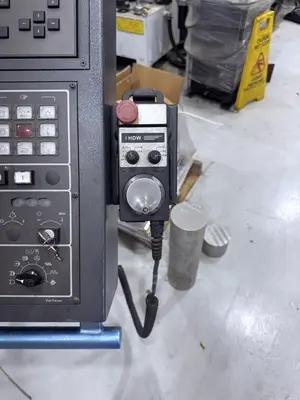

Remote Handwheel / MPG
Through-Spindle Air
Multiple External Coolant Nozzles
Hydraulic & Pneumatic Interface at Rotary Table

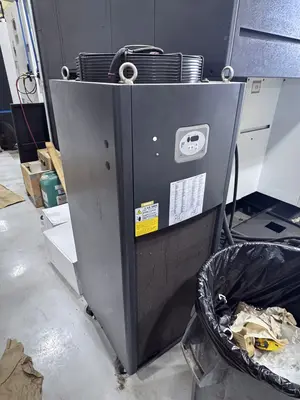

Spindle / Machine Chiller
Chip Conveyor
Automatic Opening Roof for Overhead Crane Loading
3-Color Status Light
