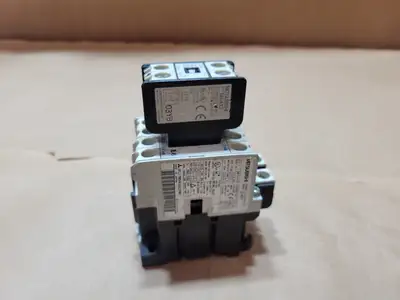

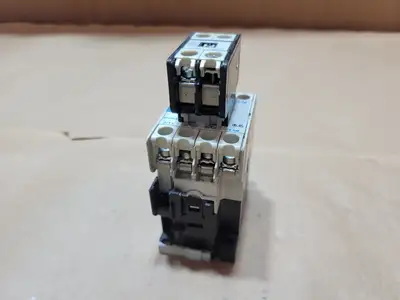

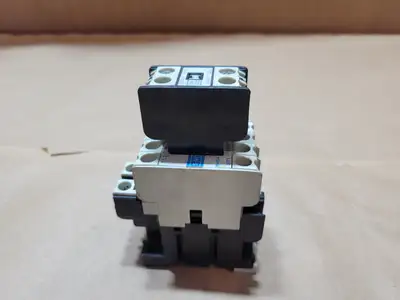

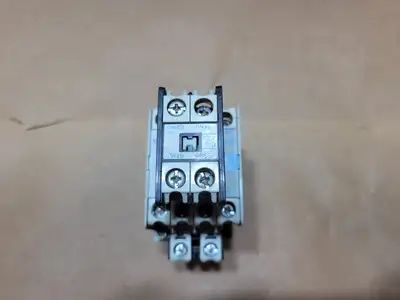

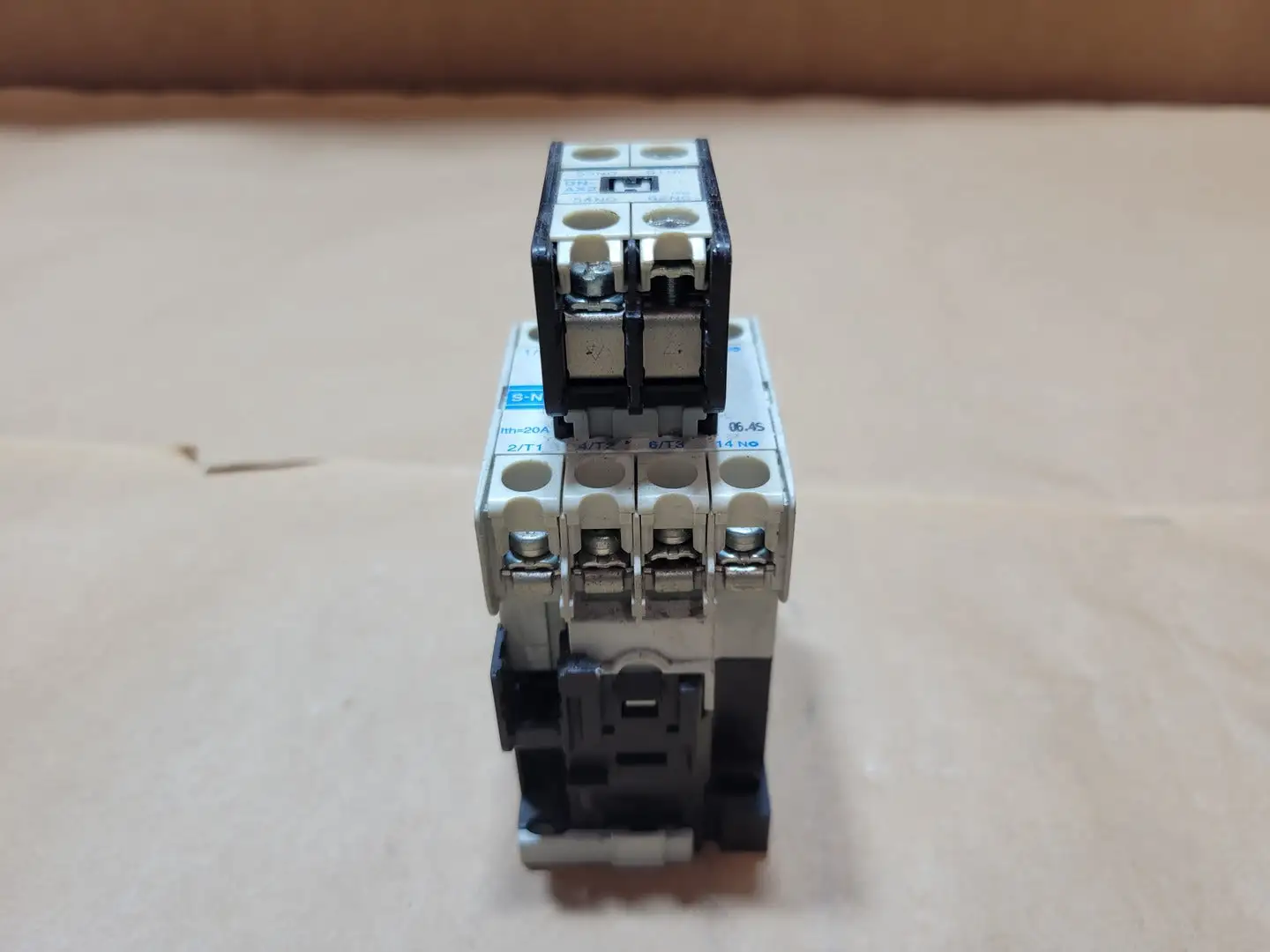

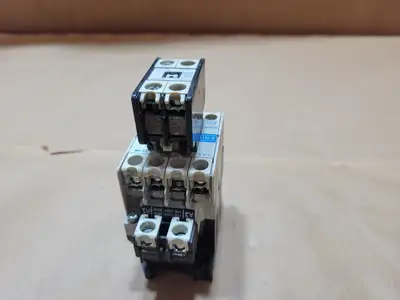

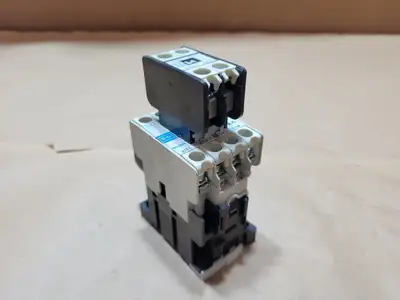

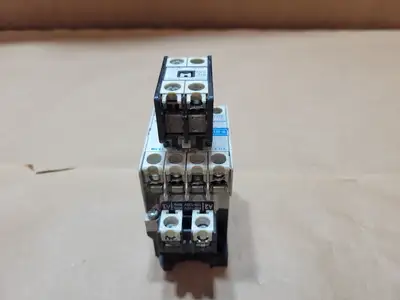

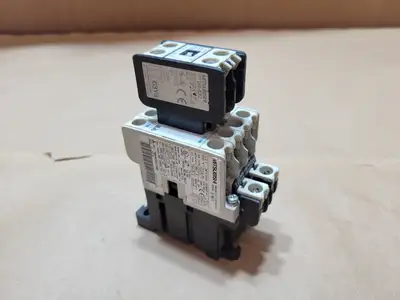

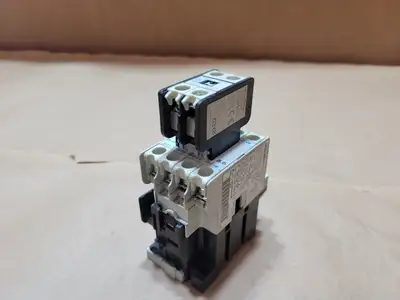

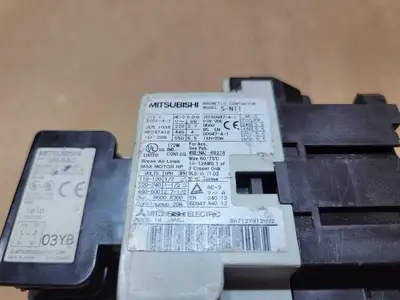

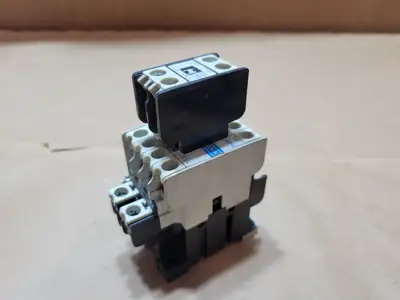

USED MITSUBISHI ELECTRIC S-N11

Series: MS-N / S-N
Model: S-N11
Device type: AC-operated magnetic contactor
Main power poles: Three
Line terminals: 1/L1, 3/L2 and 5/L3
Load terminals: 2/T1, 4/T2 and 6/T3
Integrated auxiliary contact: One normally open contact
Integrated auxiliary terminals: 13-14
Continuous current rating: 20 A
Rated operating voltage: Up to 690 VAC,
Rated insulation voltage: 660/690 V,
AC-3 current: Approximately 13 A at 240 V and 12 A at 380-440 V

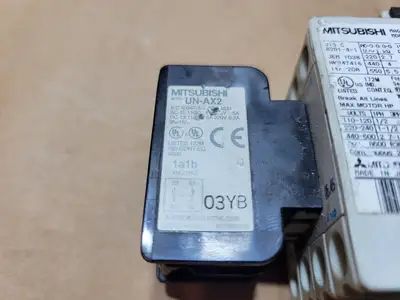

Model: UN-AX2
Device type: Top-mounted auxiliary contact block
Contact configuration: 1 NO + 1 NC / 1a1b
Normally open terminals: 53-54
Normally closed terminals: 61-62
Applicable utilization categories: AC-15 and DC-13
Mounting: Clip-on top mounting
