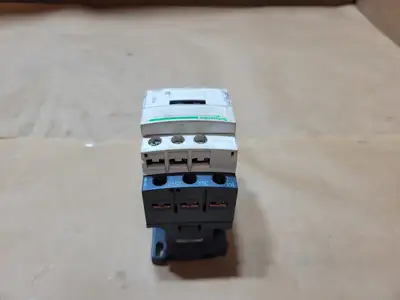

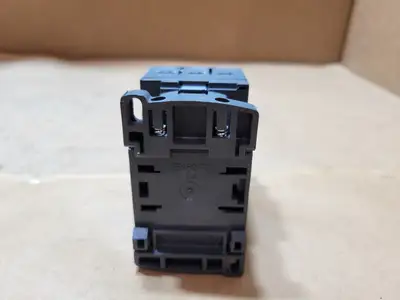

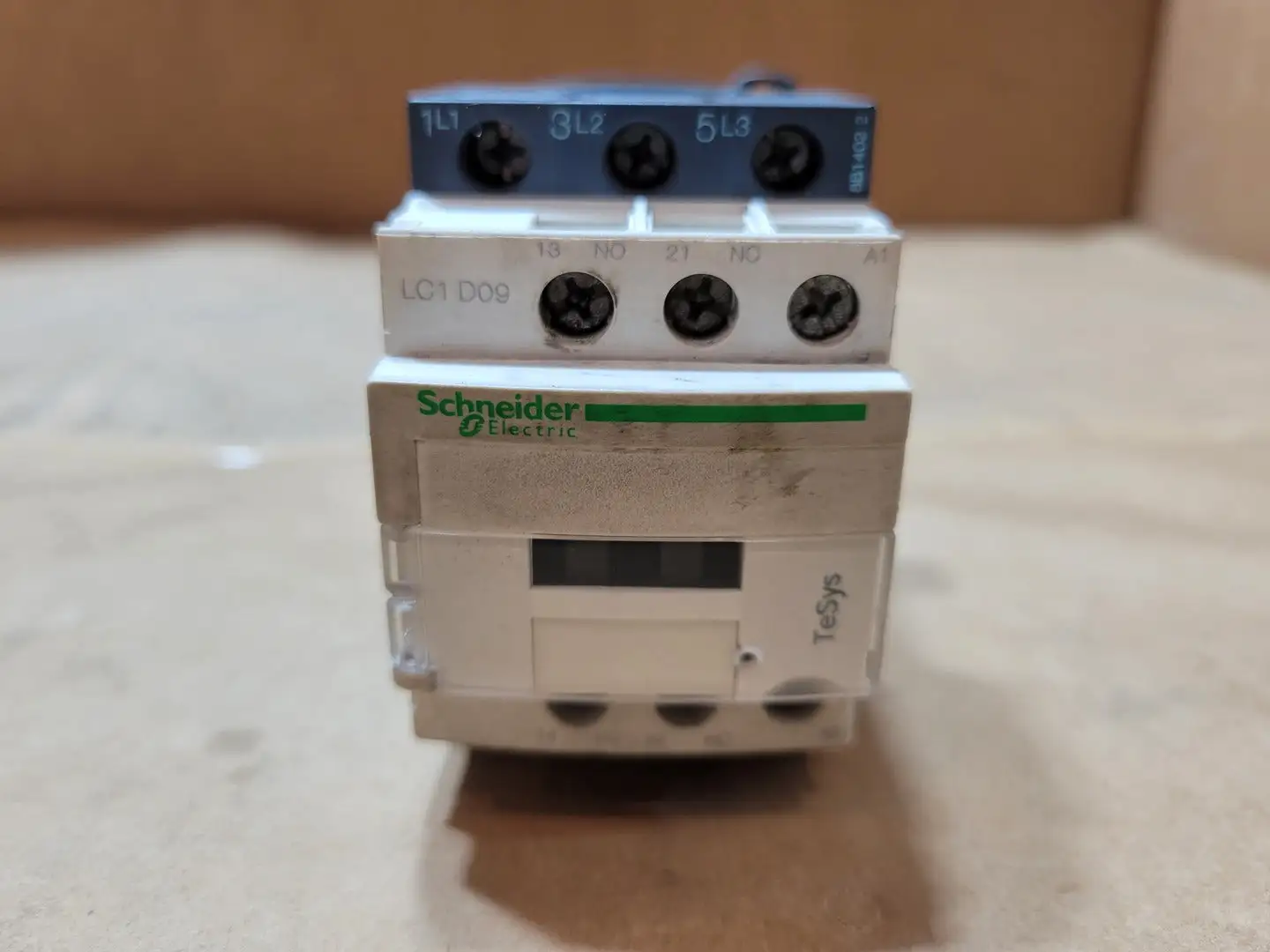

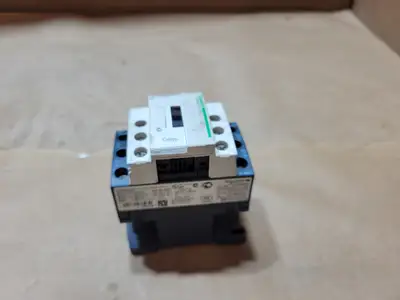

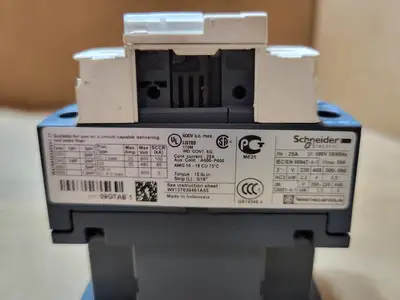

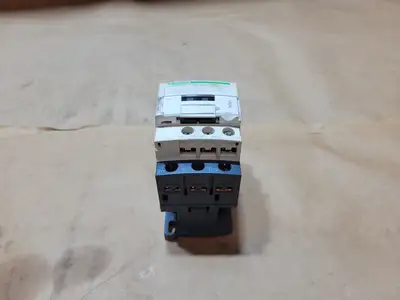

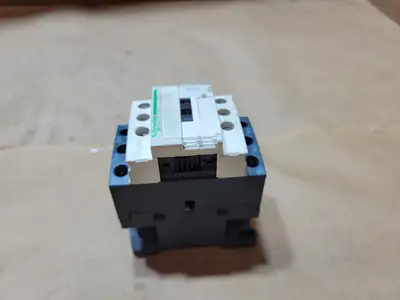

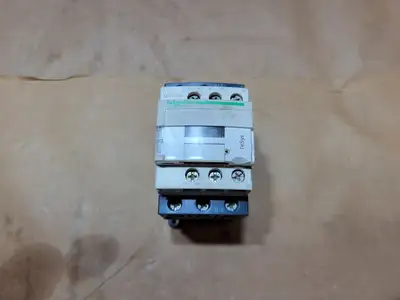

NEW SCHNEIDER ELECTRIC LC1 D09

Horsepower: 7.5 hp
Voltage: 600 volts
Amps: 25 amps
Equipment Type: Magnetic Contactor
Main Poles: 3
Auxiliary Contacts: 1 Normally Open (13-14), 1 Normally Closed (21-22)
Terminal Markings: 1L1, 3L2, 5L3 / 2T1, 4T2, 6T3
Coil Terminals: A1, A2
Continuous Thermal Current (Ith): 25 A
Rated Insulation Voltage (Ui): 690 V AC
Impulse Withstand Voltage (Uimp): 6 kV
IEC Standard: IEC/EN 60947-4-1
AC-3 Motor Rating @ 230 V: 2.2 kW
AC-3 Motor Rating @ 400 V: 4 kW
AC-3 Motor Rating @ 500-690 V: 5.5 kW
UL Continuous Current: 25 A
Mounting: Panel or DIN rail compatible
