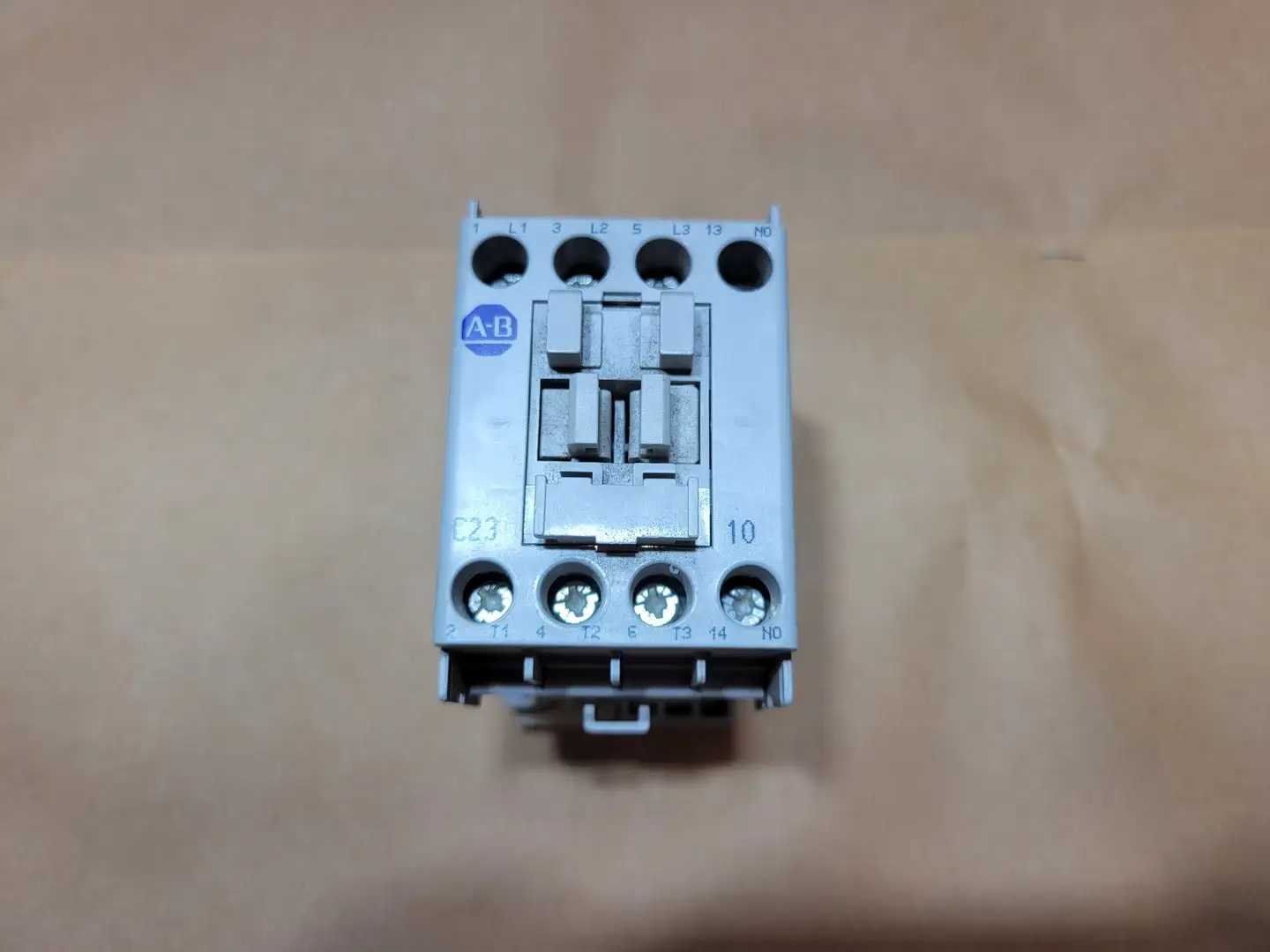

NEW ALLEN-BRADLEY 100-C23*10

Horsepower: 15 hp
Voltage: 600 volts
Amps: 32 amps
Series: C
Equipment Type: IEC Contactor
Main Terminal Configuration: L1/T1, L2/T2, L3/T3
Auxiliary Contact: 1 Normally Open (1NO)
Auxiliary Terminals: 13-14 NO
Coil Voltage: 110 V AC at 50 Hz / 120 V AC at 60 Hz
Impulse Withstand Voltage (Uimp): 6 kV
AC-1 Rating: 690 V, 32 A
AC-12 Rating: 20 A
AC-3 Motor Rating:
230 V: 7.5 kW
240 V: 7.5 kW
400 V: 11 kW
415 V: 11 kW
500 V: 13 kW
690 V: 10 kW
Auxiliary Contact Rating: A600 / P600
Auxiliary Maximum Voltage: 600 V AC
UL Maximum Enclosed Rating: 30 A
1-Phase Horsepower: 2 HP at 115 V; 3 HP at 200/230 V
3-Phase Horsepower: 5 HP at 200 V; 7.5 HP at 230 V; 15 HP at 460 V; 15 HP at 575 V
Short-Circuit Rating: Suitable for load side of 140M manual self-protected combination motor controller, per nameplate instructions
Standards Marked: IEC 60947-4-1 / IEC 60947-5-1
