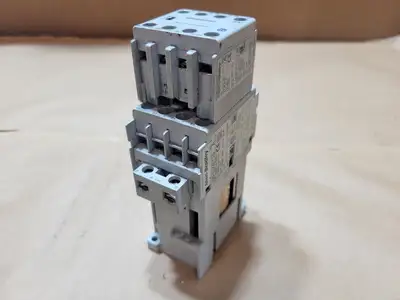

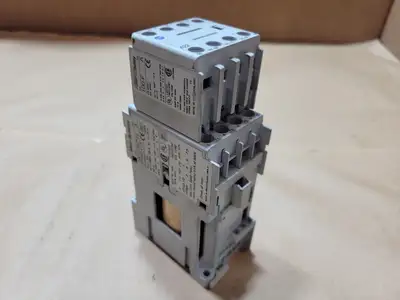

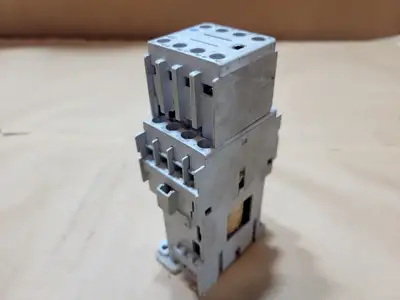

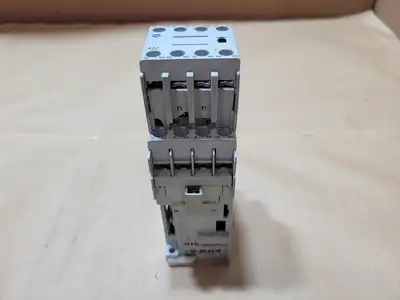

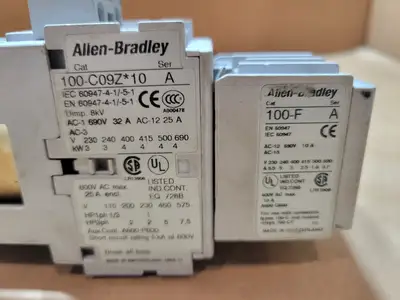

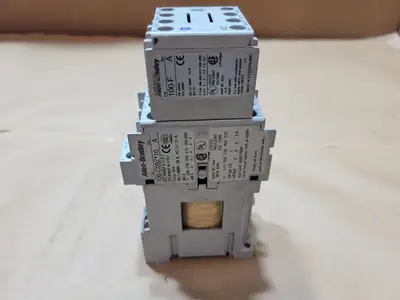

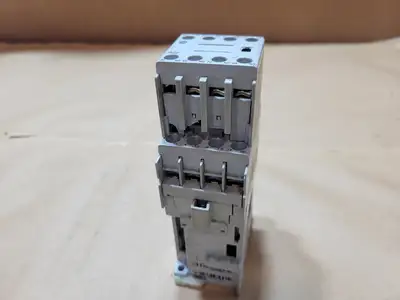

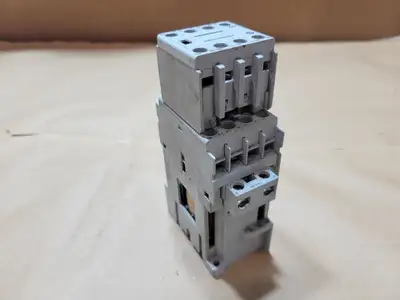

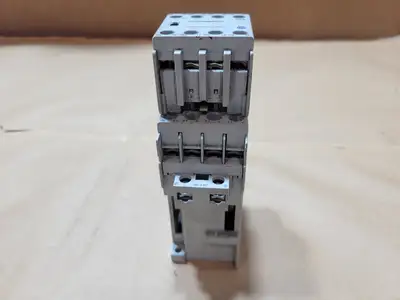

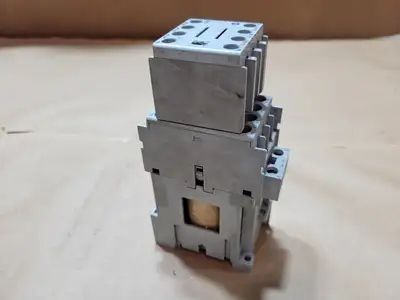

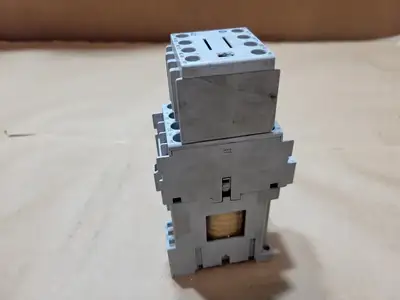

NEW ALLEN-BRADLEY 100-C09Z*10

Horsepower: 7.5 hp
Voltage: 600 volts
Amps: 9 amps
Contactor
Brand: Allen-Bradley

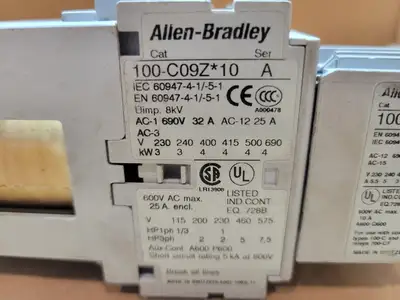

Catalog Number: 100-C09Z*10
Series: A
Type: IEC magnetic contactor
Poles: 3
Rated Current AC-3: 9A
AC-1 Rating: 32A @ 690VAC
AC-12 Rating: 25A
Coil Voltage: 24VDC
Built-In Auxiliary Contact: 1NO
AC-3 Motor Rating: 3kW @ 230/240V, 4kW @ 400/415/500/690V
3-Phase HP Rating: 2 HP @ 200/230V, 5 HP @ 460V, 7.5 HP @ 575V
Maximum Voltage: 690VAC IEC / 600VAC UL
Impulse Withstand Voltage: 8kV
Auxiliary Contact Rating: A600 / P600
Short Circuit Rating: 5kA @ 600V

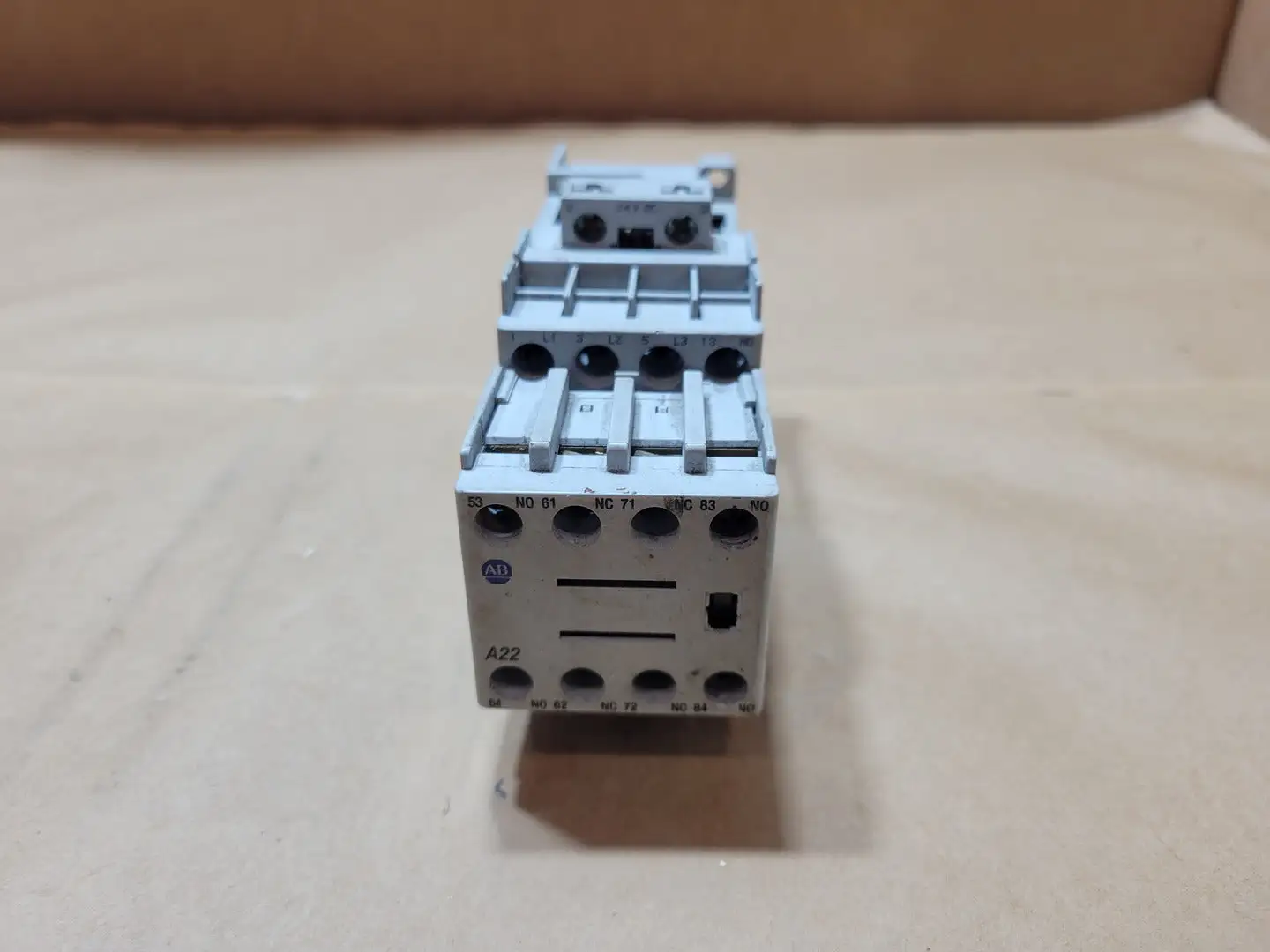

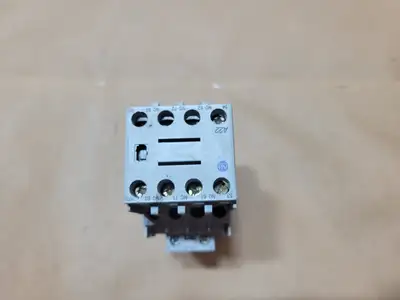

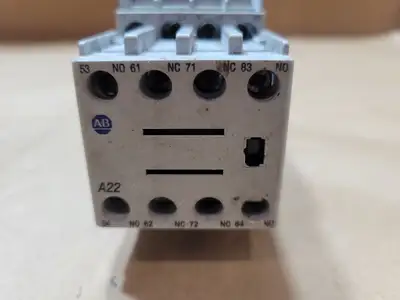

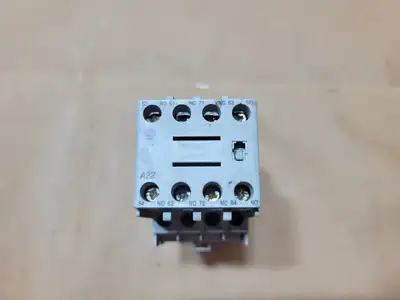

Auxiliary Contact Block
Brand: Allen-Bradley

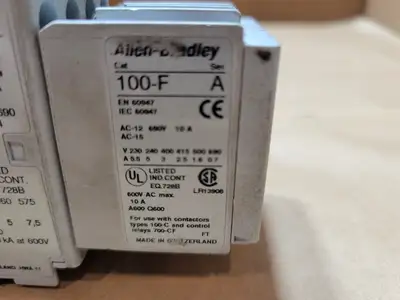

Series: 100-F, Series A
Type: Front-mounted auxiliary contact block
Contact Configuration: 2NO + 2NC
NO Terminals: 53-54 and 83-84
NC Terminals: 61-62 and 71-72
AC-12 Rating: 10A @ 690VAC
AC-15 Rating: 5.5A @ 230V, 5A @ 240V, 3A @ 400V, 2.5A @ 415V, 1.6A @ 500V, 0.7A @ 690V
Maximum UL Rating: 10A @ 600VAC
Pilot Duty Rating: A600 / Q600
