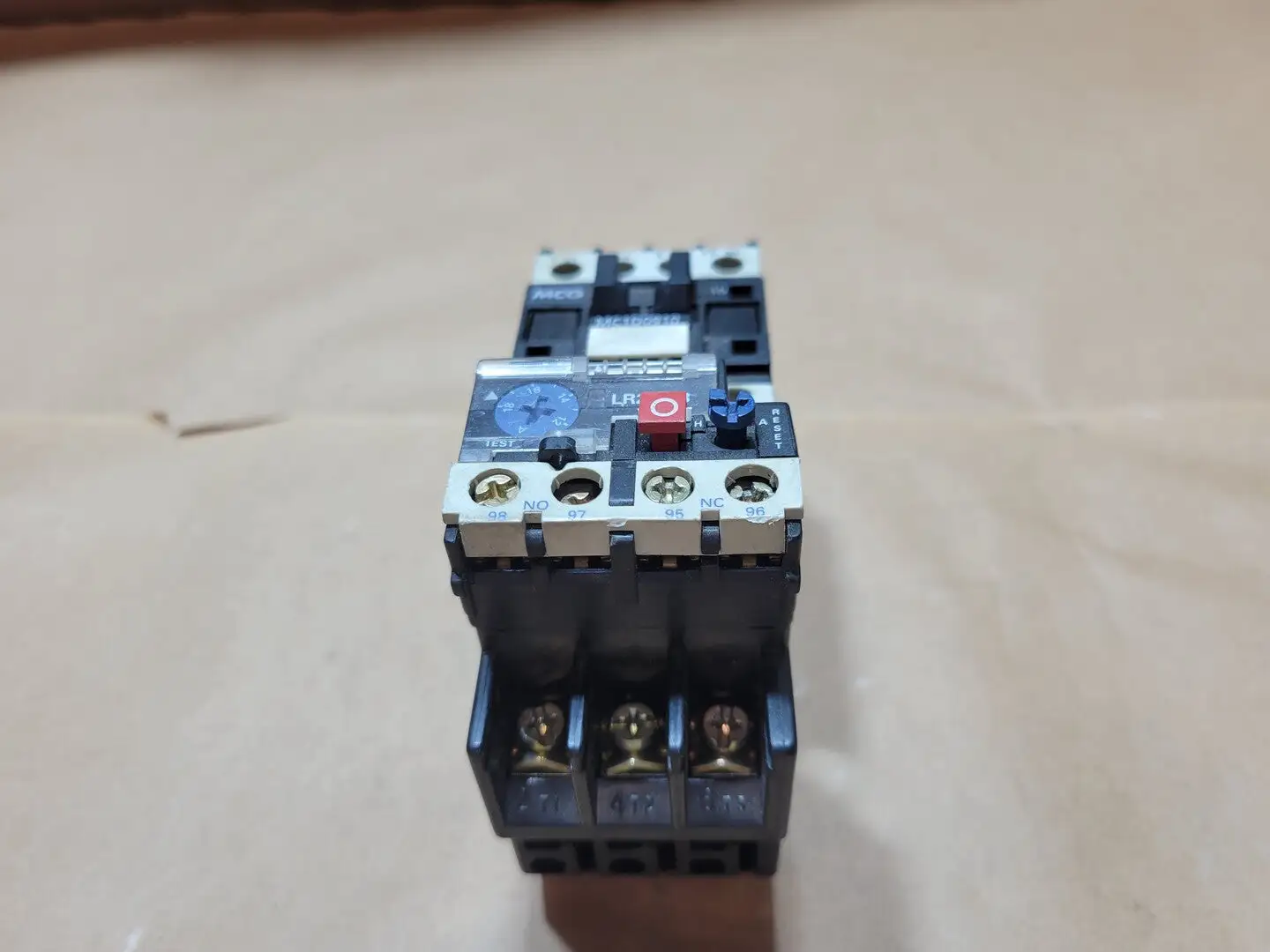

USED MCG MC1D0910

Horsepower: 7.5 hp
Voltage: 600 volts
Amps: 9 amps
Contactor
Brand: MCG
Model: MC1D0910
Type: IEC magnetic contactor
Poles: 3
Auxiliary Contacts: 1NO - terminals 13-14
AC-3 Current Rating: 9A
Conventional Thermal Current: 25A
Coil Voltage: 240VAC, 50/60Hz - marking visible on unit
Rated Insulation Voltage: 1000V
Impulse Withstand Voltage: 6kV
AC-3 Motor Rating: 2.2kW @ 220V, 4kW @ 380-440V, 5.5kW @ 500-690V
3-Phase HP Rating: 2 HP @ 208/240V, 5 HP @ 480V, 7.5 HP @ 600V
Continuous Current: 20A
Overload Relay
Brand: Telemecanique
Model: LR2 D13
Type: Thermal motor overload relay
Trip Class: Class 10A
Reset: Manual / automatic selectable
Auxiliary Contacts: 1NO + 1NC
NC Terminals: 95-96
NO Terminals: 97-98
Rated Insulation Voltage: 750VAC
Impulse Withstand Voltage: 6kV
