NEW SCHNEIDER ELECTRIC CHOMT1515230

Amps: 15/30 amps
Series: CHOMT
# of Poles: 4
Mounting Style: Plug-In
Voltage: 120/240 volts
Phase: Single-phase
Type Marking: CHOMT
Device Type: Quad tandem / space-saver circuit breaker
Configuration: (2) 15A 1-Pole + (1) 30A 2-Pole
Outside Circuits: 15A, 1-pole each
Outside Pole Trip: Non-common trip
Center Circuit: 30A, 2-pole
Center Pole Trip: Common trip
Frequency: 50/60 Hz
Interrupting Rating: 10,000 A / 10kA AIR
Panel Spaces Required: 2
Conductor Compatibility: Aluminum / Copper (Al/Cu)
15-30A Wire Range: #14-#8 AWG Al/Cu (2.5-8 mm2)

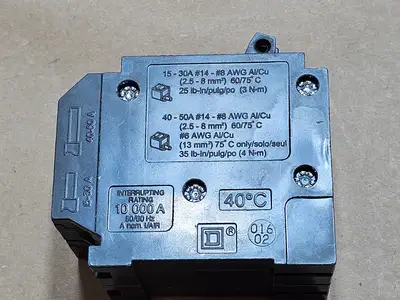

15-30A Terminal Torque: 25 lb-in (3 N-m)
Conductor Temperature Rating: 60/75°C
Operating Temperature Marking: 40°C
HACR Rated: Yes
Certification: CSA
