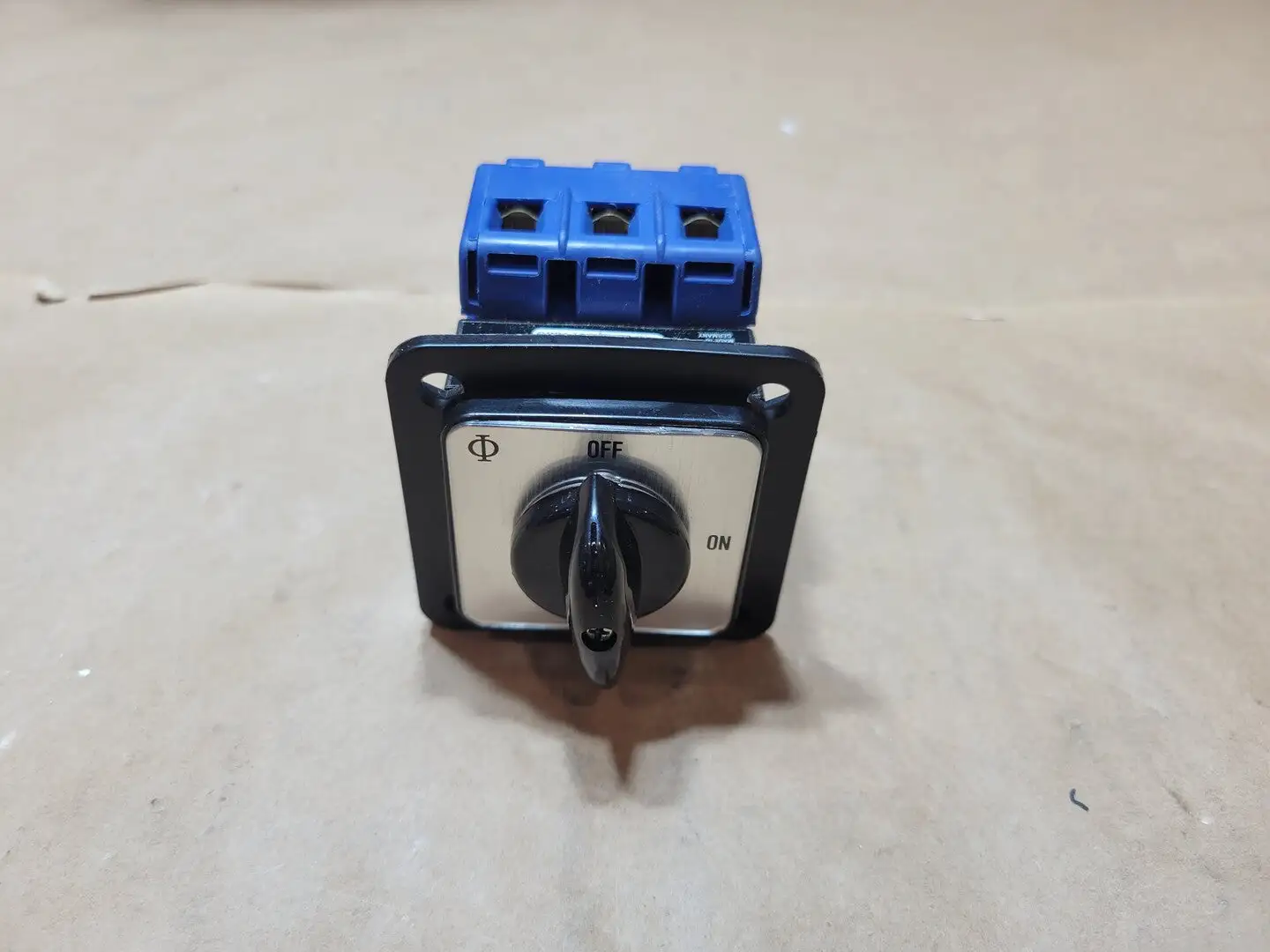

USED KRAUS & NAIMER KG64

Switch Code: K300
Additional Part Marking: L35529/001 AMS
Type: Manual motor controller / rotary disconnect switch
Operation: OFF-ON
Number of Poles: 3
IEC Thermal Current (Iu / Ith): 63 A
IEC Nominal Insulation Voltage: 690 V
AC-21A Rating: 63 A
AC-23A 3-Phase Motor Rating
220 V: 11 kW
380/440 V: 22 kW
500 V: 30 kW
690 V: 18.5 kW
AC-3 3-Phase Motor Rating:
220 V: 11 kW
380/440 V: 18.5 kW
500 V: 22 kW
690 V: 15 kW
North American General-Purpose Rating: 60 A, 600 VAC
3-Phase Motor Rating:
120 V: 5 HP
240 V: 10 HP
480 V: 20 HP
600 V: 20 HP
1-Phase Motor Rating:
120 V: 2 HP
240 V: 5 HP
480 V: 10 HP
600 V: 10 HP
Mounting: Panel mount / four-hole front mounting flange
Operator: Black rotary handle
Front Legend: OFF / ON
