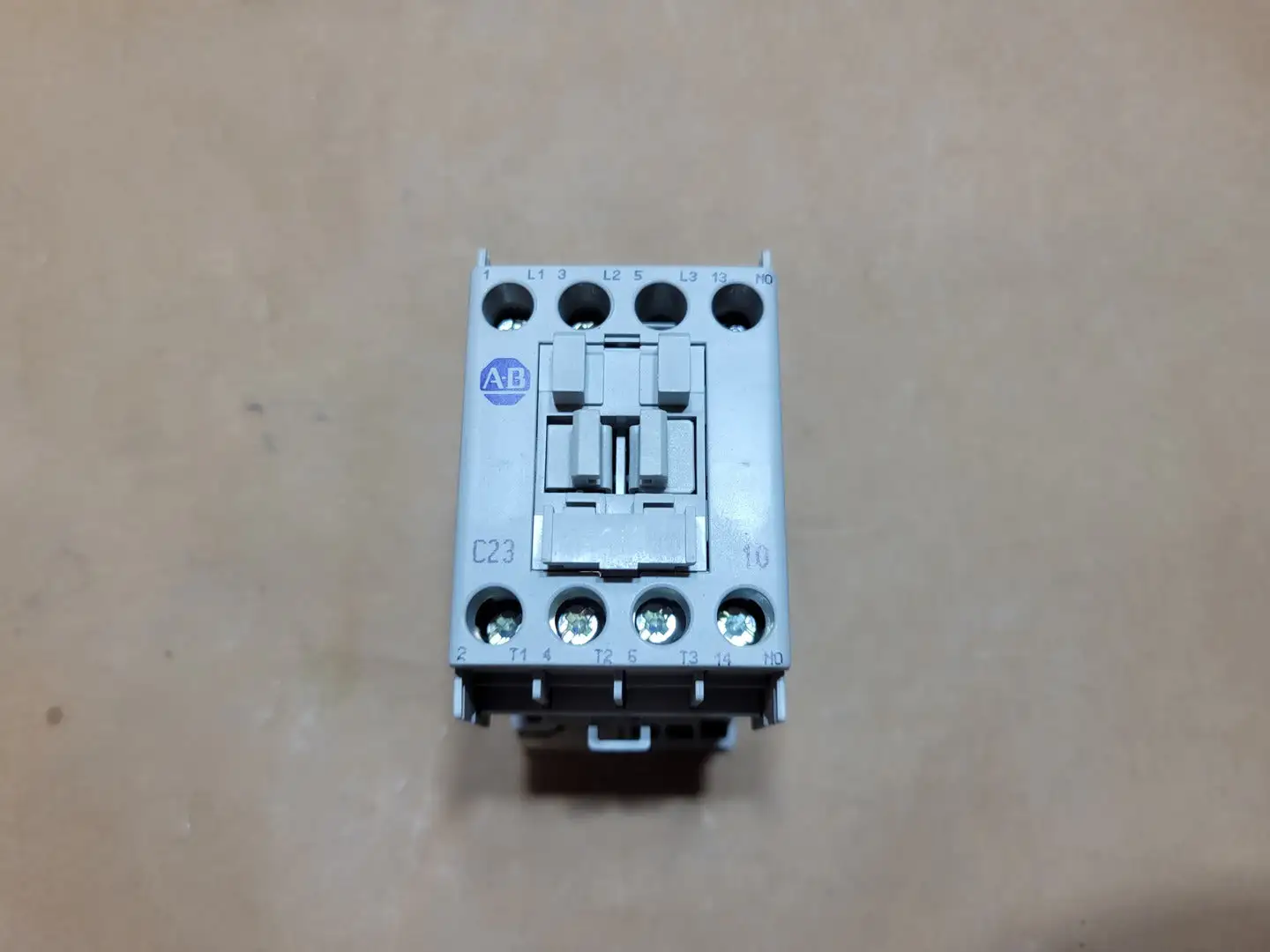

NEW ALLEN-BRADLEY 100-C23D10

Horsepower: 15 hp
Voltage: 120 volts
Amps: 32 amps
Series: C
Product Type: IEC Magnetic Contactor
Main Contacts: 3 Pole
Auxiliary Contacts: 1 Normally Open (13-14)
Coil Voltage: 110 VAC 50 Hz / 120 VAC 60 Hz
Rated Operational Current (AC-3): 23 A @ 400 VAC
Rated Operational Current (AC-1): 32 A
Motor Rating (AC-3):
7.5 kW @ 230 VAC
7.5 kW @ 240 VAC
11 kW @ 400 VAC
13 kW @ 415 VAC
10 kW @ 690 VAC
Maximum Insulation Voltage (Uimp): 6 kV
Auxiliary Contact Rating: A600 / P600
Maximum AC Voltage: 600 VAC
UL Horsepower Ratings:
2 HP @ 115 V (1 Phase)
5 HP @ 200 V (3 Phase)
7.5 HP @ 230 V (3 Phase)
15 HP @ 460 V (3 Phase)
15 HP @ 575 V (3 Phase)
Terminal Style: Screw Clamp
Mounting: DIN Rail / Panel Mount
