USED 2019 SCHAUBLIN 202 TG
Overview

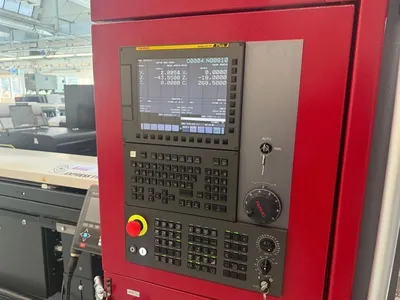

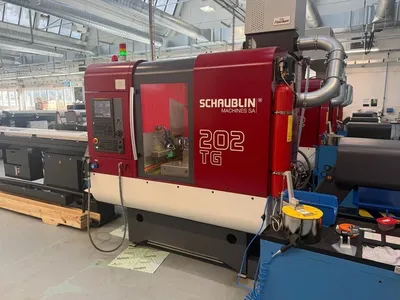

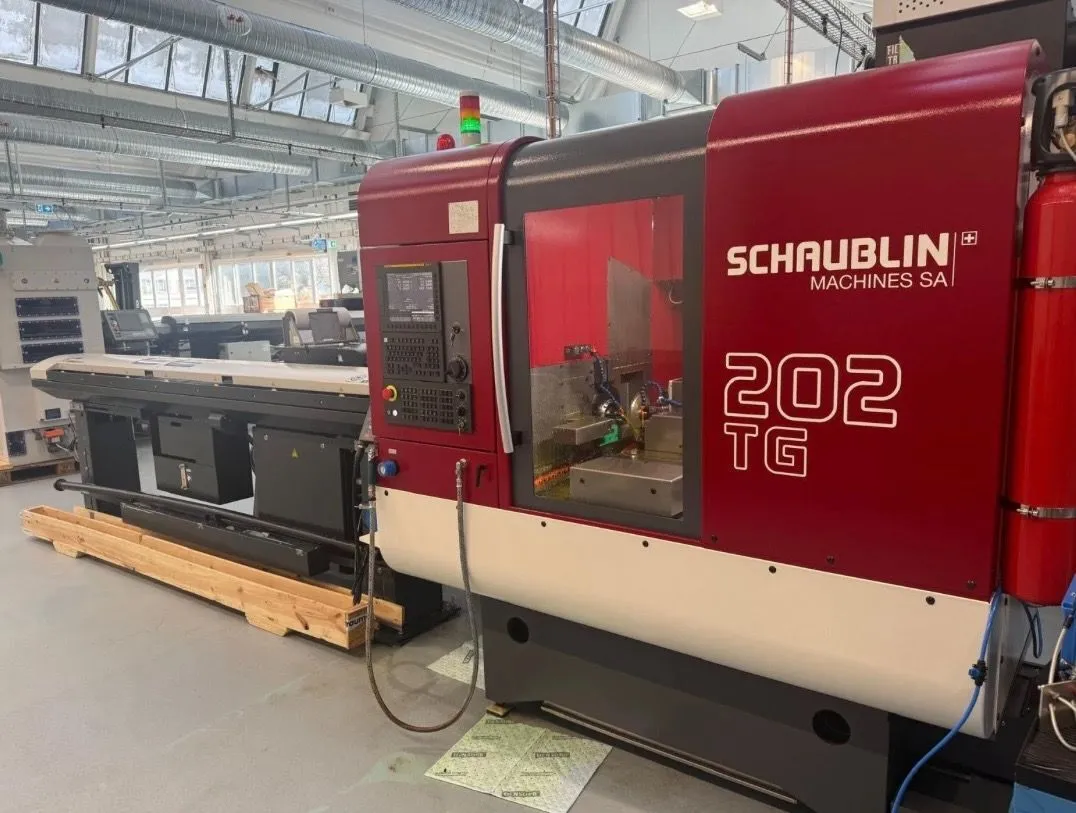

One Used SCHAUBLIN 202-TG CNC Turning, Milling and Grinding Center, New 2019 with FANUC 0i-TF PLUS. Machine Located in Europe.

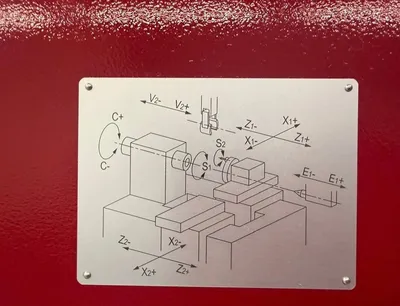

Number of axis total 3
Centre height over slide 60 mm
Travels:
Longitudinal travel (Z-axis) 300 mm
Cross travel (x-axis) 150 mm
Resolution 0.0001 mm
Rapid traverse Z 20 m/min
Rapid traverse X 20 m/min
Number of positions
Fixed tools turret 6
Driven tools turret 6
Inner taper type W25
Collet bore 19 mm
C axis (spindle,resolution) 0.0001 °
Spindle speeds:
up to 7000 t/min
Spindle power 5 / 6 kW
Torque max. 26.1 / 35.1 Nm
Voltage 50 Hz 3x 400 Volt
Machine's weight about 3000 kg
Overall dimensions machine:
Length 1930 mm
Width 1300 mm
Height 2040 mm
Various accessories:
Coolant system
Interface Ethernet
Chip conveyor
Parts catcher

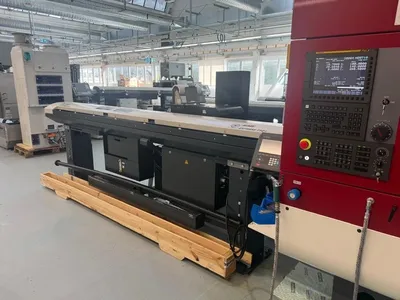

Loader LNS Express 112+
Rinsing Guns
Fire extinguishing system
Specifications subject to buyer confirmation
