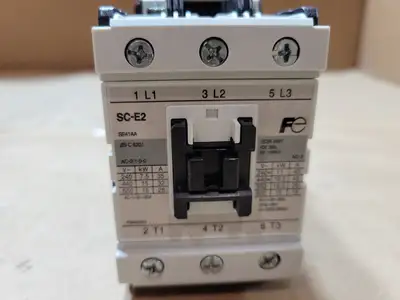

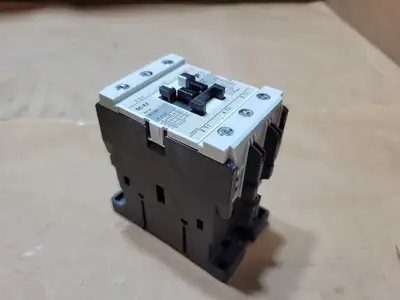

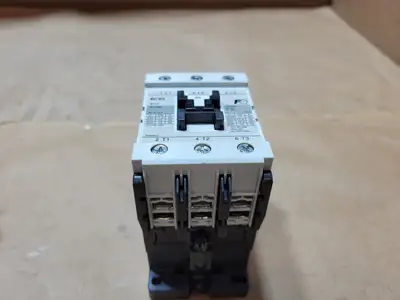

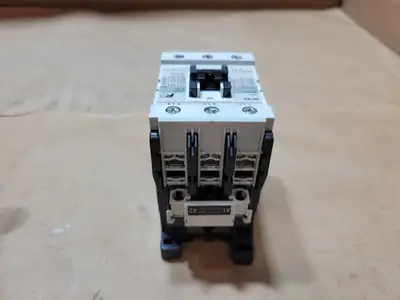

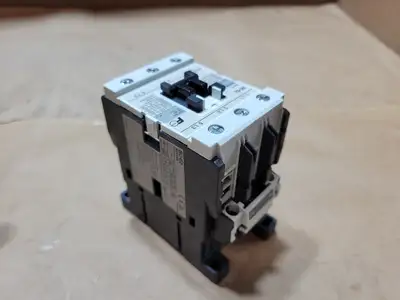

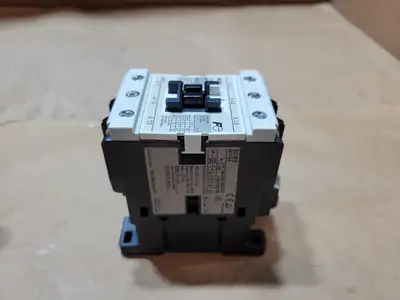

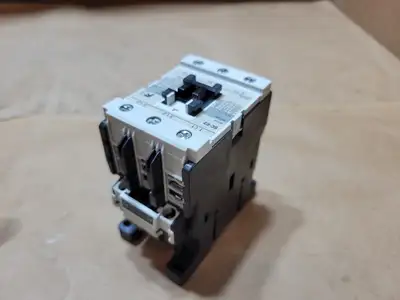

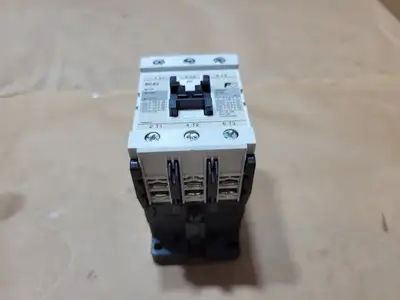

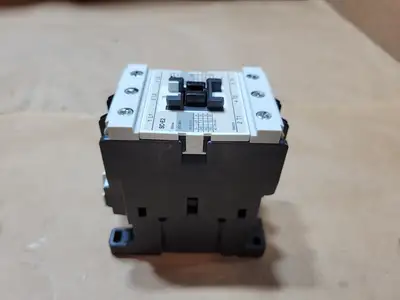

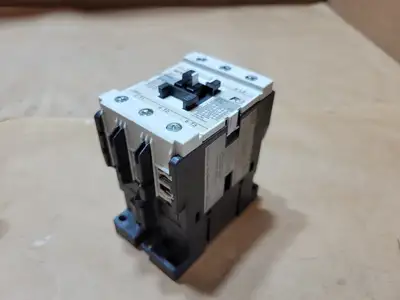

NEW FUJI ELECTRIC SC-E2

Horsepower: 30 hp
Voltage: 600 volts
Amps: 70 amps

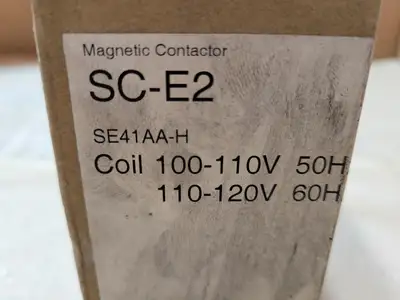

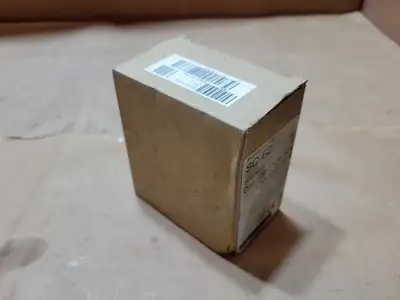

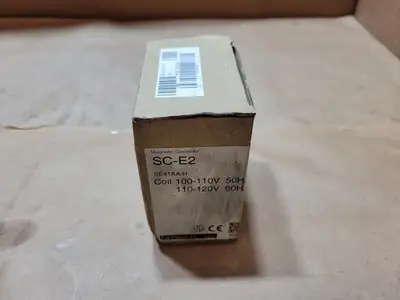

Catalog Code (Box): SE41AA-H
Device Type: IEC Magnetic Contactor
Number of Poles: 3
Main Contacts: 3 Normally Open (NO)
Rated Operating Current (AC-3): 40 A (240 V & 440 V)
Continuous Current (AC-1 / Ith): 60 A

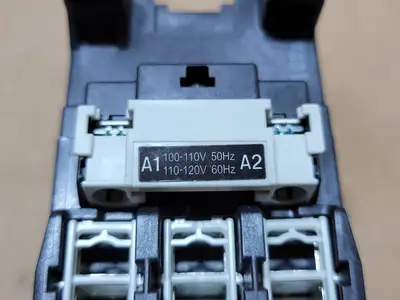

Coil Voltage: 100-110 VAC 50 Hz / 110-120 VAC 60 Hz

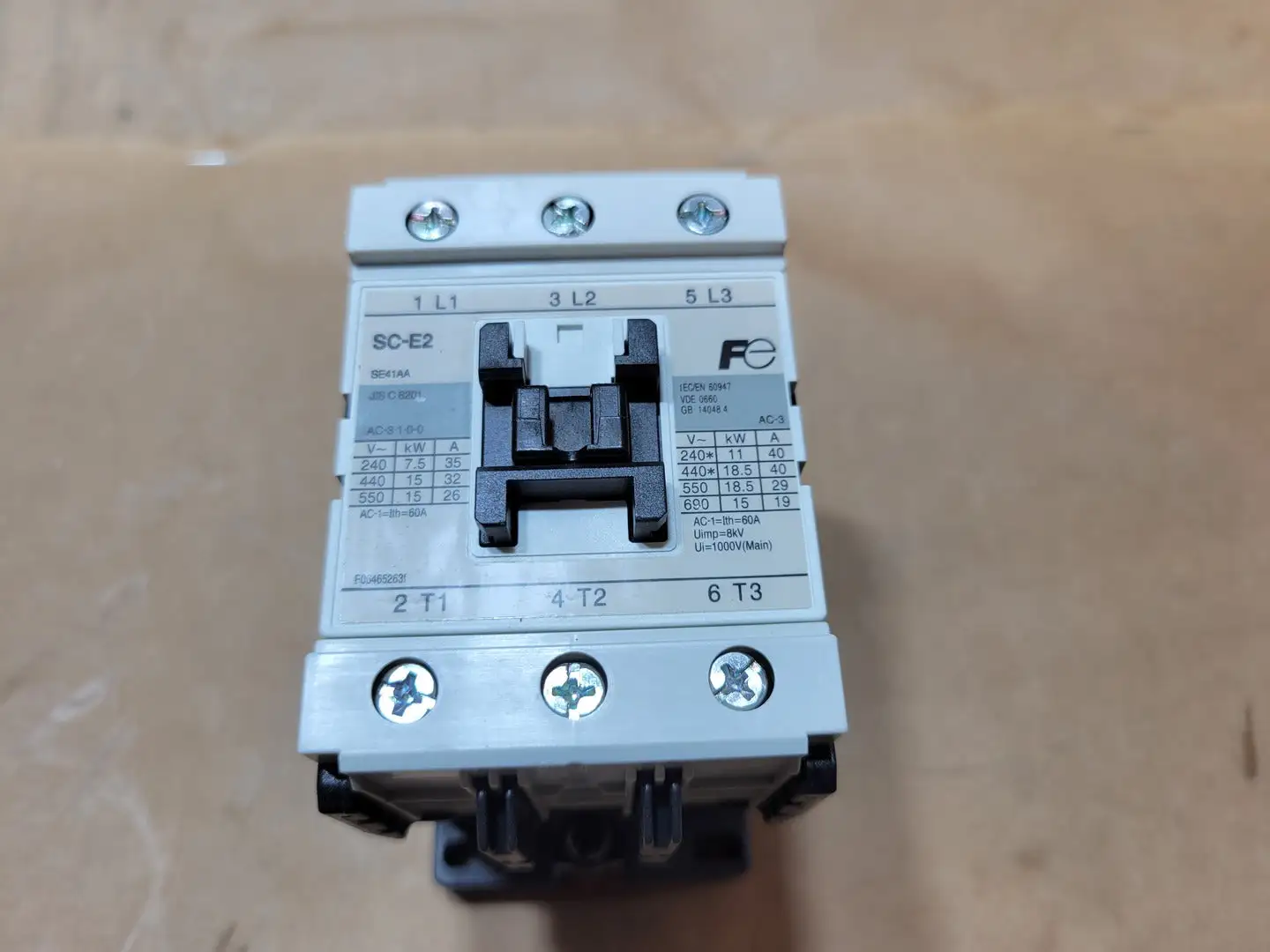

Rated Motor Capacity (AC-3):
240 VAC: 11 kW
440 VAC: 18.5 kW
550 VAC: 18.5 kW
690 VAC: 15 kW

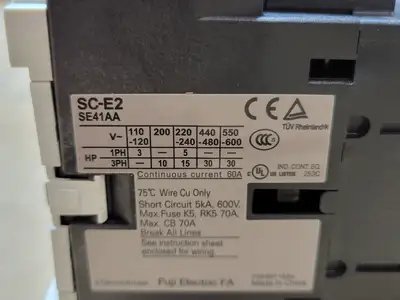

Horsepower Rating:
110-120 V 1ph: 3 HP
220-240 V 3ph: 15 HP
440-480 V 3ph: 30 HP
550-600 V 3ph: 30 HP
Maximum Operating Voltage (Ui): 1000 V
Impulse Withstand Voltage (Uimp): 8 kV
Short Circuit Rating: 5 kA, 600 V
Maximum Fuse: Class K5/RK5 70 A
Maximum Circuit Breaker: 70 A
Wire Rating: 75°C Copper Conductors Only
Standards: IEC/EN 60947-4-1, UL Listed, CE, TUV Rheinland, CCC
