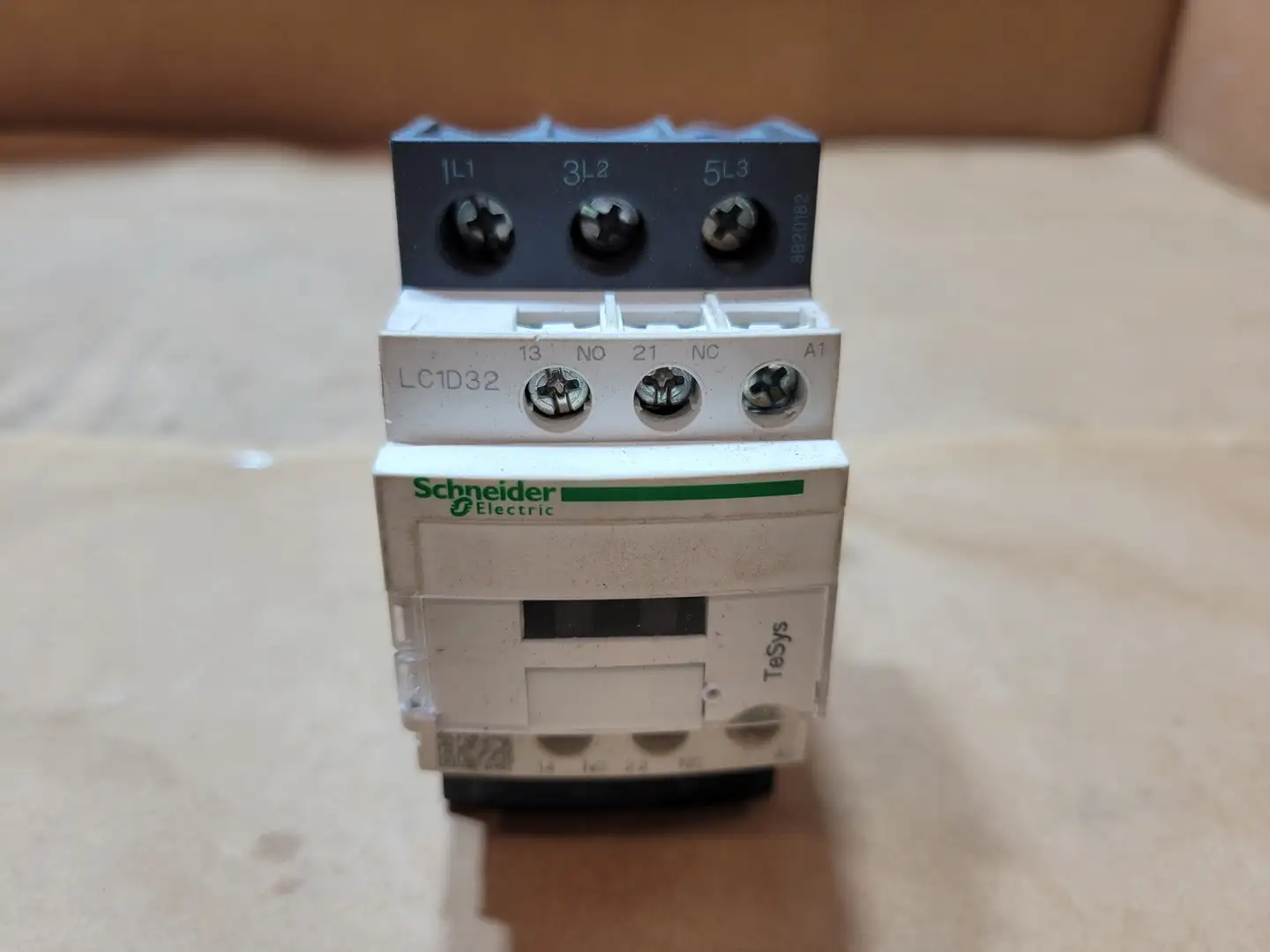

NEW SCHNEIDER ELECTRIC LC1D32G7

Horsepower: 25 hp
Voltage: 600 volts
Amps: 32 amps
Series: TeSys D (TeSys Deca)
Model: LC1D32G7
Product Type: IEC Magnetic Contactor
Power Poles: 3
Main Contacts: 3 Normally Open (3NO)
Auxiliary Contacts: 1 NO + 1 NC (integral)
Rated Operational Current (AC-3): 32 A
Rated Thermal Current (Ith): 50 A
Control Coil Voltage: 120 VAC, 50/60 Hz
Rated Operational Voltage (Power Circuit): Up to 690 VAC
Rated Impulse Withstand Voltage (Uimp): 6 kV
Motor Rating (AC-3):
7.5 kW @ 230 V
15 kW @ 400/415 V
18.5 kW @ 500-690 V
Horsepower Rating:
20 HP @ 480 VAC
25 HP @ 600 VAC (per UL table)
Power Terminal Markings: L1, L2, L3 / T1, T2, T3
Coil Terminals: A1 / A2
Mounting: Panel/DIN rail compatible
