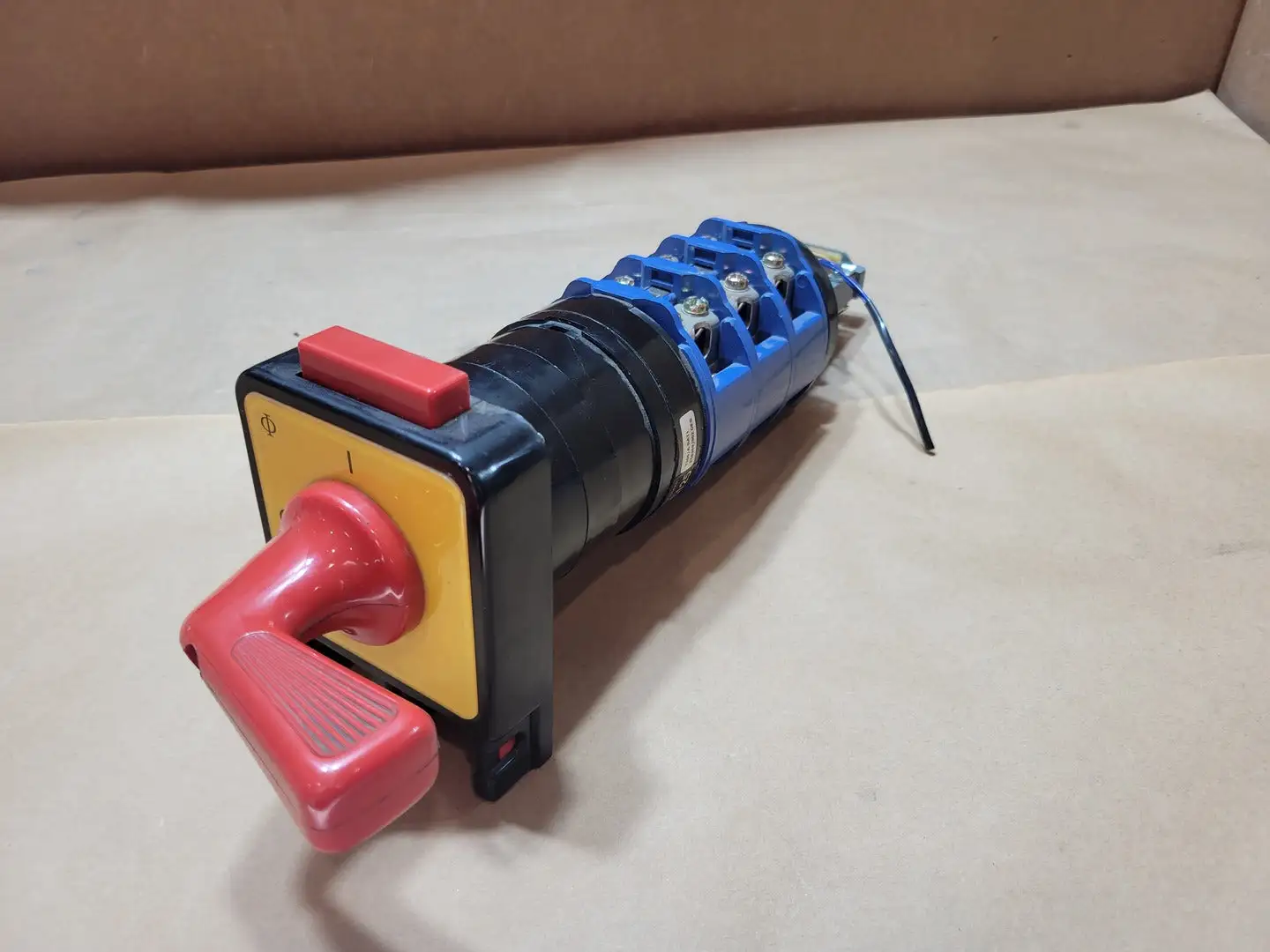

USED KRAUS & NAIMER C125

Series: C125
Switch Type: Rotary cam switch / switch-disconnector
Operating Positions: 0-I / OFF-ON
Operating Angle: Approximately 90°
Rated Continuous Current (Iu/Ith): 150 A
Conventional Enclosed Thermal Current: 150 A
Rated Insulation Voltage (Ui): 690 V AC/DC
Rated Impulse Withstand Voltage (Uimp): 6 kV, based on current C125 data
Utilization Category AC-21A: 150 A at up to 690 V
Rated Short-Time Withstand Current (Icw): 2,000 A for 1 second
Maximum IEC Fuse Rating: 200 A gG
Contact Material: Silver, based on the C125 series specification
Terminal Type: Screw terminals
Handle Style: Red pistol-grip rotary handle
Faceplate Colour: Yellow
