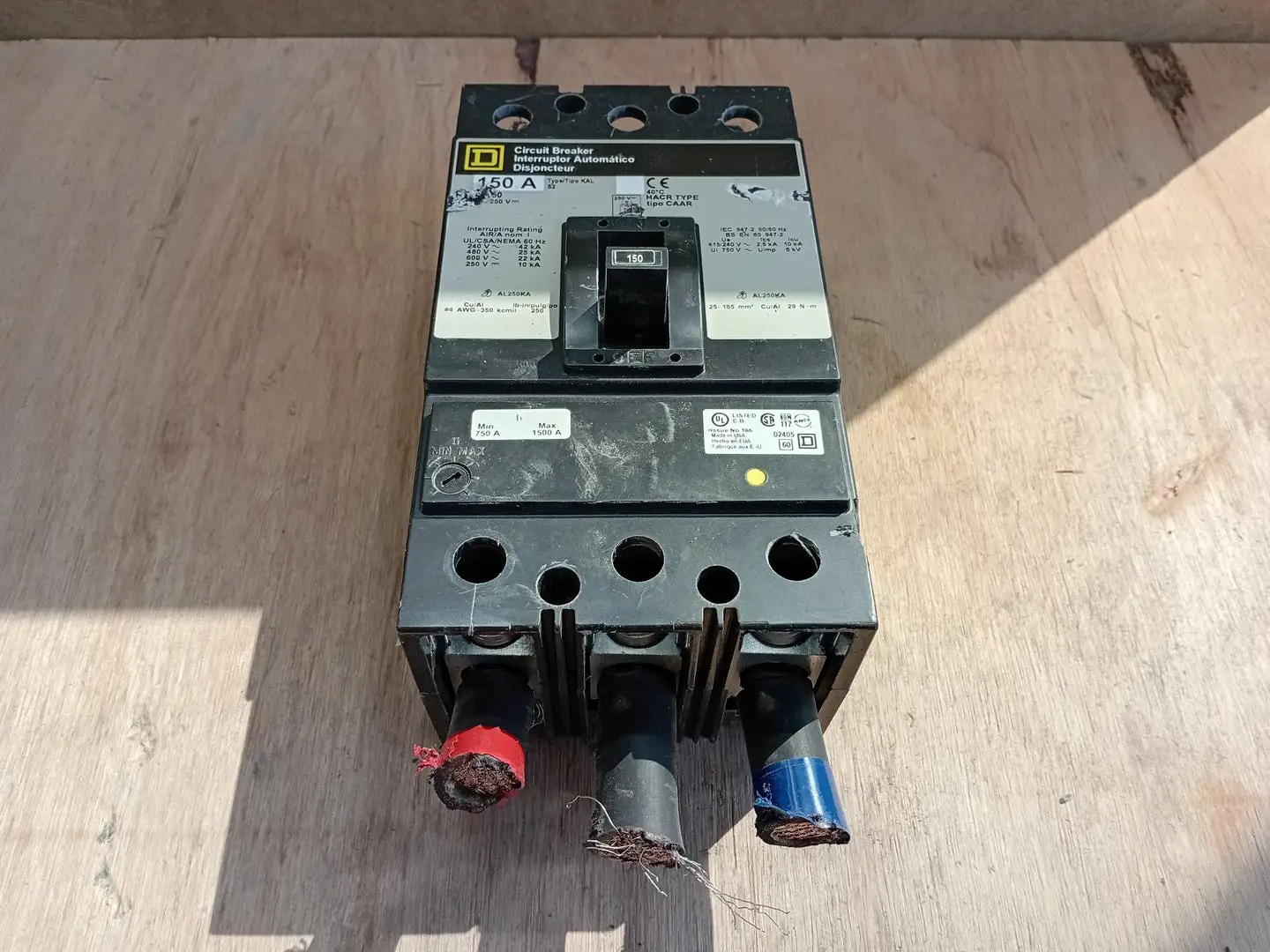

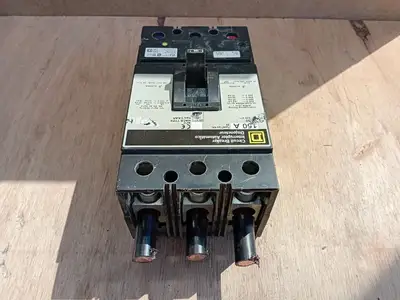

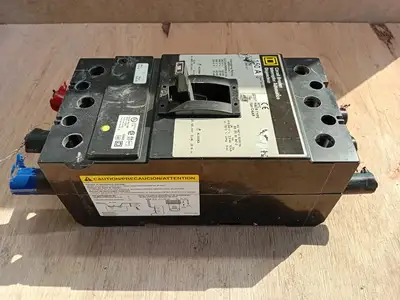

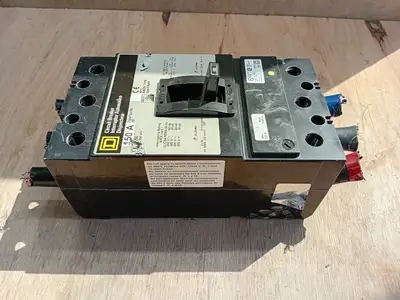

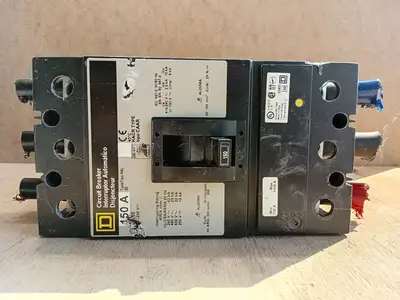

USED SQUARE D KAL36150

Amps: 150 amps
Series: KAL
# of Poles: 3
Mounting Style: Bolt-On
Voltage: 600 volts
Phase: 3-phase
Series / Type: KAL, S2
DC Voltage Rating: 250 VDC
Frequency: 60 Hz under UL/CSA/NEMA ratings
Trip Type: Thermal-magnetic

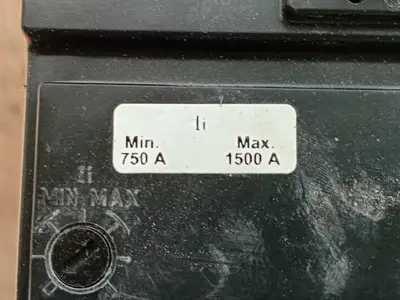

Instantaneous Pickup (Ii): Adjustable 750-1500 A
Temperature Rating: 40°C
HACR Rating: HACR Type

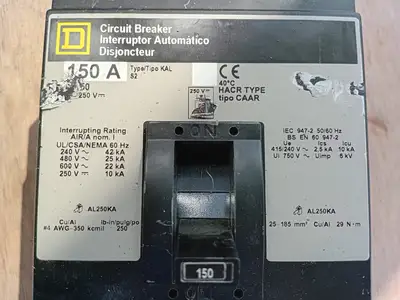

Interrupting Rating:
42 kA at 240 VAC
25 kA at 480 VAC
22 kA at 600 VAC
10 kA at 250 VDC
IEC Standard Marking: IEC 947-2 / BS EN 60947-2
IEC Ue: 415/240 VAC
IEC Ics: 2.5 kA
IEC Icu: 10 kA
Ui: 750 V
Uimp: 6 kV
Terminal/Lug Type: AL250KA
Conductor Material: Cu/Al
Conductor Range: #4 AWG-350 kcmil
Metric Conductor Range: 25-185 mm2
Terminal Torque: 250 lb-in / 29 N-m

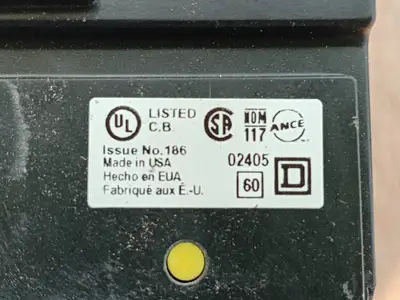

Certifications Visible: UL Listed, CSA, NOM/ANCE, CE
