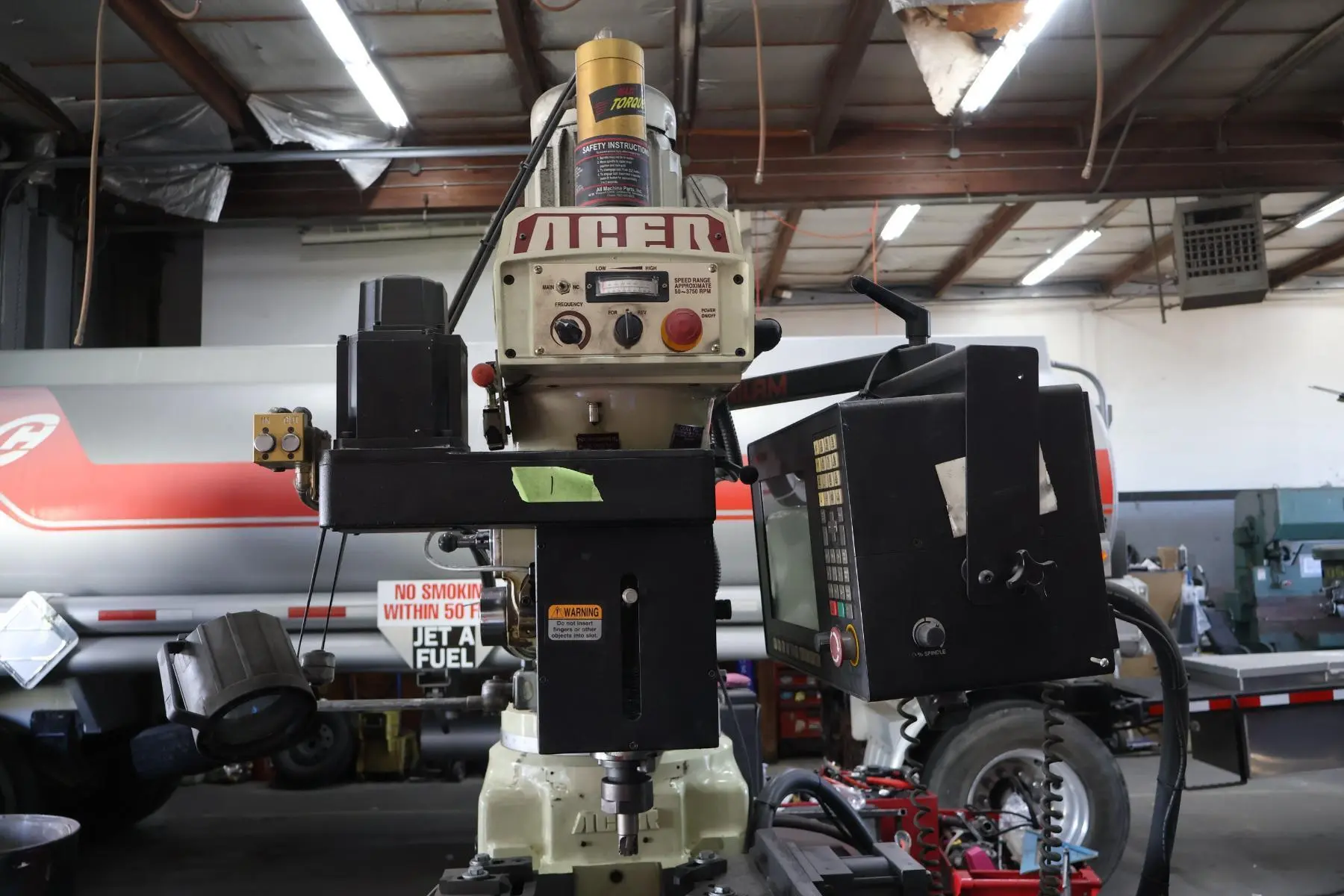

USED 2006 ACER GROUP EVS-5VK

Bridgeport Style Knee Mill
2-Axis CNC Control
OEM: Acer Group (Taiwan)
Model No.: EVS-5VK (E-Mill)
DOM: 2006
Electrics: 480 Volt, 3 Phase, 60 Cycle
Main Spindle: 5 HP

Features and Specifications:
...CNC Control: Anilam 3000M
…Table Size: 50 " x 10"
…Travels (approx.):
…..X-Axis (longitudinal): 33”
…..Y-Axis (cross feed): 16”
…..Z-Axis (knee): 19”
…..Quill: 5”
…..Ram: 20”
…Variable-Speed Drive:
......Frequency Speed Control
......50 - 3750 RPM
…Quill Feeds (IPR): .0015, .003, .006
...Quill Diameter: 4" (chromed)
…Workpiece Load (max): 1,000 lbs.
…Spindle Direction Switch
…Spindle Taper: NST#40
…Knuckle Joint for Head Tilt
......45° Front-to-Back
......90° Left-to-Right
…1-Shot Lube (Centralized Lube System)
…Pneumatic Draw Bar
…Sump in Base

Equipment Dimensions (approx.): 72” x 65” x 96”
Equipment Weight (approx.): 3,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine is coming out of a large manufacturing house in Portland, OR. Selling surplus equipment that he has in inventory. Machine is disconnected from power; machine was a good runner until decommissioning.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is available for inspection.
Seller will load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide shipping quotations.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
