NEW 2000 OKAMOTO DCG-4020-NC
Overview

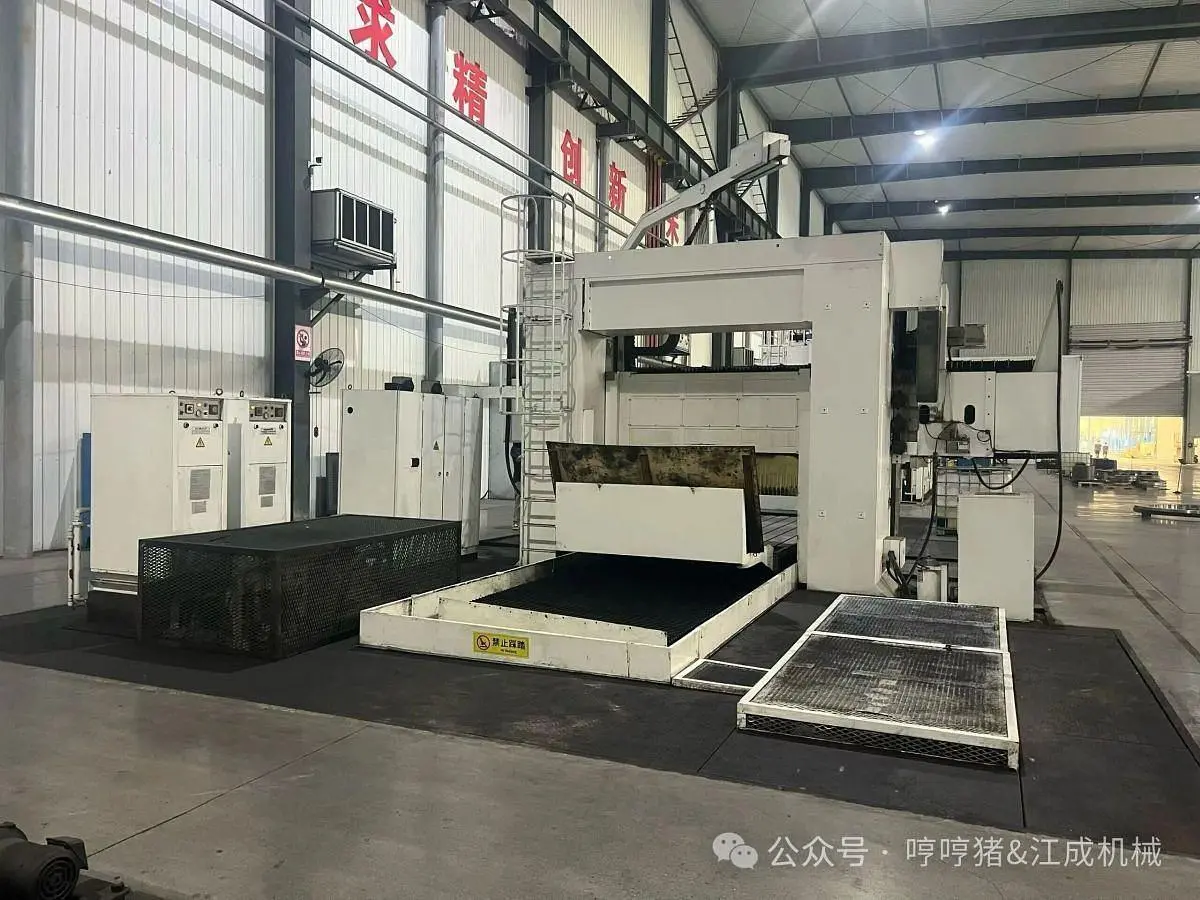

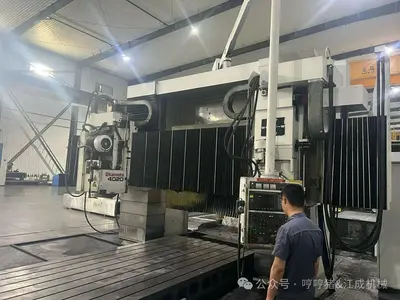

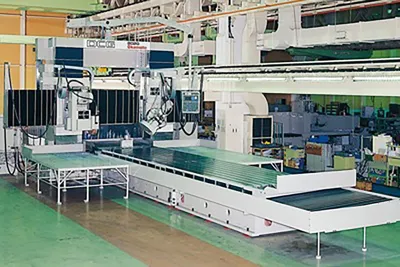

2000 DCG-4020NC CNC Double-Column Surface and Guideway Grinding Machine
To achieve high-precision grinding across the entire table surface, the cross rail is equipped with our original adjustment mechanism to maintain straightness. Since post-assembly adjustment of the cross rail’s straightness is difficult, we perform repeated pre-grinding to set tendency alignment. This mechanism allows adjustments to be made without removing the cross rail, even years after delivery when adjustments become necessary.
Specs
Standard Chuck / Table Size: 4,000 × 2,200mm 157.48" X 86.6"
Maximum Travel: 4,000 mm 157.48"
Maximum Machining Height (from table surface): 700 mm 27.56"
Maximum Machining Height (from magnetic chuck): 600 mm 23.62"
Gantry Width: 2,500 mm 98.43"
WorkTable Feed Speed: 4 to 30 m/min 157" to 1,181.1"/min
Maximum Worktable Load: 9,000 kg 19,800 lbs
Machine Type: Double-column gantry guideway grinder
designed for precision grinding of large
machine tool components and composite guideways
Equipped With
FANUC CONTROL
