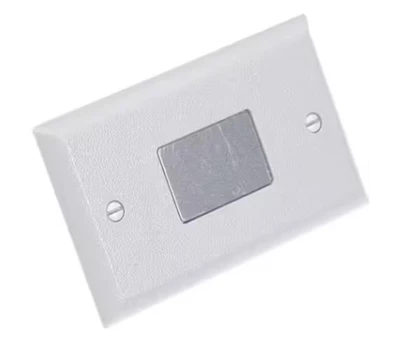

AAON ASM02227 Standard Room Temp Sensor, 3-Wire (OE210) [New]

The AAON ASM02227 Standard Room Temperature Sensor (alt ref OE210) is a 3-wire wall-mounted space temperature sensor for the AAON/WattMaster Orion Controls system. Its patented design allows flush wall mounting while rejecting the influence of surface and internal wall temperatures, providing accurate sensing of the actual room temperature. It is used with AAON Unit Controllers and VAV/Zone Controllers, with wire terminals provided on the sensor for connection to the controller.

The ASM02227 is the base model of the Standard Room Temperature Sensor family (which also includes setpoint-adjust and override variants such as the ASM01643). It mounts to a vertical 2" x 4" electrical box recessed in the wall, or to a plastic surface-mount box where the wall cannot be penetrated.

* Brand / Manufacturer: AAON (Orion Controls / WattMaster)
* Part Number: ASM02227 (alt ref OE210)
* Product Type: Standard Room Temperature Sensor, 3-wire
* Sensor Element: Type III thermistor, 10k ohm @ 77°F
* Accuracy: 0.4°F between 40°F and 95°F
* Range: -30°F to 150°F
* Line Loss: 0.25°F max error using 22 AWG wire at 1,000 ft
* Mounting: Flush wall mount, vertical 2" x 4" handy box (by others)
* Weight: 4 oz; one-year warranty
* Condition: New

A standard OEM space sensor for AAON rooftop unit and VAV/zone control applications.. Aaon. Aaon Inc. ASM02227.
