USED 2018 HOLZ-HER "SPRINT 1329 PREMIUM"

Lot Closes:: 9/29/2026 9:00:00 AM PT

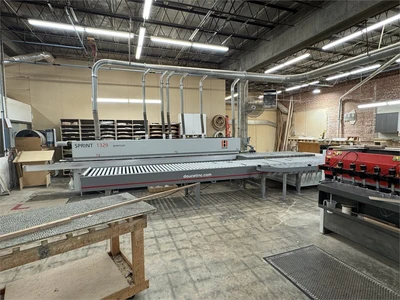

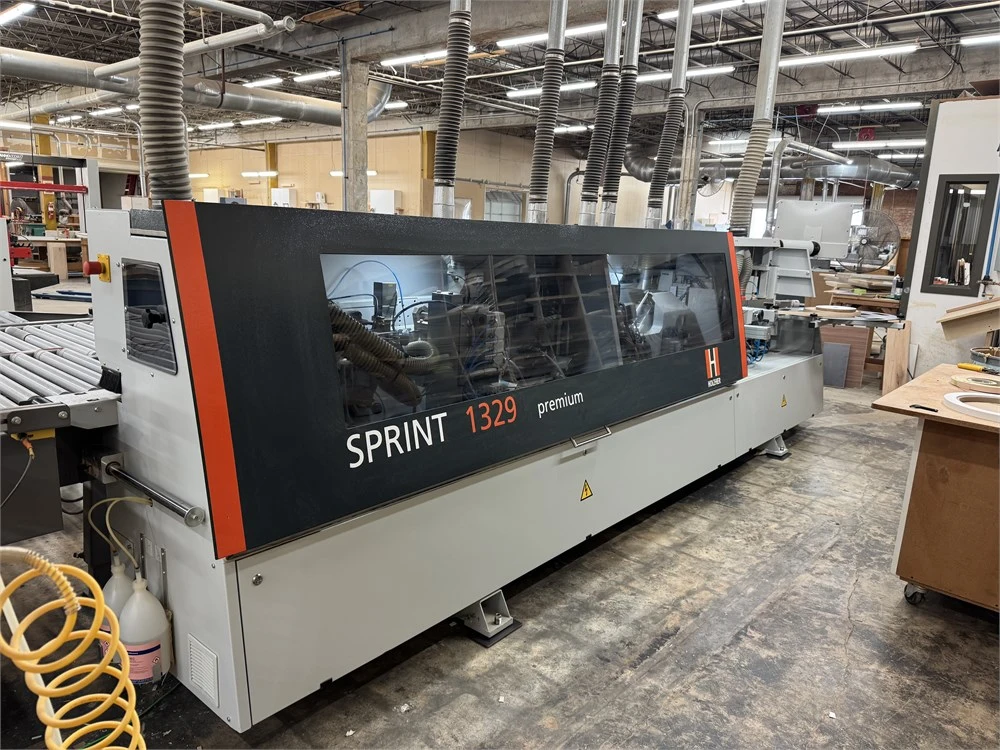

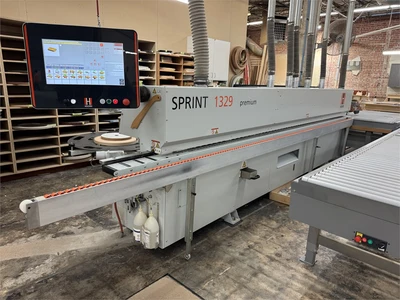

Holz-her "Sprint 1329 Premium" Edgebander
Edgebanding capacity: strip edge thickness min./max. 0.4 mm - 15 mm (0.016" - 0.59"), coiled thickness min./max. 0.4 mm - 3 mm (0.016" - 0.16"); Panel thickness 8 mm - 60 mm (0.24" - 2.4"); panel minimumwidth 60 mm (2.4"); panel minimum length 160 mm (6.3"); feed speed 10 - 18 MPM (33 - 59 FPM).

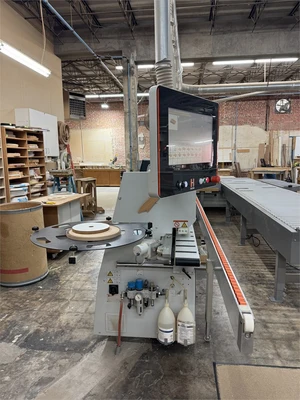

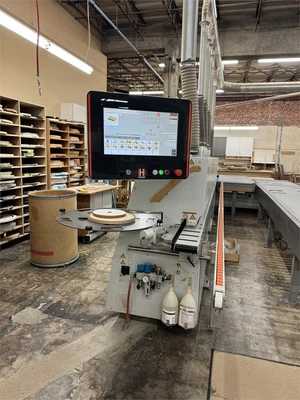

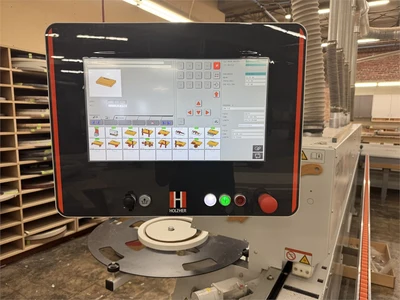

Holz-Her PPC 315 "EDGE CONTROL TOUCH" Electronically controlled set-up processes.  18.5" Flat Touch Screen with graphic display of machining process. Simple operation;  rotating and swiveling control panel at eye height; programs can be easily created and recalled at will; graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed.
Edgebanding infeed table

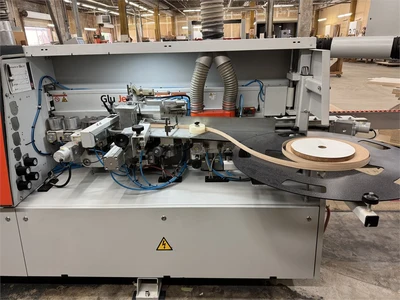

Edge Feeder Magazine:  "SYNCRO" drive. The new magazine with its synchronous adaptation to the feed rate guarantees short intervals between work pieces and simultaneously optimizes edging protrusions. Small 3° feed angle thanks to nozzle design with easy feeding of coils and strips. Exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety.
Adjustable infeed fence with idle rollers

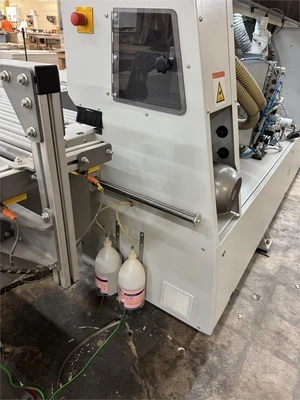

Anti-adhesive spray station
Pre-Milling Station (1802): (2) 2.7 HP motors operating @ 12,000 RPM; equipped with "ProLock" quick-change flange including height adjustment for optimum utilization of cutters.

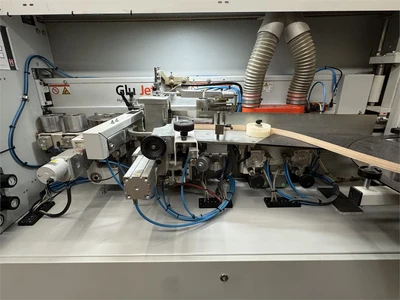

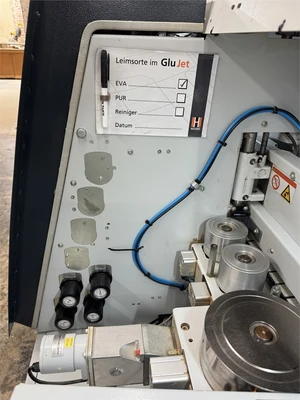

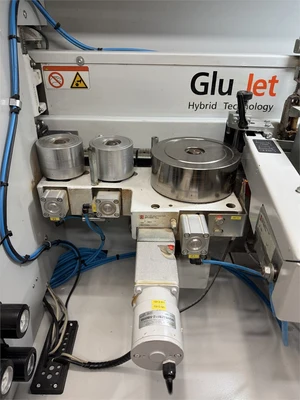

Gluing Station (GJ301): "Glue Jet" thin film technology processes "EVA" or "PUR" Glue, motorized, programmable glue nozzle (upper glue line) height positioning.
Pressure Station (1913): Servo controlled pressure section with (1) large driven roller and (2) cantered idle rollers. Straight and tapered pressure rollers for perfect glued joints.
End Trimming Station (1918): Front and rear 2 x 0.5 HP motors operating @ 9,000 RPM, uni-point swivel-axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" programmable pneumatic change-over from flush to bevel.
Top/bottom Trimming Station (1826): Servo controlled, 0.9 HP motors operating @ 12,000 RPM. Uni-Point design, pneumatic.
(2) Motor Corner Rounding Station (1833): Servo motor programmable positioning, 0.30 HP motors operating @ 9000 RPM for up to 3 mm edge thickness and work-piece thickness min./max. 8 - 60 mm (0.31 - 2.36"), max. feed speed 18 MPM (60 FPM).
Profile Scraping Station (1929): knife position for PVC edges, reversible insert carbide knives, equipped with air-jet blowers and chip collector box.
Glue Scraping Station (1964): Flat, top/bottom, ball bearing guided and pneumatic controlled.
Buffing Station (1940): Top and bottom buffing motors with 150 mm (6.0") cloth buffing wheel diameter, adjusts in any direction (vertical tilt is 0° - 5°, horizontal swivel is 0° - 20°); 1,440 RPM wheel rotation.  Spray lubrication.

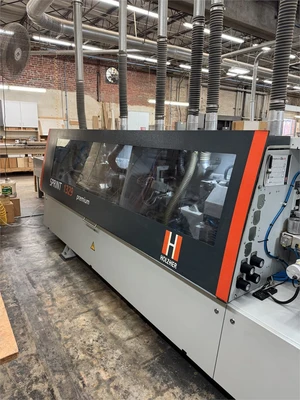

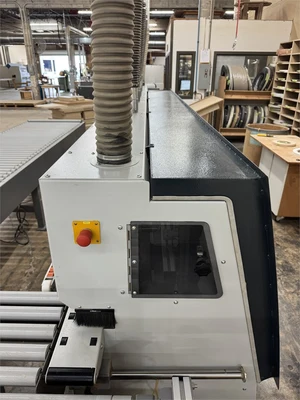

Sound enclosure

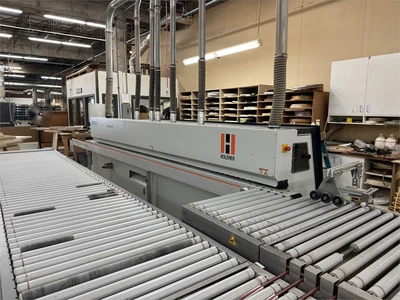

Outboard roller support
DUST MANIFOLD INCLUDED
FLEX HOSE AND RETURN CONVEYOR NOT INCLUDED
