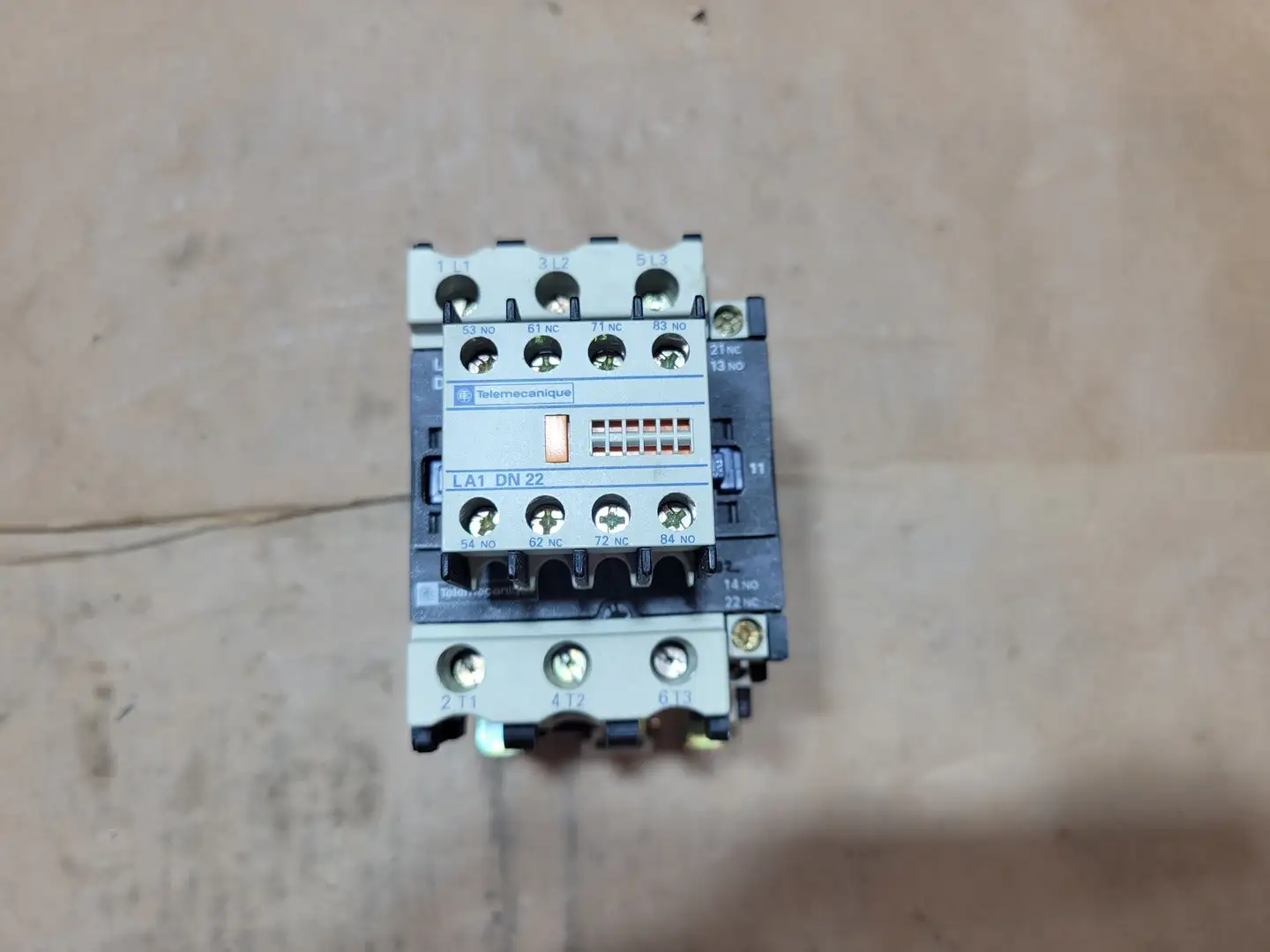

USED TELEMECANIQUE LC1-D4033F7

Horsepower: 30 hp
Voltage: 600 volts
Amps: 60 amps
Auxiliary Contact Block: LA1 DN22
Equipment Type: Magnetic motor contactor with front-mounted auxiliary contact block
Number of Main Poles: 3
Thermal Current (Ith): 60 A
Rated Insulation Voltage (Ui): 1000 V
Rated Impulse Withstand Voltage (Uimp): 8 kV
Motor Duty Category: AC-3 (confirmed)
AC-3 Motor Ratings (3-Phase):
230 V: 11 kW
400 V: 18.5 kW
500 V: 22 kW
690 V: 30 kW
UL Continuous Current: 60 A
UL Maximum Voltage: 600 VAC
Horsepower Ratings (UL):
240 V Single-Phase: 5 HP
20-240 V Three-Phase: 10 HP
480-600 V Three-Phase: 30 HP
Auxiliary Contact Configuration (Built-in Contactor):
1 NO (13-14)
1 NC (21-22)
LA1 DN22 Auxiliary Contact Block Configuration:
53-54 NO
61-62 NC
71-72 NC
83-84 NO
Auxiliary Contact Block Thermal Current: 10 A
Auxiliary Contact Block Rated Insulation Voltage: 690 V
Standards Markings: IEC 947, EN 60947, UL Listed, CSA, CE
Mounting: Panel / DIN rail compatible
Coil Code: F7
