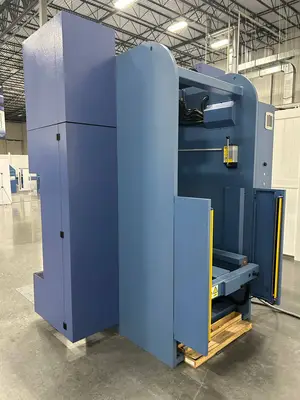

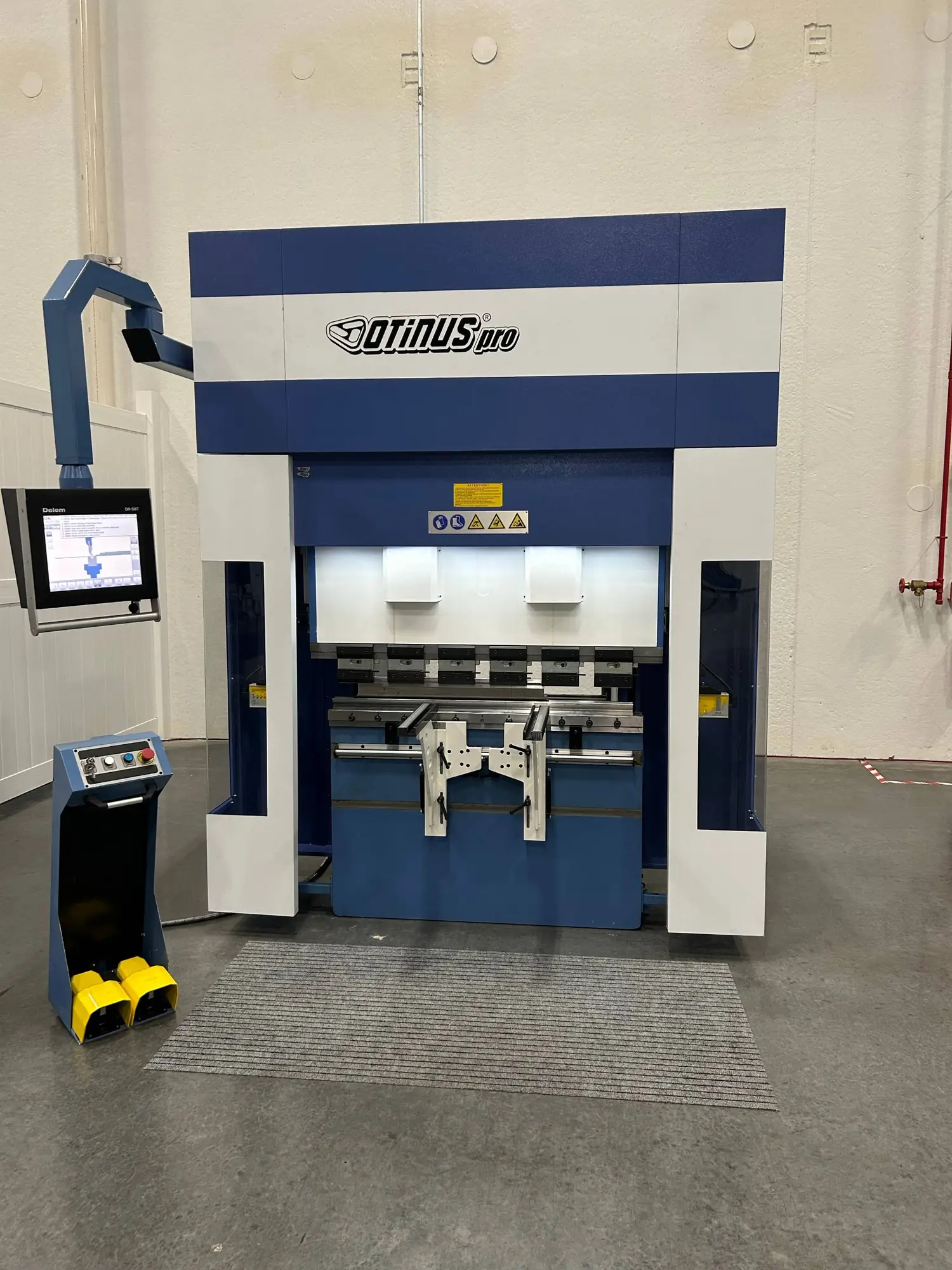

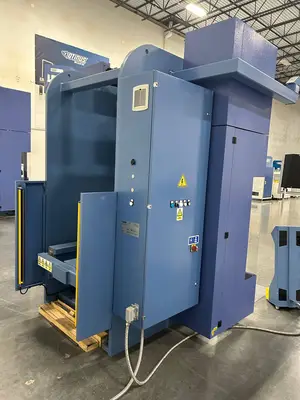

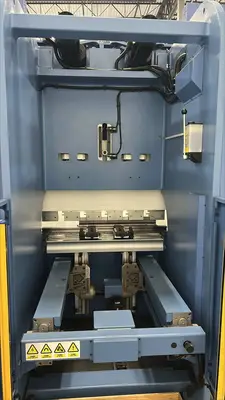

NEW 2023 OTINUS PBE-1204-DA58

The 2023 Otinus PBE-1204-DA58 press brake features a full size of 77 x 57 x 103 inches (1960 x 1450 x 2620 mm) and a total weight of 8900 lb (4000 kg). It provides a bending capacity of 44 US tons with a maximum working length of 4 ft (1250 mm). The distance between side frames is 43 inches (1100 mm), with a throat depth of 12 inches (300 mm), a maximum ram stroke of 8 inches (210 mm), and daylight of 16 inches (410 mm). The backgauge retract distance is 29.5 inches (750 mm). Powered by a motor with a nominal power of 2.0 kW, the machine operates at an access speed of 5.9 in/s (150 mm/s), a bending speed of 0.4 to 0.8 in/s (10 to 20 mm/s), and a return speed of 5.9 in/s (150 mm/s).
