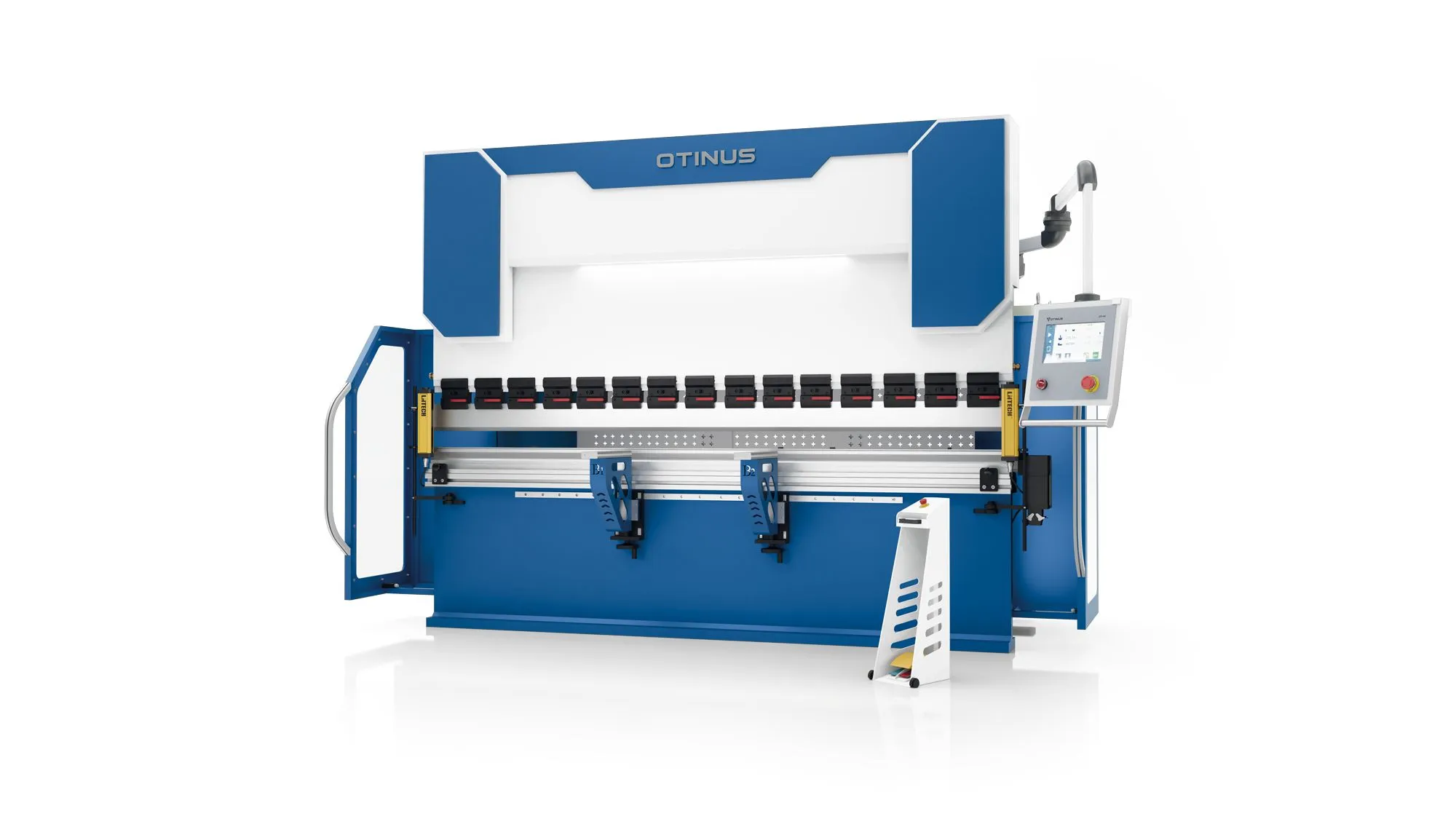

NEW 2024 OTINUS PBO-1604-OT41

The 2024 Otinus PBO-1604-OT41 CNC press brake features overall dimensions of 102.4 in (2600 mm) in length, 66.9 in (1700 mm) in width, and 78.7 in (2000 mm) in height, with a total weight of 6,834 lb (3.1 t). It delivers a pressing force of 44.1 US tons (400 kN / 40 t) powered by a 5.4 hp (4 kW) motor and utilizes an oil tank capacity of 31.7 gal (120 L). The machine provides a bending length of 63.0 in (1600 mm), a distance between frames of 55.1 in (1400 mm), a side frame width of 47.2 in (1200 mm), and a table height of 28.3 in (720 mm). Operational dimensions include a daylight opening of 13.4 in (340 mm), a stroke of 3.94 in (100 mm), and a throat depth of 7.87 in (200 mm). Performance speeds are rated at an approach speed of 3.15 in/s (80 mm/s), a bending speed of 0.24 in/s (6 mm/s), and a return speed of 2.76 in/s (70 mm/s).
