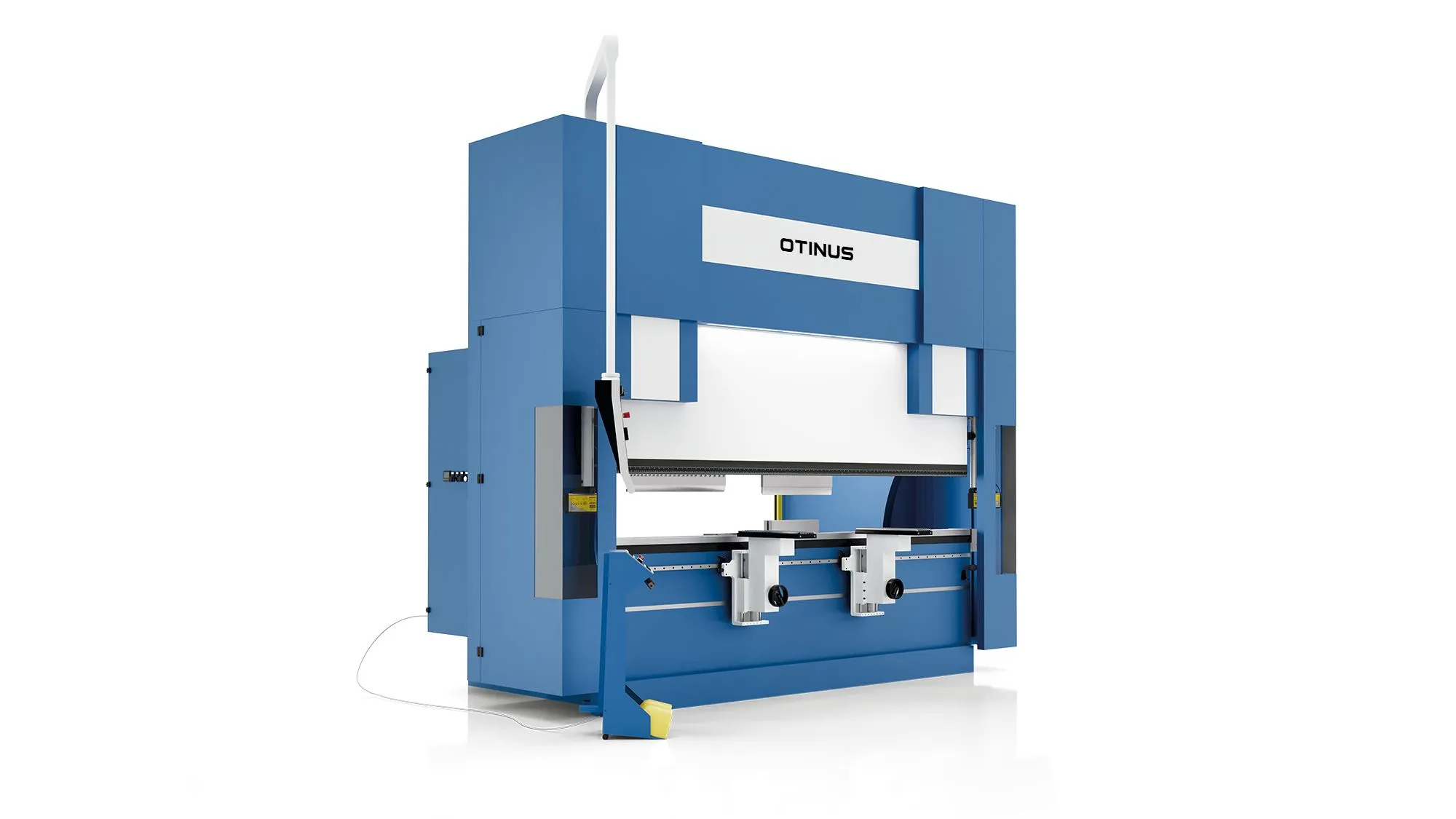

NEW 2023 OTINUS PBO-3722-DA66T

The 2023 OTINUS PBO-3722-DA66T press brake features a full size of 209 x 96 x 120 in (5320 x 2430 x 3045 mm) and a total weight of 26,350 lb (11,950 kg). It delivers a pressing force of 243 US tons (2200 kN / 220 t) powered by a 25 hp (18.5 kW) motor and supported by a 77 gal (290 L) oil tank. Operating speeds include an approach speed of 7.1 in/s (180 mm/s), a bending speed of 0.4 in/s (10 mm/s), and a return speed of 5.5 in/s (140 mm/s). Additional dimensions and specifications include a bending length of 146 in (3700 mm), a distance between columns of 126 in (3200 mm), a stroke of 10 in (260 mm), daylight/opening of 18 in (465 mm), a throat depth of 16 in (410 mm), and a working table height of 38 in (970 mm).
