NEW 2023 OTINUS PBO-3722-DA69T

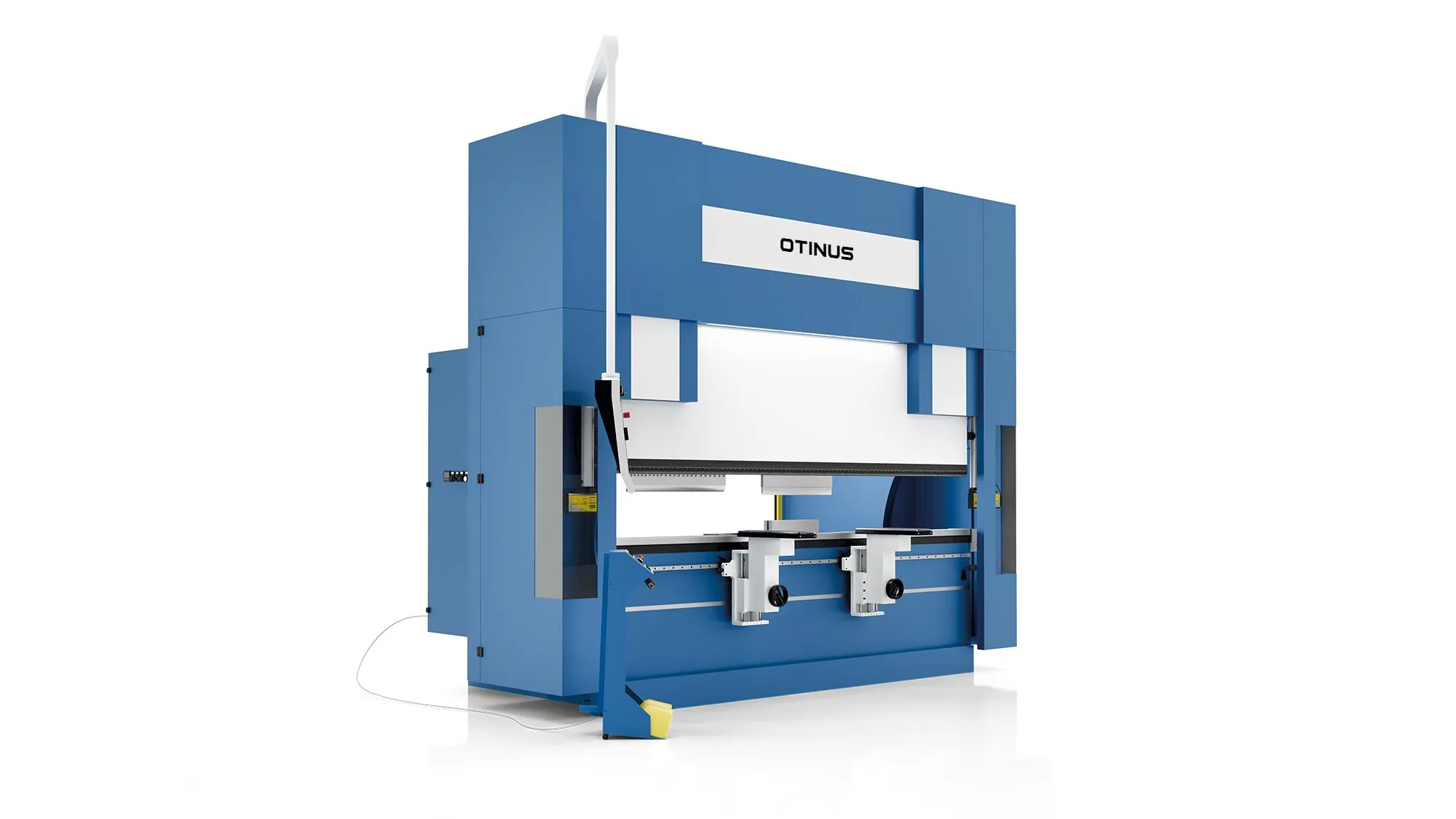

The 2023 Otinus PBO-3722-PRO-69T is a CNC press brake with dimensions of 232 x 110 x 128 in (5900 x 2795 x 3250 mm) and an approximate weight of 30,300 lb (13,600 kg). It provides a tonnage of 242 US ton (2150 kN) and is powered by a 25 HP (18.5 kW) motor. The machine features a bending length of 12 ft (3700 mm), a distance between side frames of 126 in (3200 mm), a 16 in (410 mm) stroke, a 24 in (615 mm) daylight opening, a throat gap of 20 in (510 mm), and a working table height of 38 in (965 mm). Performance speeds include an approach speed of 7.1 in/s (180 mm/s), a bending speed of 0.4 in/s (10 mm/s), and a return speed of 5.5 in/s (140 mm/s). Hydraulic operations are supported by a 77 gal (290 L) oil tank. Control is managed via a Delem DA-69T system with a 17 in color TFT touchscreen across Y1, Y2, X1, X2, R1, R2, Z1, Z2, and V axes. Tooling includes a Wila hydraulic NSCL-I-HC/UPB-PRO punch mounting with a maximum load capacity of 180 t/m and a Wila hydraulic NSCR-I-PRO-HC die mounting with motorized crowning. Safety is provided by AKAS II light curtains, and the machine includes a 24-month warranty.
