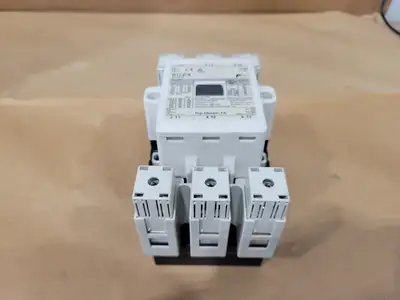

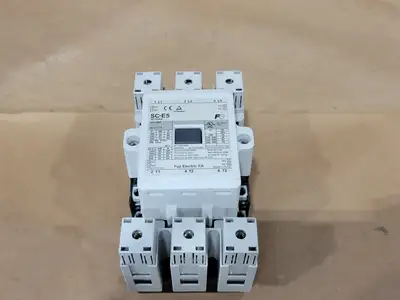

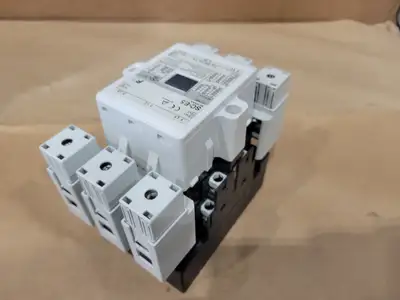

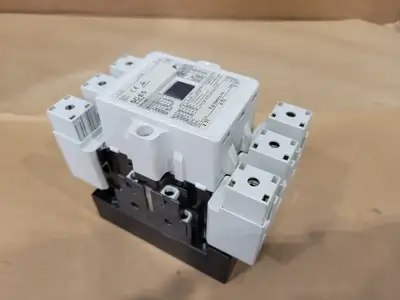

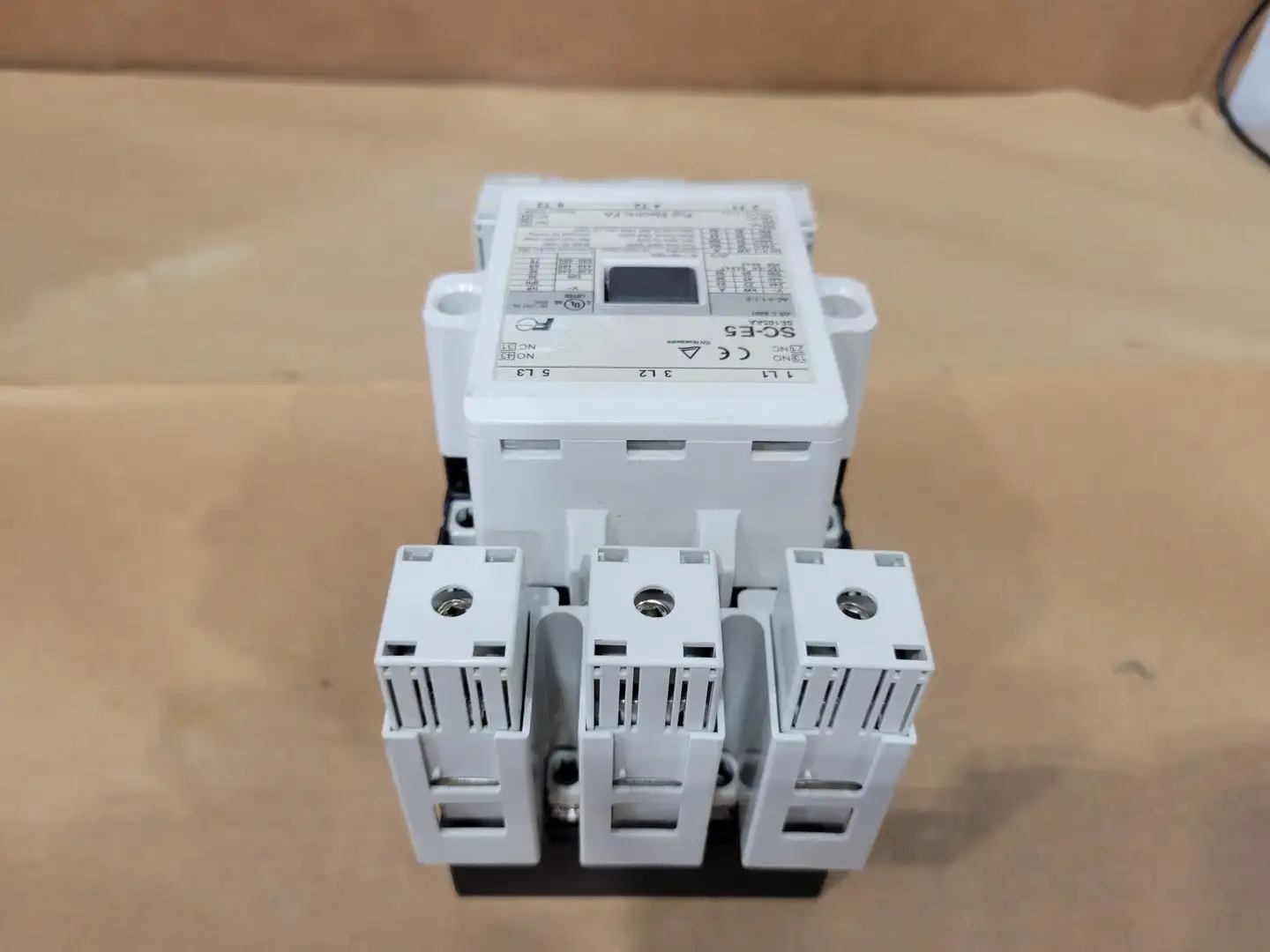

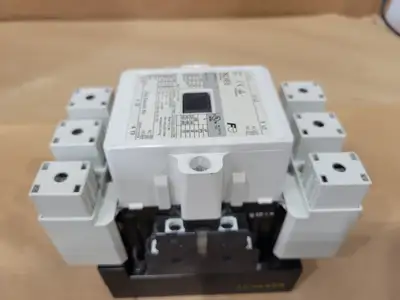

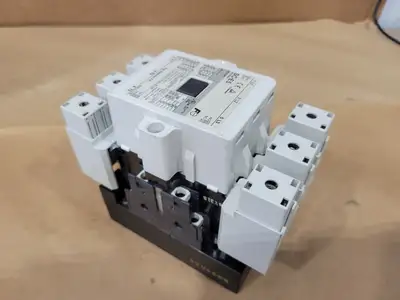

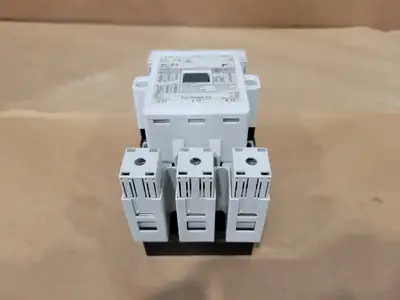

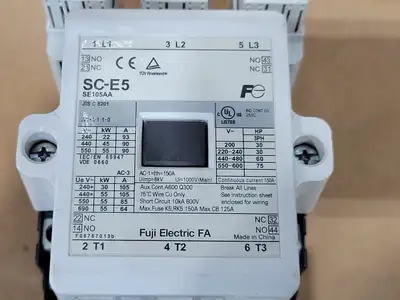

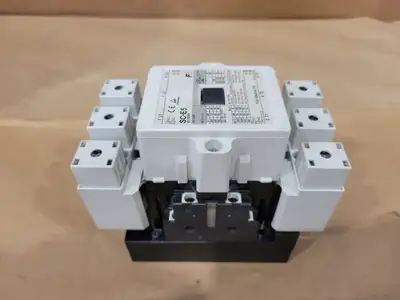

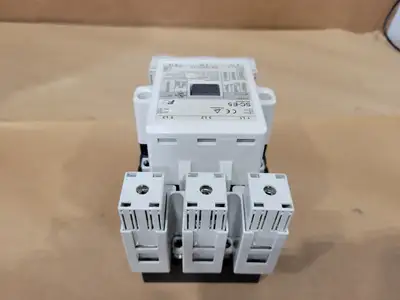

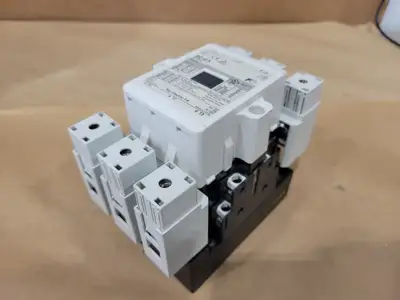

NEW FUJI ELECTRIC SC-E5

Horsepower: 75 hp
Voltage: 600 volts
Amps: 150 amps
Series: SC Series
Coil Type: SE105AA
Device Type: Magnetic Contactor
Number of Poles: 3
Main Terminals: L1, L2, L3 / T1, T2, T3

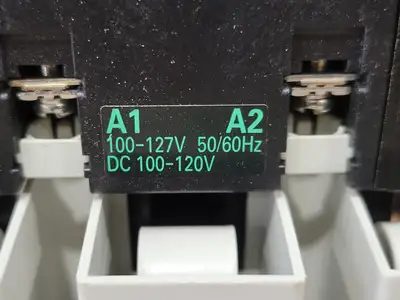

Control Coil Voltage (AC): 100-127 VAC
Frequency: 50/60 Hz
Control Coil Voltage (DC): 100-120 VDC
Continuous Current: 150 A
AC-1 Thermal Current: 150 A
Impulse Withstand Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): 1000 V
Utilization Category: AC-3
IEC Standard: IEC/EN 60947
JIS Standard: JIS C 8201
UL Listed: Yes
Auxiliary Contact Rating: A600 / Q300
Wire Rating: 75°C Copper Conductors Only
Short Circuit Rating: 10 kA @ 600 V
Maximum Fuse: Class K5/RK5 150 A
Maximum Circuit Breaker: 125 A
Horsepower Ratings (3-Phase):
200 V: 30 HP
220-240 V: 30 HP
440-480 V: 60 HP
550-600 V: 75 HP
Motor Ratings (IEC AC-3):
240 V: 22 kW / 93 A
440 V: 45 kW / 90 A
550 V: 55 kW / 90 A
Visible Auxiliary Contacts:
2 NO
2 NC
