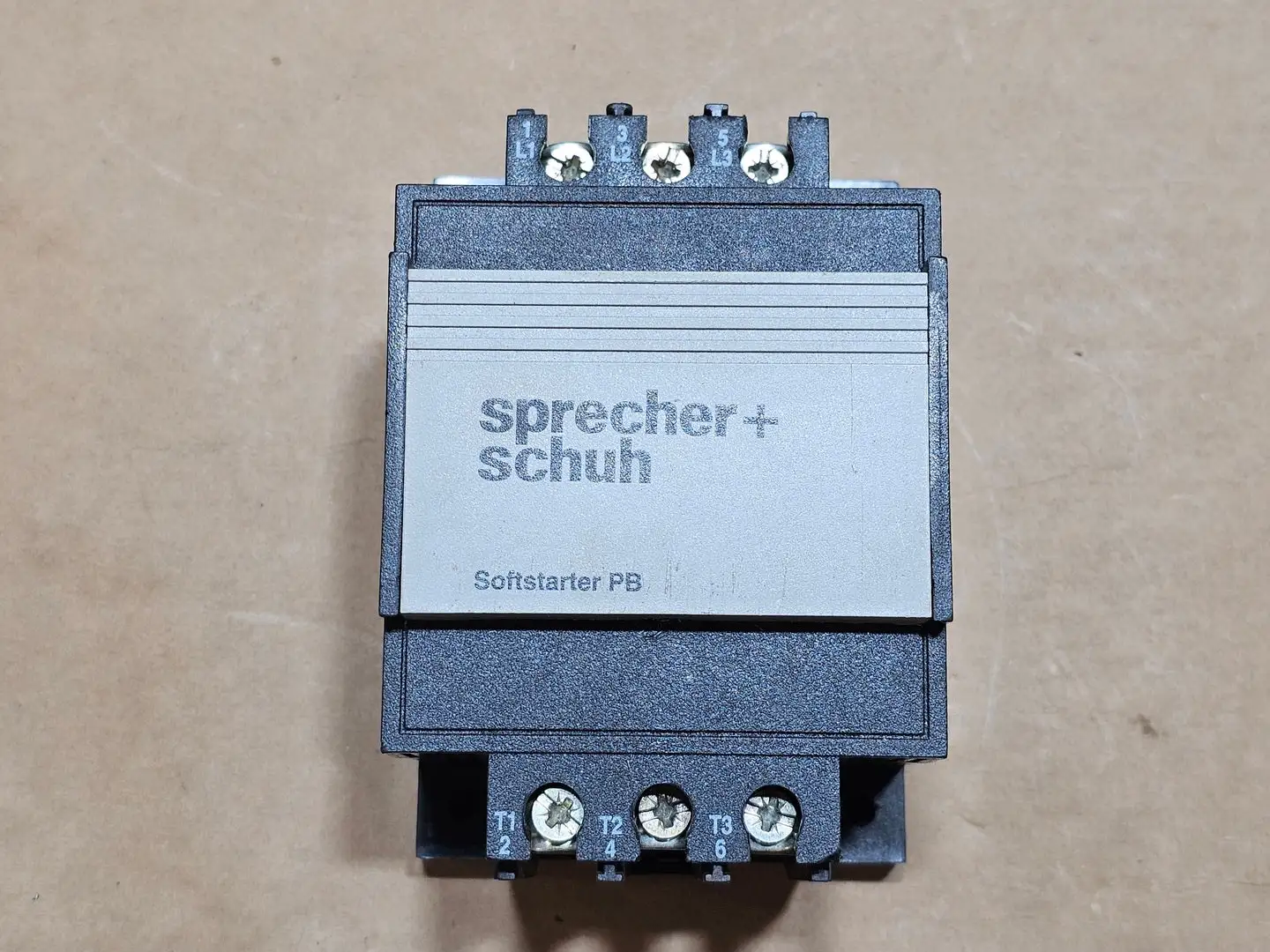

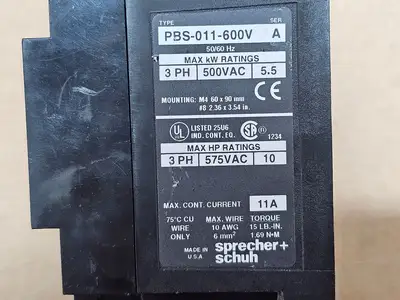

USED SPRECHER + SCHUH PBS-011-600V

Series: PB Softstarter
Serial Revision: A
Product Type: Solid-State Motor Soft Starter
Motor Phase: 3-Phase
Frequency: 50/60 Hz
Maximum Continuous Current: 11 A
Maximum Voltage Rating: 600 VAC
Maximum HP Rating: 10 HP @ 575 VAC
Maximum kW Rating: 5.5 kW @ 500 VAC
Power Terminals:
Line: L1, L2, L3
Load: T1, T2, T3
Maximum Wire Size: 10 AWG (6 mm2)
Terminal Torque: 15 lb-in (1.69 N-m)
Copper Conductors Only: Yes (75°C CU Wire Only)
Mounting Pattern: 60 x 90 mm
Approvals: UL Listed, CSA, CE
