USED 1982 GLEASON #6
Overview

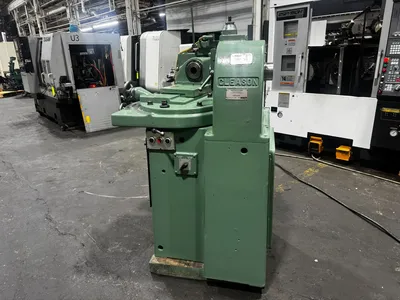

The Model 6 Gleason Gear Tester is a precision industrial machine built to inspect straight bevel, spiral bevel, and hypoid gear sets. It evaluates rolling qualities, tooth spacing, profiles, concentricity, and backlash.
Specs
Specifications:
Maximum Diameter of Gears: 7-1/2"
Range of Angles: 0 - 180 Degrees
Maximum Distance From Center of Pinion to Nose of Gear Spindle: 7"
Drive Spindle Speed: 1750 RPM
Diameter of Taper Hole, Large End: 1-51/64"
Taper Per Foot: 1/2"
Depth of Taper: 3"
Diameter of Hole Thru Taper: 1-5/16"
Floor Space: 37" x 42"
Net Weight: 2,100#
